Figure 8 Aerial Optical Cable Single Jacket / Steel Armor Stranded GYTC8S

Name: Figure 8 Aerial Optical Cable Single Jacket / Steel Armor Stranded GYTC8S
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTC8S
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTC8S

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Figure 8 Aerial Optical Cable, Single Jacket Aerial Optical Cable, GYTC8S Aerial Optical Cable


Warranty Period:	25 Years	Jacket Color:	Black
Jacket Material:	PE/LSZH	Fiber Type:	G.652D
Storage Temperature:	-40℃ To +70℃	Application:	Outdoor AREIAL
Fiber Count:	24	Water Blocking:	Water Swellable Tape
TYPE:	Fig.8 Shape	Outer Diameter:	12.5mm
Cable Weight:	200kg/km

Warranty Period:	25 Years
Jacket Color:	Black
Jacket Material:	PE/LSZH
Fiber Type:	G.652D
Storage Temperature:	-40℃ To +70℃
Application:	Outdoor AREIAL
Fiber Count:	24
Water Blocking:	Water Swellable Tape
TYPE:	Fig.8 Shape
Outer Diameter:	12.5mm
Cable Weight:	200kg/km

Figure 8 Aerial Optical Cable Single Jacket / Steel Armor Stranded GYTC8S

Aerial Optical Cable Figure-8 Single Jacket/Steel Armor Outdoor Stranded Loose Tube Self-Support Messenger GYTC8S

Outdoor Aerial Figure 8 cable

description

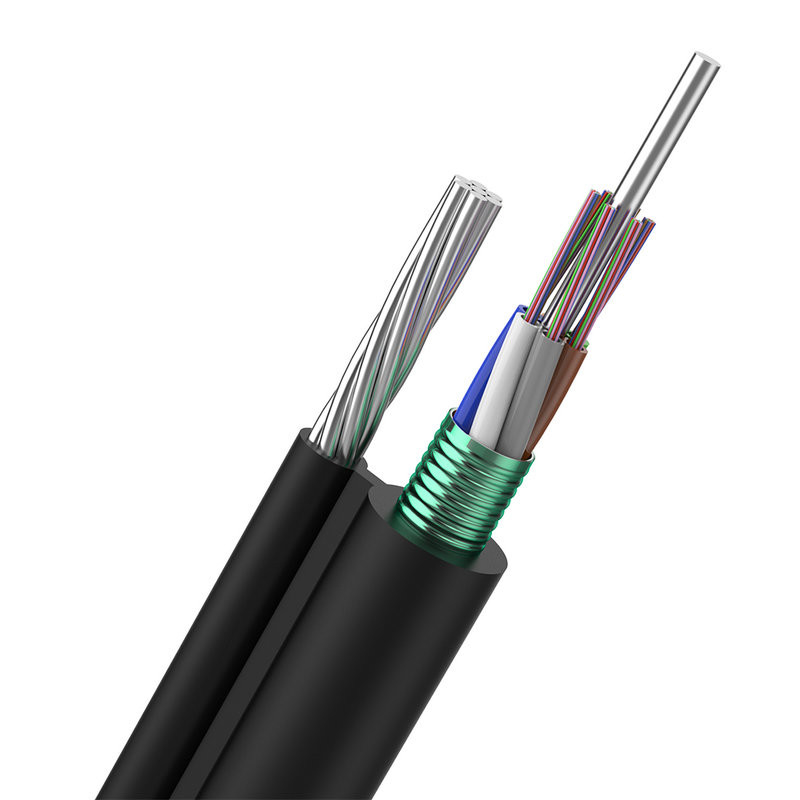

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes are stranded around the strength member into a compact and circular cable core. This part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be figure 8 structure.

Features

Good mechanical and temperature performance.
High strength loose tube that is hydrolysis resistant.
Special tube ﬁlling compound ensure a critical protection of ﬁber.
Crush resistance and ﬂexibility.
PSP enhancing moisture-proof.
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Long delivery length
Application:Self-supporting/Aerial

Technical data:

Numbers of fibers: 6-8,10-12,14-24,30-72

Design(Strength Member+Tube&Filler): Central Steel wires+Stranded Loose Multi-tube Cable

Fiber type: Single mode G.652.D

Strength Member: PSP

Loose Tube: PBT

Filler Rope: No

Water Blocking Layer(Material): Water Blocking tape

Additional Strength Member(Material):PSP

Outer Sheath: PE

Cable Diameter(±0.2mm): 6.8*9.2*18mm;7*9.5*18.5mm

Cable Weight(±10.0kg/km): 210-250kg

Attenuation coefficient : @ 1310nm≤0.35dB ; @ 1550nm ≤0.2dB

Min. bending radius Without Tension: 10.0×Cable-φ

Min. bending radius Under Maximum Tension: 20.0×Cable-φ

GYTC8S Cable Place Order Information

CABLE DATA

No. of cable			12	24
Fiber Model			G652D
Design (StrengthMember+Tube&Filler)			1+5
Central Strength Member		Material	FRP
		Diameter(±0.05)mm	1.5
Loose Tube		Material	PBT
		Diameter(±0.06)mm	1.7
		Thickness(±0.03)mm	0.32
		The Max.Core NO./Tube	6
Filler Rope		Material	PP
		Diameter(±0.06)mm	1.7
		NO.	3	1
Water Blocking Layer( Material)			Flooding Compound
Outer Sheath①		Material	PE
		Thickness(±0.1)mm	1.2
Outer Sheath②		Material	PE
		Thickness(±0.1)mm	1.8
Web		Material	PE
		Size(±0.1)mm	2.0*2.0
Messenger Wire		Material	Steel stranded
		Size(±0.1)mm	2.7mm(0.9mm×7)
Cable Diameter(±0.5)mm(W×H)			8.5x15.2
Cable Weight(±10)kg/km			100
Min. bending radius	Without Tension		10.0×Cable-φ
	Under Maximum Tension		20.0×Cable-φ
Temperature range (℃)	Installation		-20~+60
	Transport&Storage		-40~+70
	Operation		-40~+70

Cable Marking&Fibers Colors

COMPANY Fiber cable name N*cores G.652D 2024 XXXXm

*The marking is printed every 1 meter;
**”G.652D” means ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber..

Also can according to client cable marking.
