Highlight:
12 cores duct fiber optic cable
, 12 cores outdoor fiber optic cable
fiber optical cable GYFXTY single mode double PFR strength member hight quality

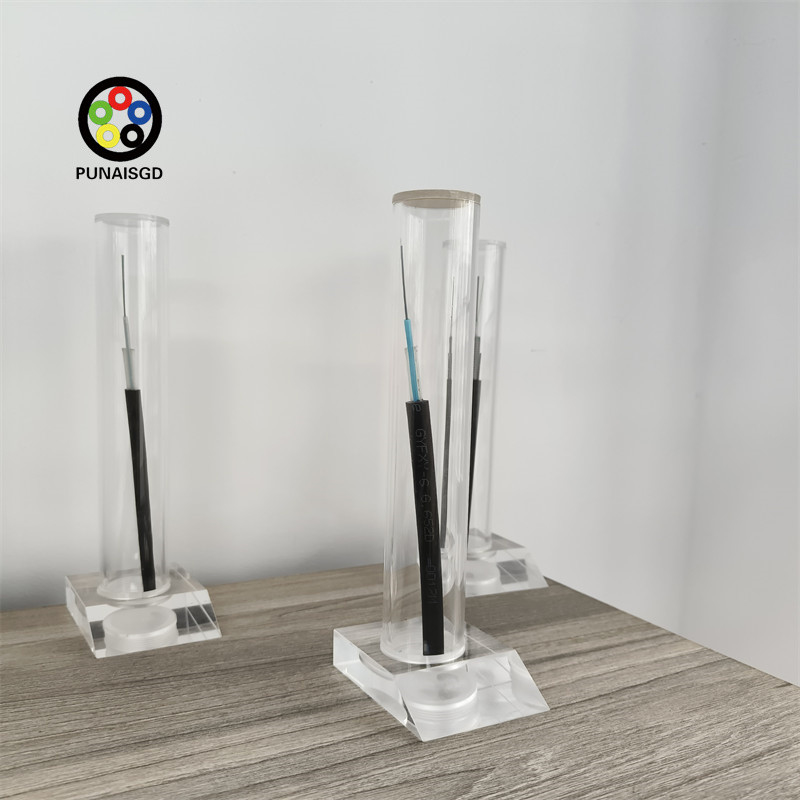

GYFXTY Fiber Cable
Cables designed for outdoor drops, with FRP rods as their structural members, are offered in fiber
counts ranging from 2 to 12. They are compliant with the ITU-T G.652D standard and adhere fully
to the IEC specifications.
APPLICATIONS
· Long distance and local area network(LAN) communication
· Aerial & conduit/duct application
· The dedicate design of aramid quantity and stranding process can satisfy the demand on
various spans
Product Details
FEATURE
· Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
transmission property
· Two parallel steel wire/FRP strength members ensure good performance of crush resistance
to protect fiber
· Simple structure, light weight and high practicability
· Novel flute design, easily strip and splice, simplify the installation and maintenance
· Low smoke, zero halogen and flame retardant sheath
Product Paramenters
| Fiber count |
Nominal Diameter(mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (kg/mm) |
Allowable Crush Resistance(N/100mm) |
Aerial install span with 1%sag |
| Short Term |
Long Term |
Short Term |
Long Term |
NESC Light |
NESC Medium |
NESC Heavy |
| 2~12 |
6.5 |
35 |
1000 |
400 |
1000 |
300 |
80meters |
50meters |
30meters |
| 14-24 |
7.0 |
40 |
1200 |
500 |
1000 |
300 |
70meters |
40meters |
20meter |
Learn more about our factory
FAQ
1. Why choose us?
We are manufacturer, Located in Guangzhou, China, started from 2011, sell to Domestic Market(100.00%).
There are total about 11-50 people in our factory.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.Can you send products to my country?
Sure, we can. If you do not have your own ship forwarder, we can help you.
4. Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price
and make samples for you.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
