Highlight:
armoured duct fiber optic cable
, armoured outdoor fiber optic cable
GYXTW outdoor fiber optic cable Manufacture price outdoor armored cable
Product Description

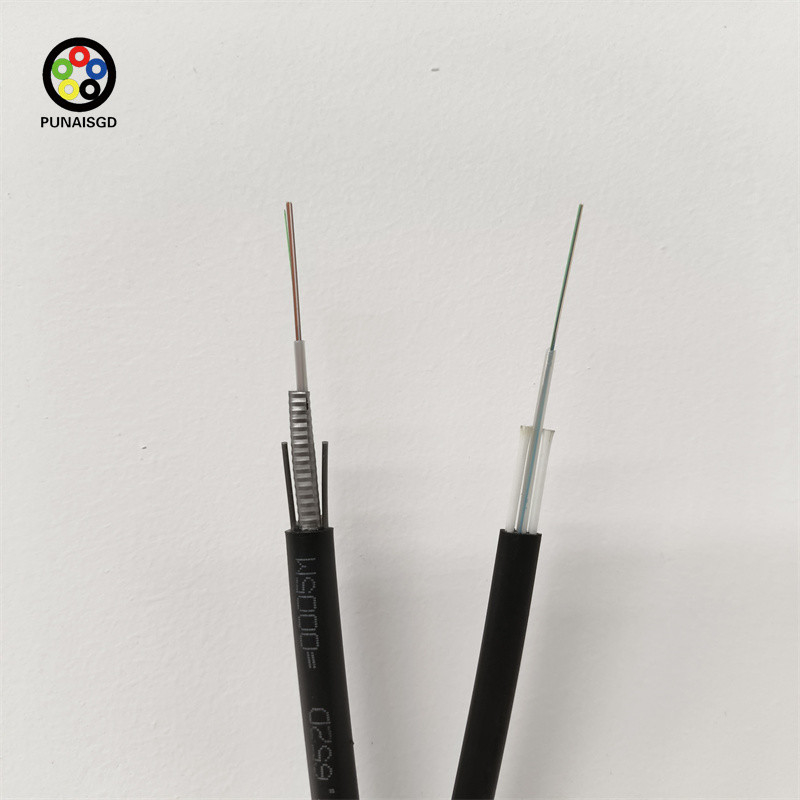

Single-Jacketed Armored Fiber Optic Cable: This cable is designed with a solitary uni-tube that encases
a loose buffer tube for fibers, followed by an armoring and jacketing process that ensures full-scale
safeguarding.
Strengthened Core with Steel Tape and Polyethylene: The cable's central region is fortified by undulating
steel tape, optimizing its strength, and then it's enveloped in a black polyethylene sheath to shield against
environmental elements.
Tension Management with Embedded Steel Wires: The inclusion of two steel wires within the cable's
structure is instrumental in achieving the optimal tension, guaranteeing the cable's steadfastness and
operational proficiency.
Product Construction
Product Construction
Fiber:
2-24 fibers
Uni-loose tube gel-filled
Armor:
Corrugated steel tape
Strength Member:
Embedded steel wire
OuterJacket:
Black UV-and moisture-resistant polyethylene (PE).
Features
Fiber Safeguarding with Gel-Enriched Uni-Tube: The cable is expertly crafted with a gel-enriched
uni-tube, delivering unparalleled fiber protection, enveloping the fibers in a cocoon of security.
Armored with Steel Tape for Fortified Security: Clad in steel tape armor, the cable is fortified against
the threats of rodent gnawing and mechanical stress, thus ensuring enduring stability.
Intrinsic Steel Wires for Tensile and Crush Endurance: The intrinsic steel wires woven into the
cable's structure offer the essential tensile fortitude and crush resistance, ensuring steadfast
performance across diverse applications.
Sleek Design for Seamless Installation: The cable's streamlined design facilitates a hassle-free
installation process, adaptable to a multitude of installation environments.
Constructed for Climate and Weather Resilience: Engineered with UV and moisture resistance,
the cable maintains its operational integrity in the face of diverse climatic conditions
Product Paramenters
| Fiber count |
Structure |
Fibers per tube |
Loose tube diameter(mm) |
CSM diameter/pad diameter (mm) |
Nominal Thickness of outer jacket (mnm) |
Cable diameter/ Height (m) |
Cableweight
(kg/km)
|
| 2 |
1 |
2 |
1.7±0.1 |
1.0/1.0 |
1.6 |
8.0±0.2 |
57 |
| 4 |
1 |
4 |
1.85±0.1 |
1.0/1.0 |
1.6 |
8.0±0.2 |
58 |
| 6 |
1 |
6 |
1.9±0.1 |
1.0/1.0 |
1.6 |
8.0±0.2 |
58 |
| 8 |
1 |
8 |
2.0±0.1 |
1.0/1.0 |
1.6 |
8.0±0.2 |
60 |
| 12 |
1 |
12 |
2.2±0.1 |
1.0/1.0 |
1.6 |
8.0±0.2 |
60 |
