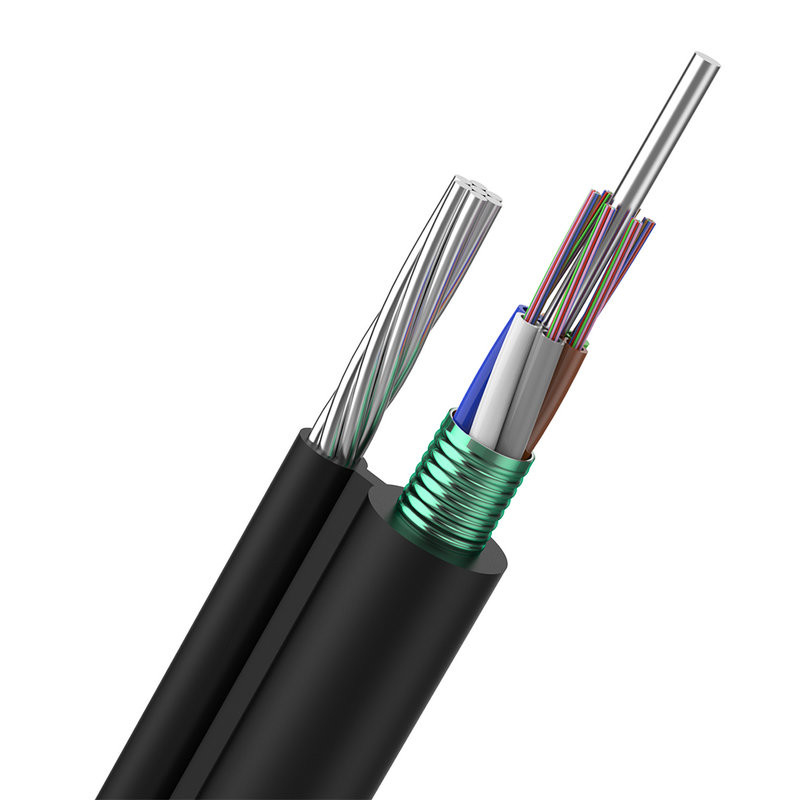

Figure 8 Aerial Optical Cable Single Jacket / Steel Armor Stranded GYTC8S

Name: Figure 8 Aerial Optical Cable Single Jacket / Steel Armor Stranded GYTC8S
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTC8S
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTC8S

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                            Figure 8 Aerial Optical Cable, Single Jacket Aerial Optical Cable, GYTC8S Aerial Optical Cable


Warranty Period:	25 Years	Jacket Color:	Black
Jacket Material:	PE/LSZH	Fiber Type:	G.652D
Storage Temperature:	-40℃ To +70℃	Application:	Outdoor AREIAL
Fiber Count:	24	Water Blocking:	Water Swellable Tape
TYPE:	Fig.8 Shape	Outer Diameter:	12.5mm
Cable Weight:	200kg/km

Warranty Period:	25 Years
Jacket Color:	Black
Jacket Material:	PE/LSZH
Fiber Type:	G.652D
Storage Temperature:	-40℃ To +70℃
Application:	Outdoor AREIAL
Fiber Count:	24
Water Blocking:	Water Swellable Tape
TYPE:	Fig.8 Shape
Outer Diameter:	12.5mm
Cable Weight:	200kg/km

Figure 8 Aerial Optical Cable Single Jacket / Steel Armor Stranded GYTC8S

Aerial Optical Cable Figure-8 Single Jacket/Steel Armor Outdoor Stranded Loose Tube Self-Support Messenger GYTC8S

Outdoor Aerial Figure 8 cable

description

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes are stranded around the strength member into a compact and circular cable core. This part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be figure 8 structure.

Features

Good mechanical and temperature performance.
High strength loose tube that is hydrolysis resistant.
Special tube ﬁlling compound ensure a critical protection of ﬁber.
Crush resistance and ﬂexibility.
PSP enhancing moisture-proof.
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Long delivery length
Application:Self-supporting/Aerial

Technical data:

Numbers of fibers: 6-8,10-12,14-24,30-72

Design(Strength Member+Tube&Filler): Central Steel wires+Stranded Loose Multi-tube Cable

Fiber type: Single mode G.652.D

Strength Member: PSP

Loose Tube: PBT

Filler Rope: No

Water Blocking Layer(Material): Water Blocking tape

Additional Strength Member(Material):PSP

Outer Sheath: PE

Cable Diameter(±0.2mm): 6.8*9.2*18mm;7*9.5*18.5mm

Cable Weight(±10.0kg/km): 210-250kg

Attenuation coefficient : @ 1310nm≤0.35dB ; @ 1550nm ≤0.2dB

Min. bending radius Without Tension: 10.0×Cable-φ

Min. bending radius Under Maximum Tension: 20.0×Cable-φ

GYTC8S Cable Place Order Information

CABLE DATA

No. of cable			12	24
Fiber Model			G652D
Design (StrengthMember+Tube&Filler)			1+5
Central Strength Member		Material	FRP
		Diameter(±0.05)mm	1.5
Loose Tube		Material	PBT
		Diameter(±0.06)mm	1.7
		Thickness(±0.03)mm	0.32
		The Max.Core NO./Tube	6
Filler Rope		Material	PP
		Diameter(±0.06)mm	1.7
		NO.	3	1
Water Blocking Layer( Material)			Flooding Compound
Outer Sheath①		Material	PE
		Thickness(±0.1)mm	1.2
Outer Sheath②		Material	PE
		Thickness(±0.1)mm	1.8
Web		Material	PE
		Size(±0.1)mm	2.0*2.0
Messenger Wire		Material	Steel stranded
		Size(±0.1)mm	2.7mm(0.9mm×7)
Cable Diameter(±0.5)mm(W×H)			8.5x15.2
Cable Weight(±10)kg/km			100
Min. bending radius	Without Tension		10.0×Cable-φ
	Under Maximum Tension		20.0×Cable-φ
Temperature range (℃)	Installation		-20~+60
	Transport&Storage		-40~+70
	Operation		-40~+70

Cable Marking&Fibers Colors

COMPANY Fiber cable name N*cores G.652D 2024 XXXXm

*The marking is printed every 1 meter;
**”G.652D” means ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber..

Also can according to client cable marking.

Figure 8 Aerial Optical Cable Single Jacket / Steel Armor Stranded GYTC8S 3

Production Supplier Profile

How do I place an OEM or customized order?
1) Send your purchase intention to our email: cotton@fibercablepuls.com
2) Our sales team will contact you to confirm the product specification, packaging, printing, quantity,

and other specific information.
3) Sign the contract or Proforma Invoice.
4) After receiving your deposit, we will start to arrange the production.

5) 2 weeks before the completion of production, we will notify you to start contacting shipping.
