24F ADSS Fiber Optic Cable PE Double Sheath Aerial Installation

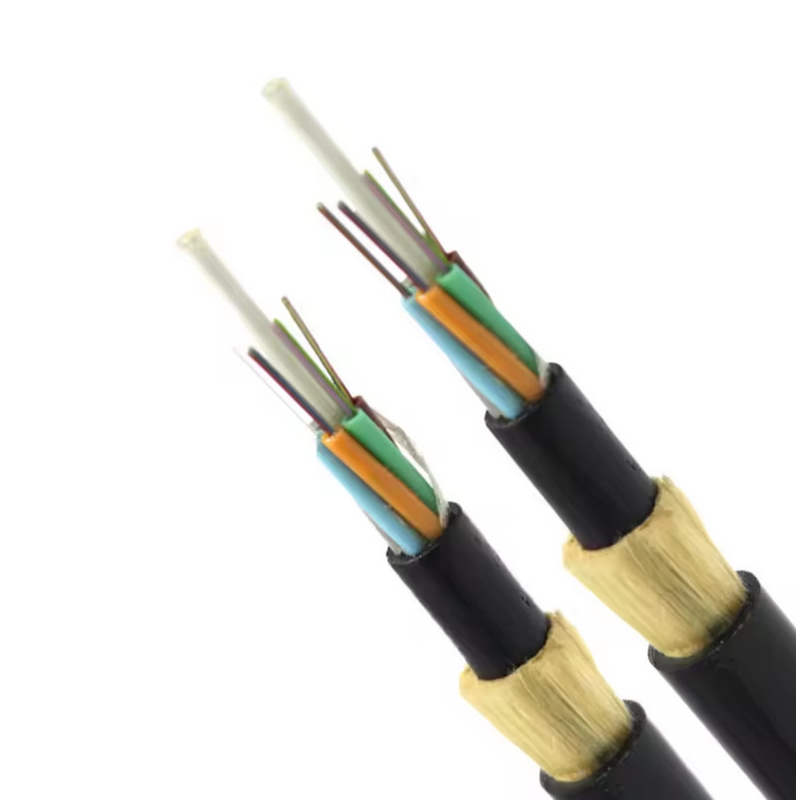

ADSS cable is loose tube stranded with 250μm fibers positioned in high modulus plastic tubes. The tubes are filled with water-resistant compound and stranded around an FRP central strength member. The cable core is covered with PE inner sheath, reinforced with aramid yarns, and completed with PE or AT outer sheath.

• High tensile strength
• All dielectric structure with semi-dry core design
• Small diameter and light weight
• Self-supporting aerial installation

COMPANY Fiber cable name N*cores G.652D 2024 XXXXm

The marking is printed every 1 meter. "G.652D" means ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber.

Custom marking available according to client requirements.

• Single outer jacket layer construction
• Lightweight design
• Cost-efficient solution
• Sufficient protection against UV, moisture, and minor abrasions
• Ideal for environments with lower mechanical damage risk

• Dual-layer sheathing (inner and outer jacket)
• Enhanced mechanical protection
• Superior durability against abrasion and physical damage
• Ideal for harsh environments with severe weather or dense vegetation

1. Send purchase intention to cotton@fibercablepuls.com
2. Our sales team will confirm product specifications and requirements
3. Sign contract or Proforma Invoice
4. Production begins after deposit receipt
5. Shipping coordination begins 2 weeks before production completion
