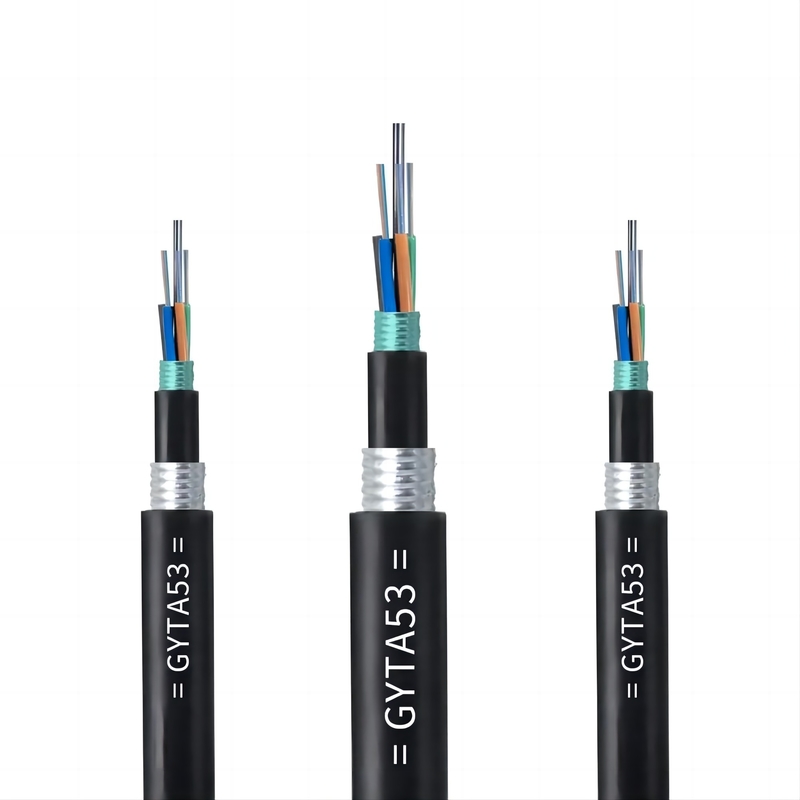

Name: GYTA53 Armoured Direct Buried Fiber Optic Cable 12-48 Cores
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTA53
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTA53

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                            Fibre Optical Direct Buried Cable, Direct Buried Cable 48 Cores, Underground Armoured Fibre Cable


Warranty Period:	25 Years	Jacket Color:	Black
Jacket Material:	PE/LSZH	Fiber Type:	G.652D
Crush Resistance:	≥ 1000N/100mm	Tensile Strength:	Long Term: 600N, Short Term: 1500N
Storage Temperature:	-40℃ To +70℃	Armored Type:	Steel Tape/Aluminum
Application:	Outdoor Duct Installation	Installation Method:	Direct Buried
Fiber Count:	2-288	Water Blocking:	Water Swellable Tape
Armor Type:	Steel Tape/ALUMINUM TAPE

Warranty Period:	25 Years
Jacket Color:	Black
Jacket Material:	PE/LSZH
Fiber Type:	G.652D
Crush Resistance:	≥ 1000N/100mm
Tensile Strength:	Long Term: 600N, Short Term: 1500N
Storage Temperature:	-40℃ To +70℃
Armored Type:	Steel Tape/Aluminum
Application:	Outdoor Duct Installation
Installation Method:	Direct Buried
Fiber Count:	2-288
Water Blocking:	Water Swellable Tape
Armor Type:	Steel Tape/ALUMINUM TAPE

GYTA53 Armoured Direct Buried Fiber Optic Cable 12-48 Cores

Underground Fibre Optical Direct Buried Cable Armoured GYTA53 12 24 48 Cores

Product Specifications

Attribute	Value
Warranty Period	25 years
Jacket Color	Black
Jacket Material	PE/LSZH
Fiber Type	G.652D
Crush Resistance	≥ 1000N/100mm
Tensile Strength	Long Term: 600N, Short Term: 1500N
Storage Temperature	-40℃ to +70℃
Armored Type	Steel Tape/Aluminum
Application	Outdoor duct installation
Installation Method	Direct Buried
Fiber Count	2-288
Water Blocking	Water Swellable Tape

Product Features

Adopts "SZ" two-way layer twisting technology
Filled with water-blocking gel for full-section water protection
Aluminum tape with reliable lap bonding, high strength and torsion resistance
Excellent environmental performance (-40ºC to +60ºC operating range)
Suitable for overhead, pipeline, and direct burial installation
Double-sheathed double-armoured structure with superior crush resistance
Rodent protection and anti-UV PE jacket

Applications

Direct burial installations
Connecting communication equipment
Multi-core wiring systems in data centers

GYTA53 Cable Technical Specifications

Cable Dimensions

Fiber Count	Fibers Per Tube	Loose Tube Diameter	CSM Diameter	Outer Jacket Thickness	Cable Diameter	Cable Weight
4	4	1.8±0.1	1.4/1.4	1.6	11.5±0.2	140
6	6	1.9±0.1	1.4/1.4	1.6	11.5±0.2	140
8	8	1.9±0.1	1.4/1.4	1.6	11.5±0.2	140
12	6	1.9±0.1	1.4/1.4	1.6	11.5±0.2	140
24	6	1.9±0.1	1.4/1.4	1.6	11.5±0.2	140
36	12	1.9±0.1	1.6/1.6	1.6	11.5±0.2	140
48	12	2.2±0.1	1.6/1.6	1.6	12.2±0.2	140
72	12	2.2±0.1	1.6/3.5	1.6	12.2±0.2	150
96	12	2.2±0.1	2.0/2.0	1.6	12.2±0.2	160
144	12	2.2±0.1	2.0/6.4	1.8	13.8±0.2	180

Fiber Parameters (G.652D)

Parameter	Wavelength	Unit	Specification
Mode Field Diameter	1310nm	μm	9.2±0.4
Mode Field Diameter	1550nm	μm	10.4±0.8
Cladding Diameter	-	μm	125.0±1.0
Cladding Non-Circularity	-	%	≤1.0
Core-Cladding Concentricity Error	-	μm	≤0.5
Coating Diameter	-	μm	245±5
Coating Non-Circularity	-	%	≤6.0
Cladding-Coating Concentricity Error	-	μm	≤12.0
Cable Cutoff Wavelength	-	nm	λcc≤1260
Attenuation (max.)	1310nm	dB/km	≤0.35
Attenuation (max.)	1550nm	dB/km	≤0.21
Attenuation (max.)	1380nm	dB/km	≤0.35
Attenuation (max.)	1625nm	dB/km	≤0.24

Cable Marking & Identification

Standard marking: COMPANY Fiber cable name N*cores G.652D 2024 XXXXm

Marking is printed every 1 meter. "G.652D" indicates ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber.

Custom marking available according to client requirements.

Ordering Information

How to Place an OEM or Customized Order

Send your purchase requirements to: cotton@fibercablepuls.com
Our sales team will confirm product specifications, packaging, and other details
Sign contract or Proforma Invoice
Production begins after deposit receipt
Shipping arrangements coordinated 2 weeks before production completion
