The tension clamp is intended for turning angle, continuing and terminal connecting.
The helical aluminum-clad steel rod has strong tensile strength, no concentrative stress,
plays a role to protect cable and assist reducing vibration.
The whole set of cable tension hardware contains preformed rod, matching connection hardware.
The holding strength of clamp is no less than 95% of rated tensile strength, quick and easy to install,
cut construction cost, suitable for a span<100m.
Preformed Tension Clamp are designed to connect ADSS cables and poles/towers .
Armor rods can provide protection and cushioning to the ADSS cables.
The special design of Preformed rods makes ensure that Tension Clamps can't cause undue stress
to the ADSS cables, so as to ensure the normal lifetime of cables system.
Structure and Raw Material:
Shackle--Hot dip galvanized steel.Shackle is connected with fastening clamp on tensile pole (or tower).
Twisted Chain Link--Hot dip galvanized steel. Twisted Chain Link is intended for connecting
U- Shackle and Clevis Thimble.
Thimble---Hot dip galvanized cast steel. Thimble is plugged in shackle of Tension Clamp for protection
and connection.
Armor Rods----- Aluminum clad steel wire. Armor Rods increase friction with a layer of particle emery inside to cables.
Rods are assembled into four subsets in workshop which reduce misalignment errors and speeds installation.
The ends are bent outward to provide stress relief at the critical cable departure areas.

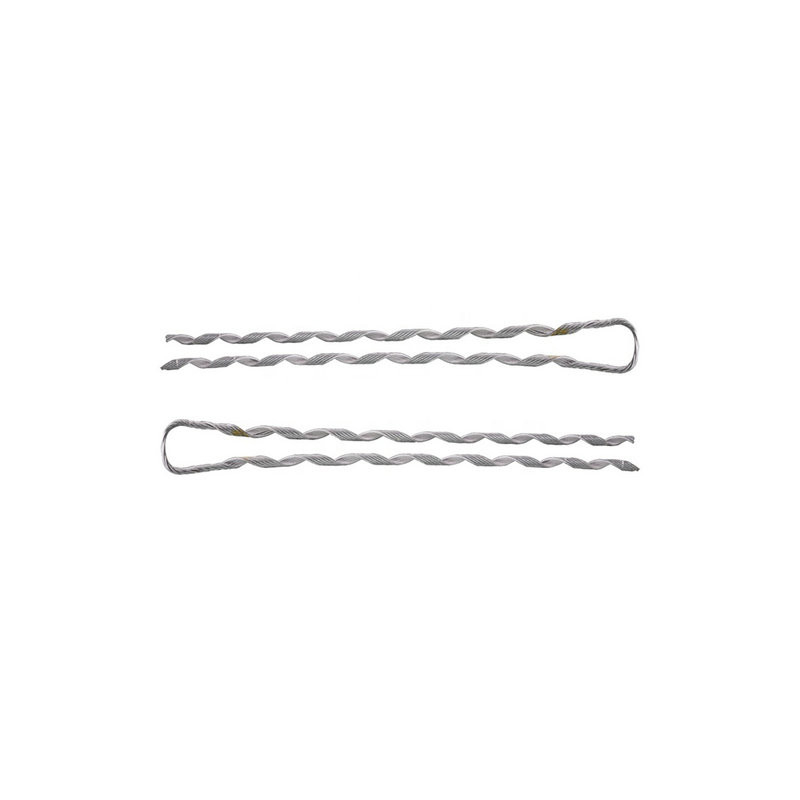

Preformed Dead End -- Preformed Dead End are made of hot dip galvanized steel wire or aluminum clad steel wire,
it is assembled into one subset with a layer of firm emery inside in workshop,
in order to increase gripping strength of Tension Clamps while decreasing side pressure
