Name: 48 Core ADSS Fiber Optic Cable G652D Single Mode Aerial
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS-SJ-100M
Price: 190 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ADSS-SJ-100M

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: 190

Packaging Details: Wooden Spool ，Φ1200*750mm

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                            G652D Aerial Fiber Optic Cable, Aerial Fiber Optic Cable 144 Core, Single Mode G652D ADSS Fiber Cable


Fiber Type:	G.652D	Metal:	No Metal
Function:	Delivery Signal Light	Insertion Loss:	≤0.30dB
Tube:	Multi Loose Tube	Operating Temp:	-20℃~+60℃
Istallation:	Aerial	Cable Diameter:	10.0mm±0.5mm
Sheath:	PE	Length:	2/3/4km One Drum
Span:	100/120/200/300/400 Customized	Core Count:	48 Core
Item Name:	96core ADSS Fiber Optic Cable

Fiber Type:	G.652D
Metal:	No Metal
Function:	Delivery Signal Light
Insertion Loss:	≤0.30dB
Tube:	Multi Loose Tube
Operating Temp:	-20℃~+60℃
Istallation:	Aerial
Cable Diameter:	10.0mm±0.5mm
Sheath:	PE
Length:	2/3/4km One Drum
Span:	100/120/200/300/400 Customized
Core Count:	48 Core
Item Name:	96core ADSS Fiber Optic Cable

48 Core ADSS Fiber Optic Cable G652D Single Mode Aerial

ADSS Outdoor Aerial Fiber Optic Cable Single Mode G652D 12 24 48 96 144 Core

Product Specifications

Attribute	Value
Fiber Type	G.652D
Metal	No metal
Function	Delivery signal light
Insertion Loss	≤0.30dB
Tube	Multi Loose Tube
Operating Temp	-20℃~+60℃
Installation	Aerial
Cable Diameter	10.0mm±0.5mm
Sheath	PE
Length	2/3/4km one drum
Span	100/120/200/300/400 Customized
Core Count	48 core

Product Description

All Dielectric 12 24 48 96 144 Core Single Mode G652D ADSS Outdoor Fiber Optic Cable

Small diameter, light weight with spans up to 1500m, adding minimal load to towers
Exceptional tensile strength exceeding 90KN
Non-metallic structure provides excellent insulation and lightning protection
Consistent performance across spans with reliable emergency response capabilities
Superior resistance to gunshot damage and environmental erosion
Designed for operation in extreme weather conditions
Can operate without electrical interruption
Loose tube design with non-metallic reinforcement for high flexibility in electric fields ≤25KV/m

Key Features

High tensile strength construction
All dielectric structure with semi-dry core design
Compact diameter and lightweight
Self-supporting aerial installation

Ordering Specifications

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/Height (mm)	Cable weight (kg/km)
4	1+6	4	1.9±0.1	2.0/2.0	1.6	9.5±0.2	80
6	1+6	6	2.0±0.1	2.0/2.0	1.6	9.8±0.3	80
8	1+6	4	1.9±0.1	2.0/2.0	1.6	9.8±0.3	80
12	1+6	6	2.1±0.1	2.0/2.0	1.6	9.8±0.3	80
24	1+6	12	2.1±0.1	2.0/2.0	1.6	9.8±0.3	80
36	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
48	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.0±0.3	85
96	1+8	12	2.2±0.1	2.0/3.4	1.7	11.8±0.3	123
144	1+12	12	2.2±0.1	3.0/6.2	1.7	14.5±0.3	175

Fiber Parameters (G.652D)

No.	Items	Unit	Specification
1	Mode Field Diameter (1310nm)	μm	9.2±0.4
1	Mode Field Diameter (1550nm)	μm	10.4±0.8
2	Cladding Diameter	μm	125.0±1.0
3	Cladding Non-Circularity	%	≤1.0
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5
6	Coating Non-Circularity	%	≤6.0
7	Cladding-Coating Concentricity Error	μm	≤12.0
8	Cable Cutoff Wavelength	nm	λcc≤1260
9	Attenuation(max.) (1310nm)	dB/km	≤0.35
9	Attenuation(max.) (1550nm)	dB/km	≤0.21
9	Attenuation(max.) (1380nm)	dB/km	≤0.35
9	Attenuation(max.) (1625nm)	dB/km	≤0.24
10	Attenuation and wavelength (1310nm 1285-1330nm)	dB/km	≤0.04
10	Attenuation and wavelength (1550nm 1525-1575nm)	dB/km	≤0.03
10	Attenuation and wavelength (1550nm 1480-1580nm)	dB/km	≤0.05
11	Dispersion (1288-1339nm)	ps/(nm.km)	≥-3.5, ≤3.5
11	Dispersion (1271-1360nm)	ps/(nm.km)	≥-5.3, ≤5.3
11	Dispersion (1480-1580nm)	ps/(nm.km)	≤20
11	Dispersion (1550nm)	ps/(nm.km)	≤18
12	Zero dispersion wavelength	Nm	1300-1324
13	Zero dispersion slope	ps/(nm2•km)	≤0.092
14	Typical value	ps/(nm2•km)	0.04
15	Largest individual fiber	Ps/√ km	0.2
16	Link design values	Ps/√ km	0.1
17	Two way average (1310nm-1550)	dB	≤0.01

Cable Marking & Fiber Colors

COMPANY Fiber cable name N*cores G.652D 2024 XXXXm

*The marking is printed every 1 meter

**"G.652D" means ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber

Custom marking available according to client requirements

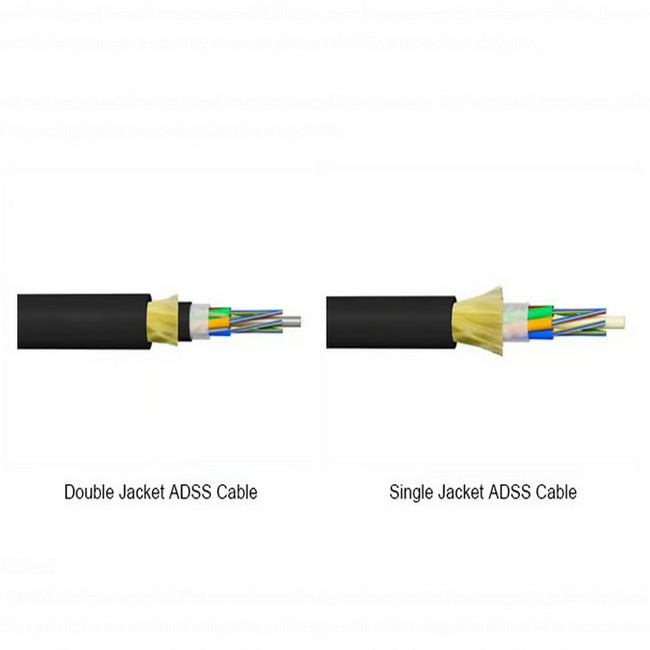

ADSS Cable Types

Single Sheath ADSS Cable

Construction: Features a single outer jacket layer
Weight: Lighter than double sheath variants
Applications: Ideal for lower risk environments where cable weight is critical
Cost: More economical due to reduced material usage
Protection: Effective against UV rays, moisture, and minor abrasions

Double Sheath ADSS Cable

Construction: Dual-layer sheathing (inner and outer jacket)
Protection: Enhanced mechanical protection for harsh environments
Durability: Superior resistance to abrasion, rodents, and physical damage
Weight: Heavier than single sheath cables
Applications: Recommended for areas with mechanical stress or severe weather

Optical Fiber Hardware for ADSS Cables

How to Place an OEM or Customized Order

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications, packaging, and other requirements
Sign the contract or Proforma Invoice
After receiving your deposit, we will begin production
We will notify you 2 weeks before production completion to arrange shipping
