Outdoor Aerial Fiber Optic Cable 12 Wires Stranded For Telecommunications

Name: Outdoor Aerial Fiber Optic Cable 12 Wires Stranded For Telecommunications
Brand: guangzhou fiber cablepuls co ltd
SKU: GYFTY
Price: 190 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYFTY

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: 190

Packaging Details: Wooden Spool ，Φ1200*750mm

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Aerial Fiber Optic Cable 12 Wires, Stranded Aerial Fiber Optic Cable, Telecommunications Aerial Fiber Optic Cable


Temperature Range:	-40 ~ +70℃	Installation Temperature:	-10°C To +50°C
Length:	As Required	Fiber Per Tube:	4/6/8/12/24F
Application:	Outdoor Aerial, FTTH , Access Network	Life Time:	More Than 20 Years
Central Strengthen Member:	FRP	Central Strength:	FRP&Steel Wire
Jacket Color:	Black/red/blue	Fiber Count:	24
Number Of Conductors:	48 Core	Life Expectancy:	Over 30 Years
Sample Status:	In Stock	Storage Temperature:	-40℃~+85℃
Loose Tube:	Stranded Loose Tube

Temperature Range:	-40 ~ +70℃
Installation Temperature:	-10°C To +50°C
Length:	As Required
Fiber Per Tube:	4/6/8/12/24F
Application:	Outdoor Aerial, FTTH , Access Network
Life Time:	More Than 20 Years
Central Strengthen Member:	FRP
Central Strength:	FRP&Steel Wire
Jacket Color:	Black/red/blue
Fiber Count:	24
Number Of Conductors:	48 Core
Life Expectancy:	Over 30 Years
Sample Status:	In Stock
Storage Temperature:	-40℃~+85℃
Loose Tube:	Stranded Loose Tube

Outdoor Aerial Fiber Optic Cable 12 Wires Stranded For Telecommunications

12 Wires Fiber Optic Cable

Product Description:

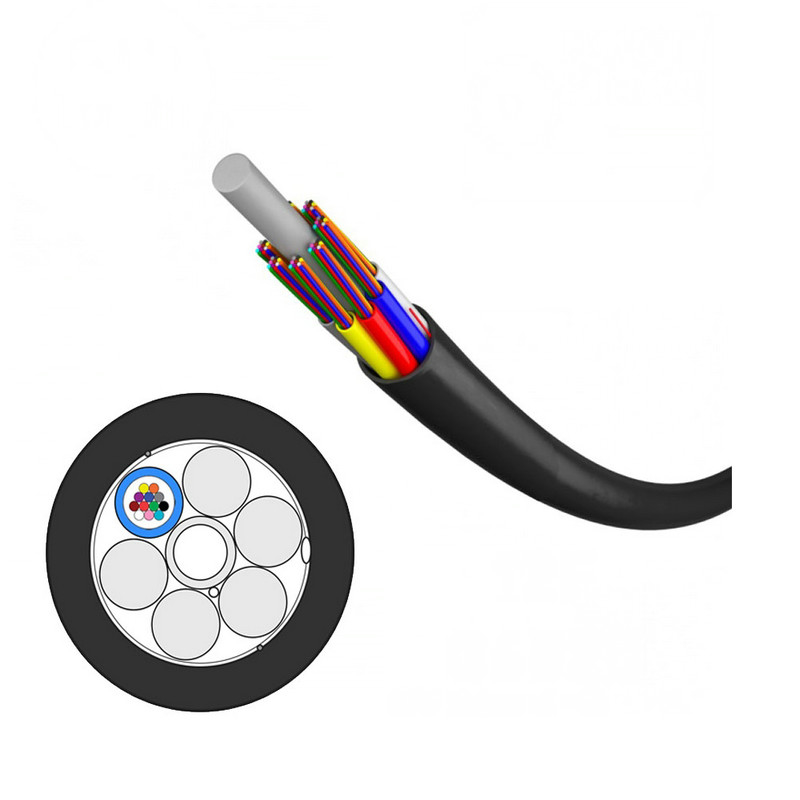

GYFTY (Loose tube stranding, Non-metal strength member, Flooding jelly compound, PE jacket)

Standards:

YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications

Technical Parameters(Typical Value):

Fiber Count	Structure	Diameter (mm)	Weight (kg/km)	Tensile(N)		Crush(N)		Bending Radius(mm)
Fiber Count	Structure	Diameter (mm)	Weight (kg/km)	Long term	Short term	Long term	Short term	Static	Dynamic
2-30	1+6	9. 2	72	600	1500	300	1000	10D	20D
32-36	1+6	9. 2	73	600	1500	300	1000	10D	20D
38-60	1+6	10. 1	88	600	1500	300	1000	10D	20D
62-72	1+6	10. 1	88	600	1500	300	1000	10D	20D
74-84	1+7	10. 8	104	600	1500	300	1000	10D	20D
86-96	1+8	11. 6	116	600	1500	300	1000	10D	20D
98-108	1+9	12.3	129	600	1500	300	1000	10D	20D
110-120	1+10	13.0	144	600	1500	300	1000	10D	20D
122-132	1+11	13.7	161	600	1500	300	1000	10D	20D
134-144	1+12	14.4	177	600	1500	300	1000	10D	20D

Note 1. D refers to the cable diameter;

2. The relevant technical Parameters can be adjusted according to the customer’s demands;

3. The block water way can be adjusted according to the customer’s demands;

4. The design flame resistance, anti-rodent, termite resistant cable according to the customer’s demands.

Outdoor Aerial Fiber Optic Cable 12 Wires Stranded For Telecommunications 0

Outdoor Aerial Fiber Optic Cable 12 Wires Stranded For Telecommunications 1

Fiber Parameters
No.	Items			Unit	Specification
					G.652D
1	Mode Field Diameter		1310nm	μm	9.2±0.4
			1550nm	μm	10.4±0.8
2	Cladding Diameter			μm	125.0±1.0
3	Cladding Non-Circularity			%	≤1.0
4	Core-Cladding Concentricity Error			μm	≤0.5
5	Coating Diameter			μm	245±5
6	Coating Non-Circularity			%	≤6.0
7	Cladding-Coating Concentricity Error			μm	≤12.0
8	Cable Cutoff Wavelength			nm	λcc≤1260
9	Attenuation(max.)	1310nm		dB/km	≤0.35
		1550nm		dB/km	≤0.21
		1380nm		dB/km	≤0.35
		1625nm		dB/km	≤0.24
10	Attenuation and wavelength	1310nm 1285-1330nm		dB/km	≤0.04
		1550nm 1525-1575nm		dB/km	≤0.03
		1550nm 1480-1580nm		dB/km	≤0.05
11	Dispersion	1288-1339nm		ps/(nm.km)	≥-3.5, ≤3.5
		1271-1360nm		ps/(nm.km)	≥-5.3, ≤5.3
		1480-1580nm		ps/(nm.km)	≤20
		1550nm		ps/(nm.km)	≤18
12	Zero dispersion wavelength			Nm	1300-1324
13	Zero dispersion slope			ps/(nm2•km)	≤0.092
14	Typical value			ps/(nm2•km)	0.04
15	Largest individual fiber			Ps/√ km	0.2
16	Link design values			Ps/√ km	0.1
17	Two way average			1310nm-1550	≤0.01dB

Optical Fiber Hardware for ADSS cables

Production Supplier Profile

How do I place an OEM or customized order?
1) Send your purchase intention to our email: cotton@fibercablepuls.com
2) Our sales team will contact you to confirm the product specification, packaging, printing, quantity,

and other specific information.
3) Sign the contract or Proforma Invoice.
4) After receiving your deposit, we will start to arrange the production.

5) 2 weeks before the completion of production, we will notify you to start contacting shipping.
