Name: GYTA33 Anti Rodent Fiber Optic Cable Steel Tape Armored 2-288 Fibers
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTA33
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTA33

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            Fiber Optic Anti Rodent Cable, Steel Tape Armored Anti Rodent Cable, Anti Rodent Cable GYTA33


Fiber Count:	2-288	Water Blocking:	Water Swellable Tape
Armor Type:	Steel Tape/ALUMINUM TAPE	Armored:	Steel Tape
Rodent Protection:	Anti-rodent Tape/Steel Wires	Function:	Anti Rodent
Crush Resistance:	2000N/100mm	Transport Package:	Wooden Drum
Strength:	APL,PSP,FRP,PE	Work Time:	More Than 30 Years
Jacket Color:	Black	Moisture Barrier:	Water Blocking System
Loose Tube Material:	PBT	Color:	Black
Strength Member:	Steel Wire

Fiber Count:	2-288
Water Blocking:	Water Swellable Tape
Armor Type:	Steel Tape/ALUMINUM TAPE
Armored:	Steel Tape
Rodent Protection:	Anti-rodent Tape/Steel Wires
Function:	Anti Rodent
Crush Resistance:	2000N/100mm
Transport Package:	Wooden Drum
Strength:	APL,PSP,FRP,PE
Work Time:	More Than 30 Years
Jacket Color:	Black
Moisture Barrier:	Water Blocking System
Loose Tube Material:	PBT
Color:	Black
Strength Member:	Steel Wire

GYTA33 Anti Rodent Fiber Optic Cable Steel Tape Armored 2-288 Fibers

Fiber Optic Anti Rodent Cable Steel Tape Armored GYTA33

Product Specifications

Attribute	Value
Fiber Count	2-288
Water Blocking	Water Swellable Tape
Armor Type	Steel Tape/Aluminum Tape
Armored	Steel tape
Rodent Protection	Anti-rodent tape/Steel wires
Function	Anti rodent
Crush Resistance	2000N/100mm
Transport Package	Wooden Drum
Strength	APL, PSP, FRP, PE
Work Time	More than 30 years
Jacket Color	Black
Moisture Barrier	Water blocking system
Loose Tube Material	PBT
Color	Black
Strength Member	Steel Wire

Product Description

Anti-Rodent Fiber Optic Cable GYTA33

GYTA33 (Loose tube stranding, Metal strength member, Flooding jelly compound, Aluminum-polyethylene adhesive inner jacket, Single smaller round steel wire armoring, PE outer jacket)

Standards:

YD/T 901-2009 Outdoor layer stranded optical cable for telecommunications

Technical Parameters (Typical Value):

Fiber Count	Structure	Diameter (mm)	Weight (kg/km)	Tensile(N)	Crush(N)	Bending Radius(mm)
2-30	1+5	12.8	268	4000	10000	12.5D/25D
32-36	1+6	13.2	287	4000	10000	12.5D/25D
38-60	1+5	13.9	318	4000	10000	12.5D/25D
62-72	1+6	14.2	334	4000	10000	12.5D/25D
74-84	1+7	15.1	363	4000	10000	12.5D/25D
86-96	1+8	15.8	387	4000	10000	12.5D/25D
98-108	1+9	16.6	437	4000	10000	12.5D/25D
110-120	1+10	17.2	465	4000	10000	12.5D/25D
122-132	1+11	18.3	558	4000	10000	12.5D/25D
134-144	1+12	18.9	583	4000	10000	12.5D/25D
146-216	1+6+12	18.4	503	4000	10000	12.5D/25D
218-288	1+9+15	20.5	600	4000	10000	12.5D/25D

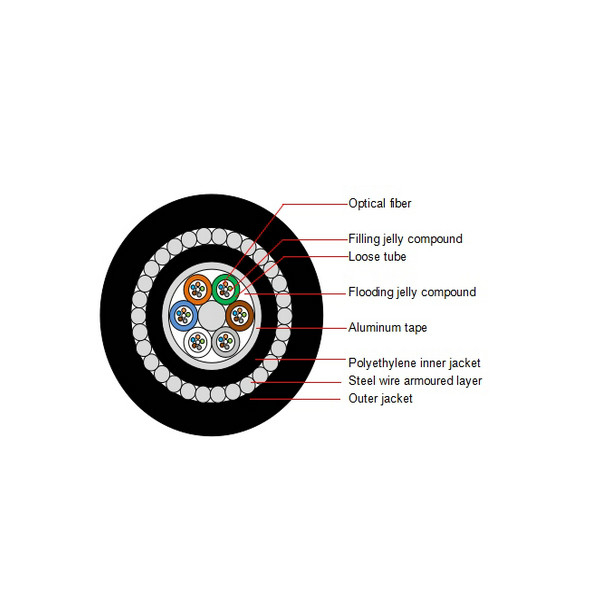

Cable Structure

PE outer jacket
Steel wire central members /FRP
Steel wires around
Fiber jelly
Loose tube
Aluminum tape

Fiber Parameters

No.	Items	Unit	Specification G.652D
1	Mode Field Diameter	1310nm μm 1550nm μm	9.2±0.4 10.4±0.8
2	Cladding Diameter	μm	125.0±1.0
3	Cladding Non-Circularity	%	≤1.0
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5
6	Coating Non-Circularity	%	≤6.0
7	Cladding-Coating Concentricity Error	μm	≤12.0
8	Cable Cutoff Wavelength	nm	λcc≤1260
9	Attenuation(max.)	1310nm dB/km 1550nm dB/km 1380nm dB/km 1625nm dB/km	≤0.35 ≤0.21 ≤0.35 ≤0.24
10	Attenuation and wavelength	1310nm 1285-1330nm dB/km 1550nm 1525-1575nm dB/km 1550nm 1480-1580nm dB/km	≤0.04 ≤0.03 ≤0.05
11	Dispersion	1288-1339nm ps/(nm.km) 1271-1360nm ps/(nm.km) 1480-1580nm ps/(nm.km) 1550nm ps/(nm.km)	≥-3.5, ≤3.5 ≥-5.3, ≤5.3 ≤20 ≤18
12	Zero dispersion wavelength	Nm	1300-1324
13	Zero dispersion slope	ps/(nm²•km)	≤0.092
14	Typical value	ps/(nm²•km)	0.04
15	Largest individual fiber	Ps/√ km	0.2
16	Link design values	Ps/√ km	0.1
17	Two way average	1310nm-1550	≤0.01dB

Production Supplier Profile

How to Place an OEM or Customized Order

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications, packaging, printing, quantity, and other details
Sign the contract or Proforma Invoice
After receiving your deposit, we will arrange production
2 weeks before production completion, we will notify you to arrange shipping
