Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: ADSS-96b1.3
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: 190
Packaging Details: Wooden Spool ，Φ1200*750mm
Delivery Time: 5-25days
Payment Terms: 30%TT as deposit,70%Balance before shipping.
Supply Ability: 100km
|
Cable Name:
|
ADSS-96b1.3
|
Cable Length:
|
3000m/4km
|
Outer Sheath:
|
PE And AT
|
Fiber No:
|
4 - 144 Fibers
|
Factory:
|
Yes
|
Certifications:
|
UL, RoHS, REACH
|
Fiber Type:
|
Single-mode Or Multimode
|
|
Cable Name:
|
ADSS-96b1.3
|
|
Cable Length:
|
3000m/4km
|
|
Outer Sheath:
|
PE And AT
|
|
Fiber No:
|
4 - 144 Fibers
|
|
Factory:
|
Yes
|
|
Certifications:
|
UL, RoHS, REACH
|
|
Fiber Type:
|
Single-mode Or Multimode
|
| Cable Name | ADSS-96b1.3 |
|---|---|
| Cable Length | 3000m/4km |
| Outer Sheath | PE and AT |
| Fiber No | 4 - 144 Fibers |
| Factory | Yes |
| Certifications | UL, RoHS, REACH |
| Fiber Type | Single-mode or Multimode |

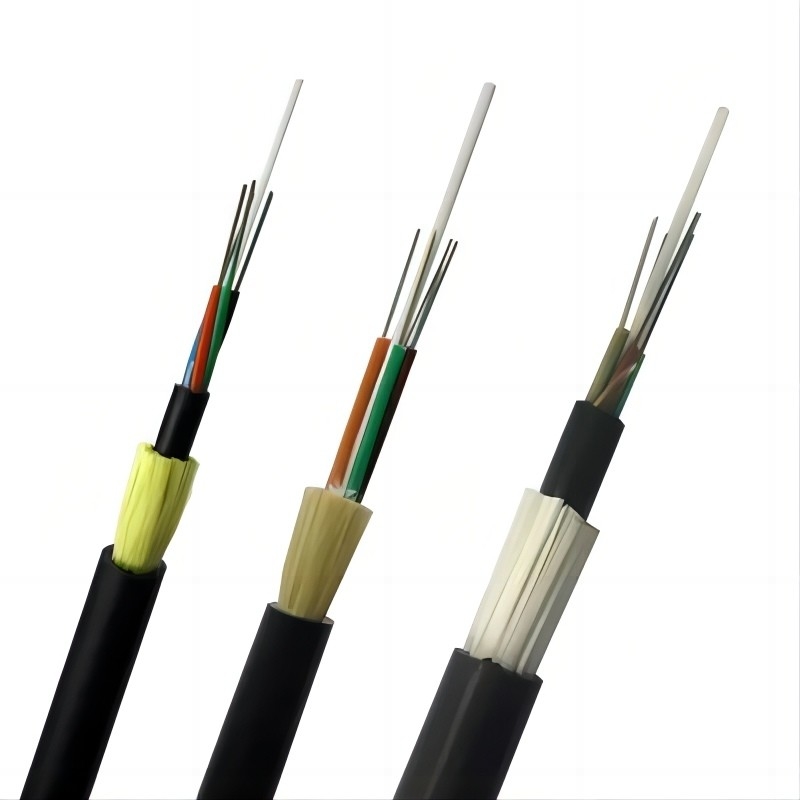

ADSS cables feature a dry core design and the high-tension strength capability required for installation in the toughest environmental and electrical conditions. We stock a wide variety of All-Dielectric Self-Supporting (ADSS) Aerial Cable to meet the demanding needs of any transmission and distribution environment.
This high-capacity cable offers great flexibility for placement on overhead transmission towers, eliminating the need for a support messenger.
| No. of Fibers | 2-36 | 38-72 | 74-96 | 98-120 | 122-144 | 146-216 |
|---|---|---|---|---|---|---|
| Max No. of Fibers/Tube | 6 | 12 | 12 | 12 | 12 | 12 |
| No. of Tube(+Fillers) | 6 | 6 | 8 | 10 | 12 | 18(2 layers) |
| Nominal Diameter | 10.7 | 13.2 | 13.9 | 15.4 | 16.8 | 17 |
| Cable Weight(kg/km) | 89 | 135 | 150 | 185 | 220 | 225 |
| Fiber Type | G652D G657A1 OM1 OM2 OM3 OM4 | |||||
| Max Allowable Tension | Short Term: 3500N Long Term: 100N MAT: 3.5Kn RTS: 9.0Kn |
|||||
| Wind Speed | ≤30m/s Ics: 0mm | |||||
| Min.Bend Radius (mm) | Dynamic: 20D Static: 10D (D: Cable diameter) | |||||
| Temperature Range |
-40°C~+70°C (Transportation & Storage) -35°C~+65°C (Installation) -40°C~+70°C (Operation) |
|||||
Construction: This type features a single outer jacket layer. Lightweight: It's typically lighter than double sheath variants.
Applications: Ideal for environments with lower risk of mechanical damage or where cable weight is a critical factor.
Cost-Efficient: Generally more cost-effective due to less material usage.
Environmental Resistance: Offers sufficient protection against UV rays, moisture, and minor abrasions.
Construction: Equipped with two layers of sheathing, an inner and an outer jacket.
Enhanced Protection: Provides better mechanical protection, making it suitable for harsher environments.
Durability: More resistant to abrasion, rodents, and other forms of physical damage.
Weight and Cost: Heavier and typically more expensive than single sheath cables due to additional materials.
Applications: Preferred in areas with higher potential for mechanical stress, such as regions with dense vegetation or frequent severe weather.
