Name: GYTA53 144 Core Single Mode Direct Burial Fiber Optic Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTA53
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTA53

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiable

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                            Single Mode Fiber Optic Cable, Fiber Optic Cable GYTA53, Double Armored Direct Burial Cable


Item No.:	GYTA53	Jacket Material:	PE/LSZH
Fiber Type:	G.652D	Armored Type:	Steel Tape/Aluminum
Application:	Dicetly Buried	Fiber Count:	144 Cores
Armor Type:	Steel Tape/ALUMINUM TAPE

Item No.:	GYTA53
Jacket Material:	PE/LSZH
Fiber Type:	G.652D
Armored Type:	Steel Tape/Aluminum
Application:	Dicetly Buried
Fiber Count:	144 Cores
Armor Type:	Steel Tape/ALUMINUM TAPE

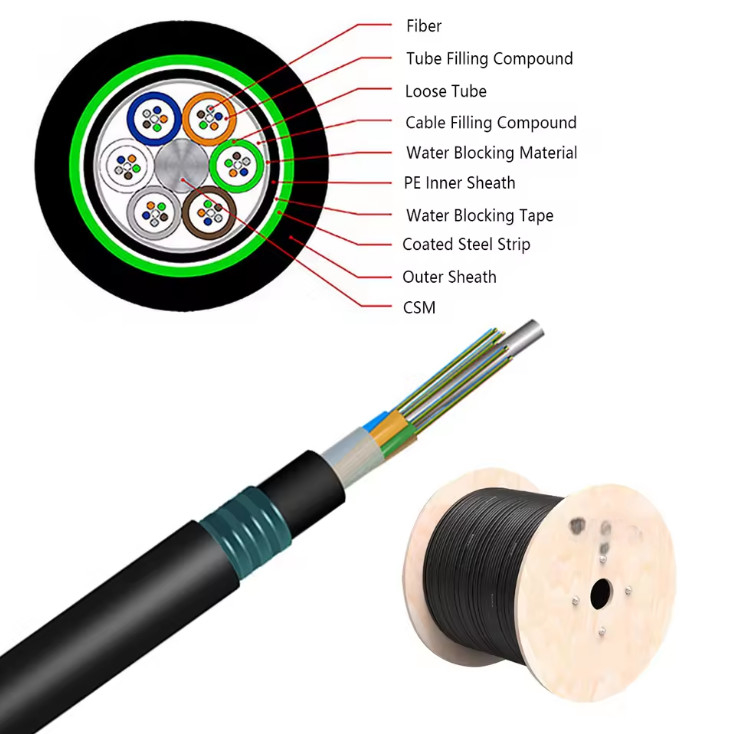

GYTA53 144 Core Single Mode Direct Burial Fiber Optic Cable

Direct Burial Single Mode Fiber Optic Cable GYTA53 144 Cores Double Armored

Product Specifications

Attribute	Value
Item No.	GYTA53
Jacket Material	PE/LSZH
Fiber Type	G.652D
Armored Type	Steel Tape/Aluminum
Application	Directly buried
Fiber Count	144 cores

Product Description

Direct Burial Cable GYTA53 144 Cores Single Mode Double Jacket

Double Armored Fiber Optic Cable

GYTA53 is the steel tape armored outdoor fiber optic cable used for direct burial. Available in single mode and multimode configurations with fiber counts from 2 to 432 cores.

Applications

These corrugated steel tape and aluminum tape armored double sheath cables are designed for:

Installation in harsh environments with mechanical impact risks
Direct buried applications
Duct installations requiring rodent or moisture resistance

Key Features

Available with up to 432 fiber cores
Loose tube stranding technology provides good secondary excess length and stress-free fiber movement
Corrugated steel tape armor with double PE sheath for excellent crush and rodent resistance
Metal strength member for superior strain performance

Technical Specifications

Cable Data

Fiber Count	Fibers Per Tube	Loose Tube Diameter (mm)	CSM Diameter (mm)	Outer Jacket Thickness (mm)	Cable Diameter (mm)	Cable Weight (kg/km)
4	4	1.8±0.1	1.4/1.4	1.6	11.5±0.2	140
6	6	1.9±0.1	1.4/1.4	1.6	11.5±0.2	140
8	8	1.9±0.1	1.4/1.4	1.6	11.5±0.2	140
12	6	1.9±0.1	1.4/1.4	1.6	11.5±0.2	140
24	6	1.9±0.1	1.4/1.4	1.6	11.5±0.2	140
36	12	1.9±0.1	1.6/1.6	1.6	11.5±0.2	140
48	12	2.2±0.1	1.6/1.6	1.6	12.2±0.2	140
72	12	2.2±0.1	1.6/3.5	1.6	12.2±0.2	150
96	12	2.2±0.1	2.0/2.0	1.6	12.2±0.2	160
144	12	2.2±0.1	2.0/6.4	1.8	13.8±0.2	180

Fiber Parameters (G.652D)

Parameter	Wavelength	Unit	Specification
Mode Field Diameter	1310nm	μm	9.2±0.4
Mode Field Diameter	1550nm	μm	10.4±0.8
Cladding Diameter	-	μm	125.0±1.0
Cladding Non-Circularity	-	%	≤1.0
Core-Cladding Concentricity Error	-	μm	≤0.5
Coating Diameter	-	μm	245±5
Coating Non-Circularity	-	%	≤6.0
Cladding-Coating Concentricity Error	-	μm	≤12.0
Cable Cutoff Wavelength	-	nm	λcc≤1260
Attenuation (max.)	1310nm	dB/km	≤0.35
Attenuation (max.)	1550nm	dB/km	≤0.21
Attenuation (max.)	1380nm	dB/km	≤0.35
Attenuation (max.)	1625nm	dB/km	≤0.24

Cable Marking & Fiber Colors

Standard marking includes: COMPANY Fiber cable name N*cores G.652D 2024 XXXXm

Marking is printed every 1 meter
"G.652D" indicates ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber
Custom marking available according to client requirements

How to Place an OEM or Customized Order

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications, packaging, printing, quantity, and other requirements
Sign the contract or Proforma Invoice
After receiving your deposit, we will begin production
2 weeks before production completion, we will notify you to arrange shipping
