Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: GYTA53
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiable
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25days
Payment Terms: 30%TT as deposit,70%Balance before shipping.
Supply Ability: 100km
|
Item No.:
|
GYTA53
|
Fiber Type:
|
G.652D
|
Armored Type:
|
Double Armored
|
Application:
|
Dicetly Buried
|
Fiber Count:
|
72 Cores
|
Armored:
|
Yes
|
FACTORY:
|
DIRECTLY FACTORY
|
|
Item No.:
|
GYTA53
|
|
Fiber Type:
|
G.652D
|
|
Armored Type:
|
Double Armored
|
|
Application:
|
Dicetly Buried
|
|
Fiber Count:
|
72 Cores
|
|
Armored:
|
Yes
|
|
FACTORY:
|
DIRECTLY FACTORY
|
| Attribute | Value |
|---|---|
| Item No. | GYTA53 |
| Fiber Type | G.652D |
| Armored Type | Double armored |
| Application | Directly buried |
| Fiber Count | 72 cores |
| Armored | Yes |
| Factory | Directly from factory |

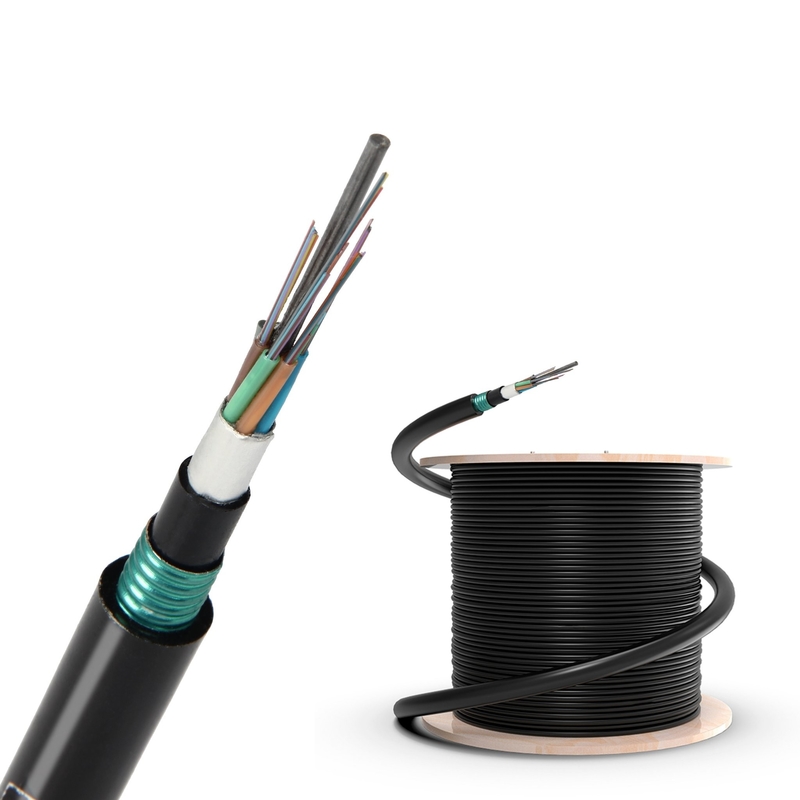

GYFTA53 Fiber Cable is a 24F to 144F multi-tube dual sheath dual armor direct burial solution designed for long-distance communication, local trunk lines, CATV, and computer network systems in environments with strong electromagnetic interference or frequent thunderstorms.
This outdoor fiber optic cable features a loose tube design with non-metallic FRP central force member, peripheral force members, and polyethylene sheath. It is particularly suitable for installation in conduits or antennas in areas with high lightning incidence or exposure to high voltage.
| Fiber count | Fibers per tube | Loose tube diameter | CSM diameter | Nominal thickness of outer jacket | Cable diameter | Cable weight |
|---|---|---|---|---|---|---|
| 4 | 4 | 1.8±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 140 |
| 6 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 140 |
| 8 | 8 | 1.9±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 140 |
| 12 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 140 |
| 24 | 6 | 1.9±0.1 | 1.4/1.4 | 1.6 | 11.5±0.2 | 140 |
| 36 | 12 | 1.9±0.1 | 1.6/1.6 | 1.6 | 11.5±0.2 | 140 |
| 48 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 12.2±0.2 | 140 |
| 72 | 12 | 2.2±0.1 | 1.6/3.5 | 1.6 | 12.2±0.2 | 150 |
| 96 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 12.2±0.2 | 160 |
| 144 | 12 | 2.2±0.1 | 2.0/6.4 | 1.8 | 13.8±0.2 | 180 |
| No. | Items | Unit | Specification |
|---|---|---|---|
| 1 | Mode Field Diameter (1310nm/1550nm) | μm | 9.2±0.4 / 10.4±0.8 |
| 2 | Cladding Diameter | μm | 125.0±1.0 |
| 3 | Cladding Non-Circularity | % | ≤1.0 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
| 9 | Attenuation (max.) at various wavelengths | dB/km | 1310nm: ≤0.35 1550nm: ≤0.21 1380nm: ≤0.35 1625nm: ≤0.24 |
Standard marking includes: COMPANY Fiber cable name N*cores G.652D 2024 XXXXm
Marking is printed every 1 meter. "G.652D" indicates ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber.
Custom marking available according to client requirements.
