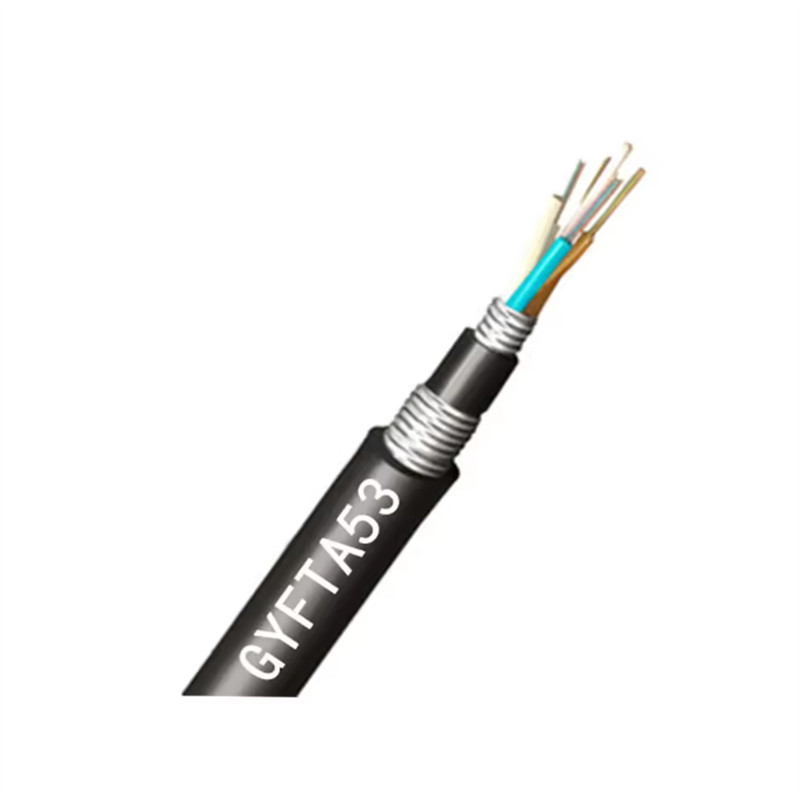

GYFTA53 Double Armored Direct Buried Fiber Optic Cable

Name: GYFTA53 Double Armored Direct Buried Fiber Optic Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: GYFTA53
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYFTA53

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiable

Packaging Details: wooden/ spool drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Direct Buried Cable GYFTA53, Optical Fiber Direct Buried Cable, Underground Direct Buried Fiber Cable


Item No.:	GYFTA53	Armored:	Yes
Armored Type:	Double Armored	FACTORY:	DIRECTLY FACTORY
Fiber Type:	G.652D	Application:	Dicetly Buried

Item No.:	GYFTA53
Armored:	Yes
Armored Type:	Double Armored
FACTORY:	DIRECTLY FACTORY
Fiber Type:	G.652D
Application:	Dicetly Buried

GYFTA53 Double Armored Direct Buried Fiber Optic Cable

Outdoor Optical Fiber Direct Buried Cable GYFTA53 Double Jacket For Underground

Product Specifications

Item No.	GYFTA53
Armored	Yes
Armored Type	Double Armored
Factory	Directly Factory
Fiber Type	G.652D
Application	Directly Buried

Product Description

The GYFTA53 cable is an outdoor armored fiber optic cable designed for long-distance, high-capacity communication networks, suitable for both aerial and underground installations.

Key Features:

Central tube design with stranded loose tubes and water-blocking gel
Loose tubes provide fiber protection and facilitate easy installation
Water-resistant gel for deployment in harsh environments
Corrugated steel tape armor for protection against rodent bites and moisture
Available in various fiber counts to meet different capacity requirements
Customizable sheath materials for specific environmental conditions

Detailed Images

Technical Parameters

Fiber count	Structure	Fibers per tube	Loose tube diameter(mm)	CSM diameter /pad diameter (mm)	Thickness of inner jacket (mm)	Thickness of outer jacket (mm)	Cable diameter (mm)	Cable Weight(kg/km)
4	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
6	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
8	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
12	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
18	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	165
24	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	165
30	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	166
36	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	166
48	1+6	12	2.0+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	191
60	1+6	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	191
72	1+6	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	192
84	1+7	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	14.7 ± 0.5	218
96	1+8	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	15.4 ± 0.5	234
108	1+9	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	16.1 ± 0.5	253
120	1+10	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	16.8 ± 0.5	272
132	1+11	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	17.4 ± 0.5	293
144	1+12	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	18.2 ± 0.5	317
288	1+9+15	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	20.1 ± 0.5	383
