Name: GYTA53 Double PE Sheath Direct Buried Fiber Optic Cable 12-144 Fibers
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTA53
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTA53

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiable

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                            Optical Direct Buried Cable, GYTA53 Direct Buried Cable, GYFTA53 Direct Buried Cable


Item No.:	GYTA53	Jacket Material:	Double PE SHEATH
Fiber Type:	Single Mode/MULTI MODE	Armored Type:	Double Armoured
Application:	Dicetly Buried	Fiber Count:	12-144
Armored:	Steel Tape/ALUMINUM TAPE

Item No.:	GYTA53
Jacket Material:	Double PE SHEATH
Fiber Type:	Single Mode/MULTI MODE
Armored Type:	Double Armoured
Application:	Dicetly Buried
Fiber Count:	12-144
Armored:	Steel Tape/ALUMINUM TAPE

GYTA53 Double PE Sheath Direct Buried Fiber Optic Cable 12-144 Fibers

GYFTA53 GYTA53 Optical Direct Buried Cable

Product Specifications

Item No.	GYTA53
Jacket Material	Double PE SHEATH
Fiber Type	Single mode/MULTI MODE
Armored Type	Double armoured
Application	Directly buried
Fiber Count	12-144
Armored	Steel Tape/ALUMINUM TAPE

Product Description

GYFTA53 cable is a type of outdoor, armored fiber optic cable designed for long-distance, high-capacity communication networks. It is commonly used in both aerial and underground installations.

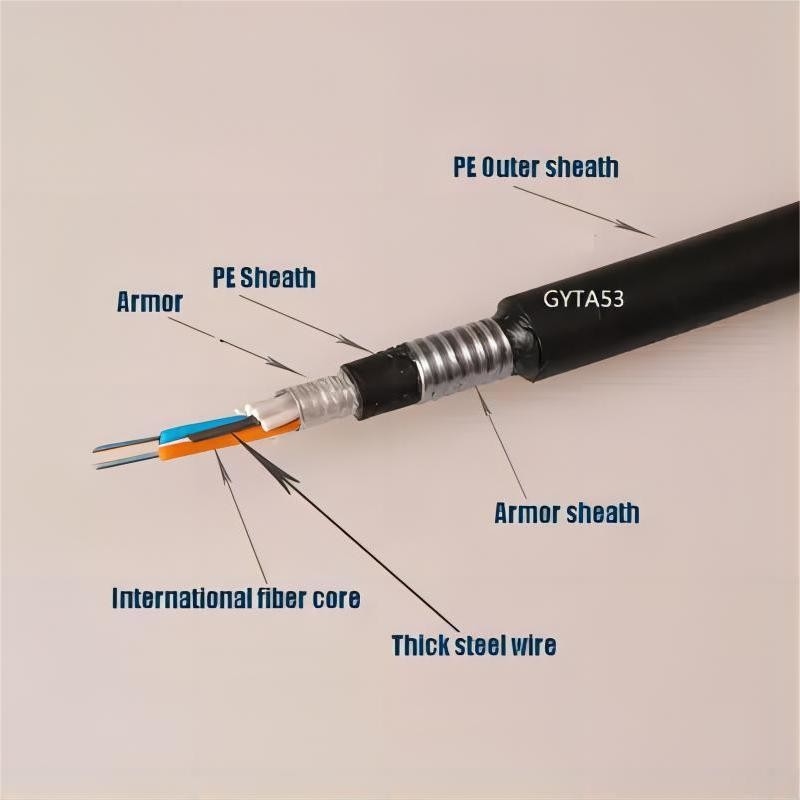

Construction Details

Fiber Reinforced Plastic (FRP Rod) in center of core as non-metallic strength member
Loose Tubes made of PBT (High Modulus Plastic) to withstand wide temperature fluctuations
Tubes and spaces filled with water-resistant jelly compound for moisture protection
Moisture Resistance GEL prevents longitudinal moisture ingress
Fiber distribution varies by count (e.g., 24 fiber cable uses 4 tubes with 6 fibers each)
Tubes bound with cloth binder to maintain circular shape
APL (Aluminium Plastic Lamination Tape) inner armor for flexibility
Thin inner sheath extruded over APL
PSP armor (Plastic Steel Plastic) for radial moisture and crush resistance
Outer HDPE sheath provides UV protection, rodent resistance, and tensile strength

Cable Technical Data

Fiber count	Fibers per tube	Loose tube diameter	CSM diameter	Nominal thickness of outer jacket	Cable diameter	Cable weight
4	4	1.8±0.1	1.4/1.4	1.6	11.5±0.2	140

Fiber Parameters (G.652D)

Parameter	Unit	Specification
Mode Field Diameter (1310nm)	μm	9.2±0.4

Cable Marking & Fiber Colors

Standard marking includes company name, fiber cable name, core count, fiber type, year, and length. Marking is printed every 1 meter. Custom markings available per client requirements.

Ordering Information

For OEM or customized orders:

Send purchase intention to cotton@fibercablepuls.com
Our sales team will confirm specifications, packaging, and quantity
Sign contract or Proforma Invoice
Production begins after deposit receipt
Shipping notification 2 weeks before completion
