Aerial Figure 8 Communication Fiber Optic Cable Gytc8s Gyxtc8s 1km

Name: Aerial Figure 8 Communication Fiber Optic Cable Gytc8s Gyxtc8s 1km
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTC8S-12B1.3
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTC8S-12B1.3

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiable

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Aerial Communication Fiber Optic Cable, Fiber Optic Cable Gytc8s, Communication Fiber Optic Cable 1km


Item NO.:	GYTC8S-12B1.3	TYPE:	Fig.8 Shape
Strength Member:	Messenger Wires *7pcs	Application:	Self-surporting
Jacket Material:	PE	Outer Diameter:	8.5*12.5mm

Item NO.:	GYTC8S-12B1.3
TYPE:	Fig.8 Shape
Strength Member:	Messenger Wires *7pcs
Application:	Self-surporting
Jacket Material:	PE
Outer Diameter:	8.5*12.5mm

Aerial Figure 8 Communication Fiber Optic Cable Gytc8s Gyxtc8s 1km

Aerial Figure.8 Fiber Optic Cable Communication Cable Gytc8s Gyxtc8s

Figure 8 Fiber Optical Cable 1km Price

Technical Data

Fiber: Up to 288, Gel-filled.

Fiber Types: Single-mode and multimode.

Cable Constructions:S-Z Stranded loose tube.

Strength Member: Stranded steel wires.

Sheath Options: Single PE Sheath.

Armor:None (GYTC8Y)/ GYTC8A(Aluminum Tape)/GYTC8S(Steel Tape).

Operating Temperature: -40~+70℃.

Compliances:In Accordance with IEC, ITU and EIA standards.

Fearures:

* Excellent Mechanical and enviromental performance.

* Good water resistance performance.

* Easy to install.

* Gel-filled loose tube protect the fiber well.

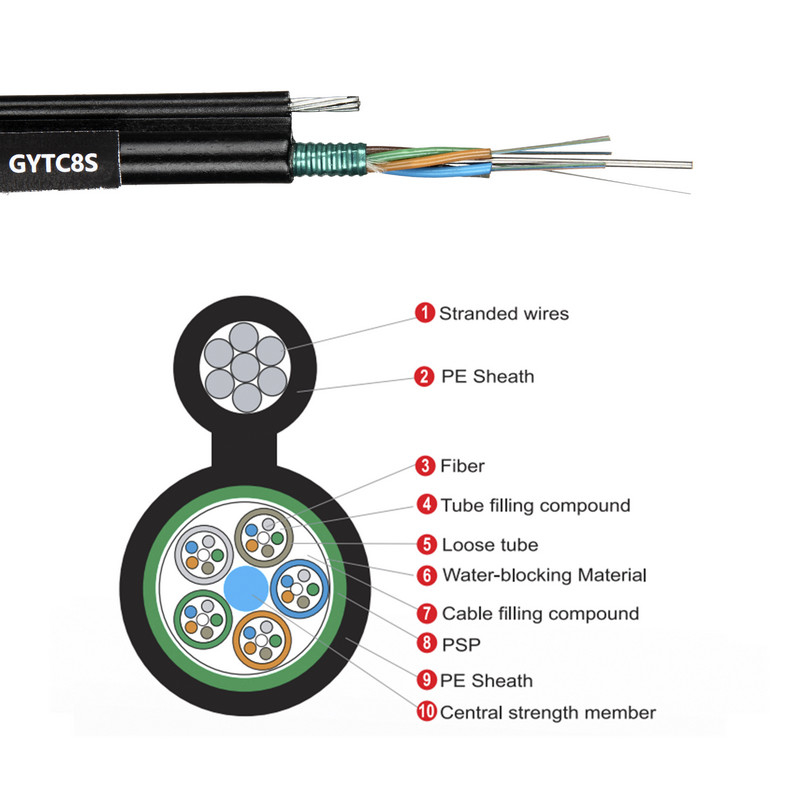

Aerial Figure 8 Communication Fiber Optic Cable Gytc8s Gyxtc8s 1km 1

Aerial Figure 8 Communication Fiber Optic Cable Gytc8s Gyxtc8s 1km 2

Aerial Figure 8 Communication Fiber Optic Cable Gytc8s Gyxtc8s 1km 3

Aerial Figure 8 Communication Fiber Optic Cable Gytc8s Gyxtc8s 1km 4

GYTC8S Cable Place Order Information

CABLE DATA

No. of cable			12	24
Fiber Model			G652D
Design (StrengthMember+Tube&Filler)			1+5
Central Strength Member		Material	FRP
		Diameter(±0.05)mm	1.5
Loose Tube		Material	PBT
		Diameter(±0.06)mm	1.7
		Thickness(±0.03)mm	0.32
		The Max.Core NO./Tube	6
Filler Rope		Material	PP
		Diameter(±0.06)mm	1.7
		NO.	3	1
Water Blocking Layer( Material)			Flooding Compound
Outer Sheath①		Material	PE
		Thickness(±0.1)mm	1.2
Outer Sheath②		Material	PE
		Thickness(±0.1)mm	1.8
Web		Material	PE
		Size(±0.1)mm	2.0*2.0
Messenger Wire		Material	Steel stranded
		Size(±0.1)mm	2.7mm(0.9mm×7)
Cable Diameter(±0.5)mm(W×H)			8.5x15.2
Cable Weight(±10)kg/km			100
Min. bending radius	Without Tension		10.0×Cable-φ
	Under Maximum Tension		20.0×Cable-φ
Temperature range (℃)	Installation		-20~+60
	Transport&Storage		-40~+70
	Operation		-40~+70

Cable Marking&Fibers Colors

COMPANY Fiber cable name N*cores G.652D 2024 XXXXm

*The marking is printed every 1 meter;
**”G.652D” means ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber..

Also can according to client cable marking.

Aerial Figure 8 Communication Fiber Optic Cable Gytc8s Gyxtc8s 1km 6
