Name: GYTC8S Aerial Figure 8 Fiber Optic Cable 12B1.3 1km
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTC8S-12B1.3
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTC8S-12B1.3

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiable

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Aerial Communication Fiber Optic Cable, Fiber Optic Cable Gytc8s, Communication Fiber Optic Cable 1km


Item NO.:	GYTC8S-12B1.3	TYPE:	Fig.8 Shape
Strength Member:	Messenger Wires *7pcs	Application:	Self-surporting
Jacket Material:	PE	Outer Diameter:	8.5*12.5mm

Item NO.:	GYTC8S-12B1.3
TYPE:	Fig.8 Shape
Strength Member:	Messenger Wires *7pcs
Application:	Self-surporting
Jacket Material:	PE
Outer Diameter:	8.5*12.5mm

GYTC8S Aerial Figure 8 Fiber Optic Cable 12B1.3 1km

Aerial Figure 8 Communication Fiber Optic Cable GYTC8S GYXTC8S 1km

Product Specifications

Item NO.	GYTC8S-12B1.3
TYPE	Fig.8 shape
Strength member	Messenger wires *7pcs
Application	Self-supporting
Jacket Material	PE
Outer Diameter	8.5*12.5mm

Product Description

High-performance aerial figure 8 fiber optic cable designed for communication networks with excellent mechanical and environmental performance.

Technical Data

Fiber: Up to 288, Gel-filled
Fiber Types: Single-mode and multimode
Cable Construction: S-Z Stranded loose tube
Strength Member: Stranded steel wires
Sheath Options: Single PE Sheath
Armor: None (GYTC8Y)/ GYTC8A(Aluminum Tape)/GYTC8S(Steel Tape)
Operating Temperature: -40~+70℃
Compliances: In Accordance with IEC, ITU and EIA standards

Key Features

Excellent mechanical and environmental performance
Good water resistance performance
Easy to install
Gel-filled loose tube protects the fiber well

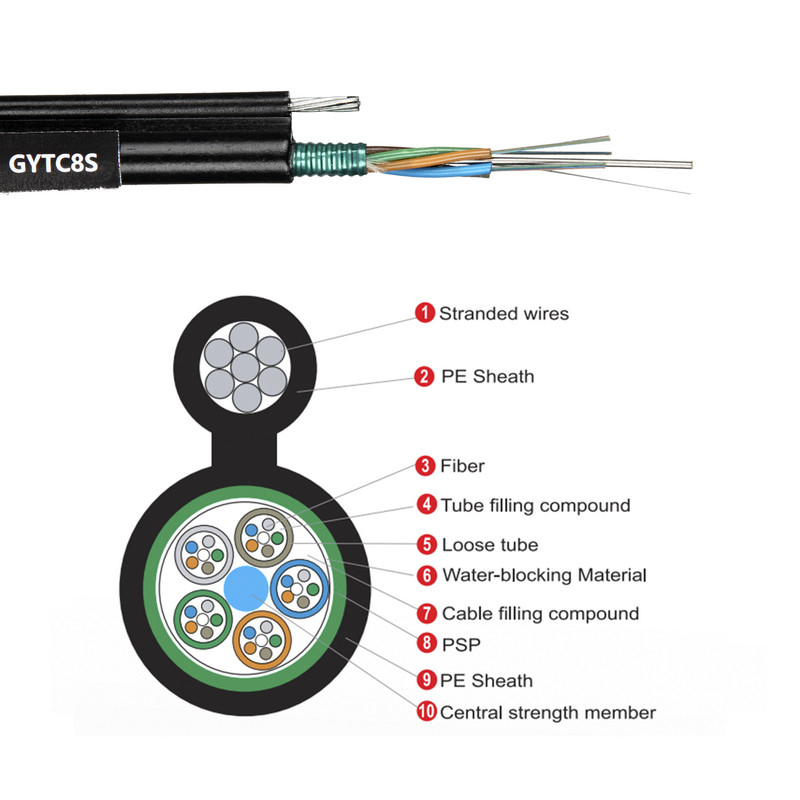

GYTC8S Cable Order Information

Cable Data

No. of cable	12	24
Fiber Model	G652D
Design (StrengthMember+Tube&Filler)	1+5
Central Strength Member	Material	FRP
Diameter(±0.05)mm	1.5
Loose Tube	Material	PBT
Diameter(±0.06)mm	1.7
Thickness(±0.03)mm	0.32
The Max.Core NO./Tube	6
Filler Rope	Material	PP
Diameter(±0.06)mm	1.7
NO.	3	1
Water Blocking Layer(Material)	Flooding Compound
Outer Sheath①	Material	PE
Thickness(±0.1)mm	1.2
Outer Sheath②	Material	PE
Thickness(±0.1)mm	1.8
Web	Material	PE
Size(±0.1)mm	2.0*2.0
Messenger Wire	Material	Steel stranded
Size(±0.1)mm	2.7mm(0.9mm×7)
Cable Diameter(±0.5)mm(W×H)	8.5x15.2
Cable Weight(±10)kg/km	100
Min. bending radius	Without Tension: 10.0×Cable-φ	Under Maximum Tension: 20.0×Cable-φ
Temperature range (℃)	Installation: -20~+60	Transport&Storage: -40~+70 Operation: -40~+70

Cable Marking & Fibers Colors

COMPANY Fiber cable name N*cores G.652D 2024 XXXXm

The marking is printed every 1 meter; "G.652D" means ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber.

Also can according to client cable marking.

Production Supplier Profile

How to Place an OEM or Customized Order

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm the product specification, packaging, printing, quantity, and other specific information.
Sign the contract or Proforma Invoice.
After receiving your deposit, we will start to arrange the production.
2 weeks before the completion of production, we will notify you to start contacting shipping.
