Name: 12 Core GYTA53 Double Jacket Armored Fiber Optic Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTA53
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTA53

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiable

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Fiber Optic Underground Cable GYTA53, Fiber Optic Underground Cable 12 Core, Double Jackets Fiber Optic Cable


Outdoor Use:	Yes	Jacket Material:	PE Sheath
Installation Type:	Direct Buried	Waterproof:	Yes
Uv Resistant:	Yes	Flame Retardant:	Yes

Outdoor Use:	Yes
Jacket Material:	PE Sheath
Installation Type:	Direct Buried
Waterproof:	Yes
Uv Resistant:	Yes
Flame Retardant:	Yes

12 Core GYTA53 Double Jacket Armored Fiber Optic Cable

Double Jackets Fiber Optic Underground Cable 12 Core GYTA53

Product Attributes

Attribute	Value
Outdoor Use	Yes
Jacket Material	PE sheath
Installation Type	Direct Buried
Waterproof	Yes
UV Resistant	Yes
Flame Retardant	Yes

Product Description

GYTA53 is an outdoor use optical fiber cable suitable for duct and aerial applications. This double-jacketed underground cable features robust construction for demanding environments.

GYTA53 cable is a type of outdoor, armoured fiber optic cable designed for long-distance, high-capacity communication networks. It is commonly used in both aerial and underground installations.

Key features include:

Central tube design with stranded loose tubes and water-blocking gel
Corrugated steel tape armor for physical protection against rodent bites and moisture
PE sheath material for durability in harsh conditions
Available in various fiber counts to meet different capacity requirements
Customizable sheath materials for specific environmental conditions

Technical Specifications

Detailed parameters for GYTA53 fiber optic cable:

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter(mm)	Thickness of inner jacket (mm)	Thickness of outer jacket (mm)	Cable diameter (mm)	Cable Weight(kg/km)
4	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
6	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
8	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
12	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
18	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	165
24	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	165
30	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	166
36	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	166
48	1+6	12	2.0+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	191
60	1+6	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	191
72	1+6	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	192
84	1+7	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	14.7 ± 0.5	218
96	1+8	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	15.4 ± 0.5	234
108	1+9	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	16.1 ± 0.5	253
120	1+10	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	16.8 ± 0.5	272
132	1+11	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	17.4 ± 0.5	293
144	1+12	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	18.2 ± 0.5	317
288	1+9+15	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	20.1 ± 0.5	383

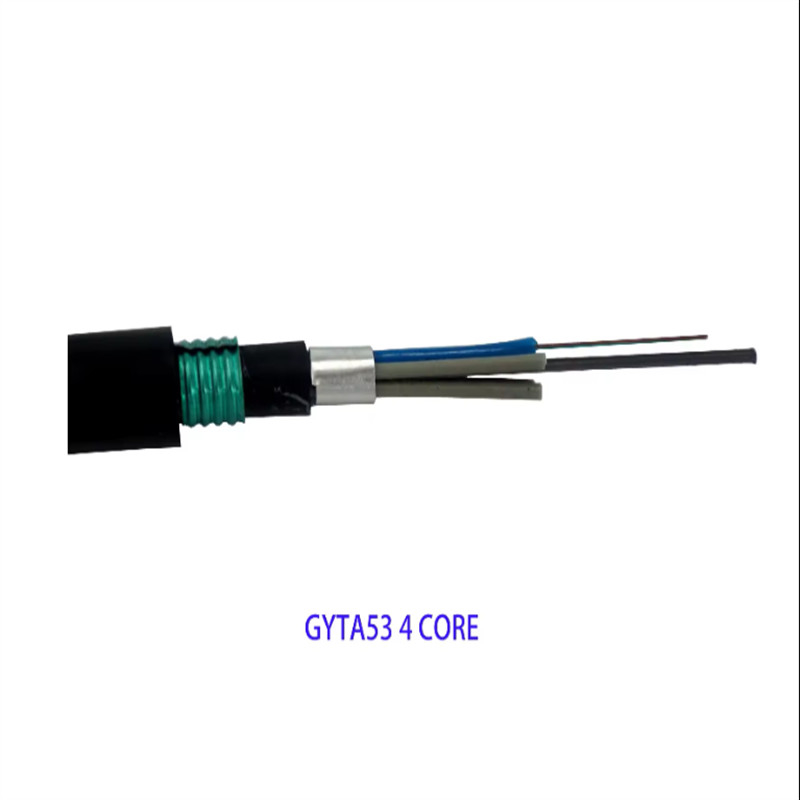

Product Images

Frequently Asked Questions

1. Why choose us?

We are manufacturer located in Guangzhou, China, operating since 2011. We primarily serve the domestic market with a team of 11-50 professionals.

2. How can we guarantee quality?

Always provide pre-production samples before mass production
Conduct final inspection before shipment

3. Can you send products to my country?

Yes, we can. If you don't have your own shipping forwarder, we can assist with logistics.

4. Can you do OEM for me?

We accept all OEM orders. Contact us with your design requirements and we'll provide a reasonable quote and samples.

5. What services can we provide?

Delivery Terms: FOB, CIF, EXW
Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Methods: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow
Languages: English, Chinese
