Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: GCYFY-72b1.3
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25days
Payment Terms: 30%TT as deposit,70%Balance before shipping.
Supply Ability: 100km
|
Model:
|
GCYFY-72B1.3
|
Jacket Material:
|
PE/LSZH
|
Fiber Count:
|
24/48/96/144/288
|
Fiber Type:
|
G.652D
|
Storage Temperature:
|
-40℃ To +70℃
|
Strength Member:
|
FRP
|
Application:
|
Air Blown Micro Cable
|
|
Model:
|
GCYFY-72B1.3
|
|
Jacket Material:
|
PE/LSZH
|
|
Fiber Count:
|
24/48/96/144/288
|
|
Fiber Type:
|
G.652D
|
|
Storage Temperature:
|
-40℃ To +70℃
|
|
Strength Member:
|
FRP
|
|
Application:
|
Air Blown Micro Cable
|
| Attribute | Value |
|---|---|
| Model | GCYFY-72B1.3 |
| Jacket Material | PE/LSZH |
| Fiber Count | 24/48/96/144/288 |
| Fiber Type | G.652D |
| Storage Temperature | -40℃ to +70℃ |
| Strength Member | FRP |
| Application | Air blown micro cable |

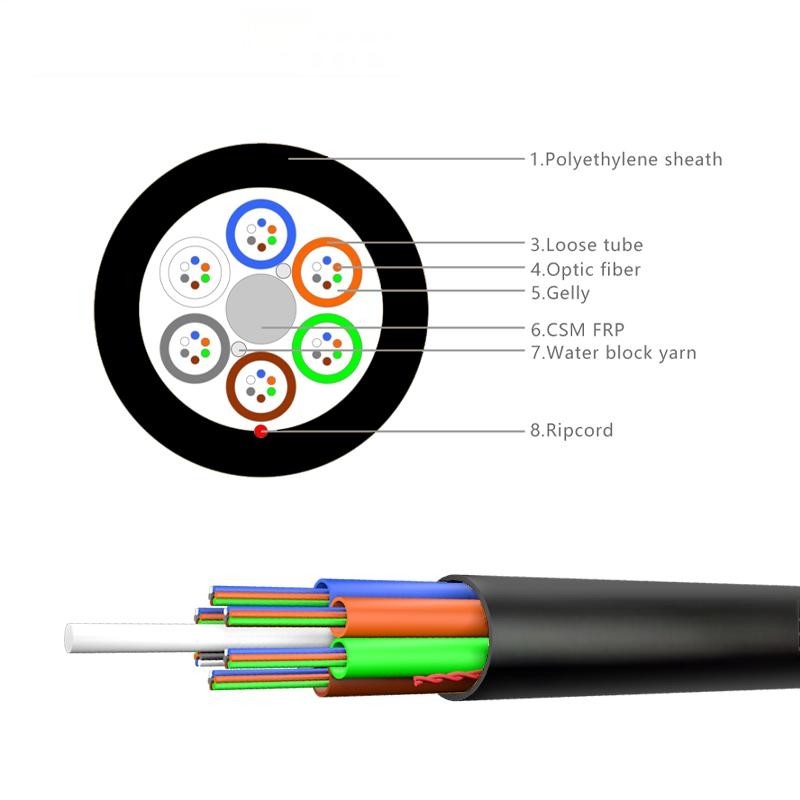

GCYFY Stranded Loose Tube Air Blown Micro Cable available in 48, 72, and 96 cores configurations.
| Fiber Count | CSM Diameter | Nominal Thickness | Cable Diameter | Cable Weight | Crush Resistance (N) | Bending Radius |
|---|---|---|---|---|---|---|
| 2-12 | 1.4/1.4 | 1.6 | 3.5 | 11 | 150/450 | 10D/20D |
| 14-24 | 1.4/1.4 | 1.6 | 4.1 | 14 | 150/450 | 10D/20D |
| 26-72 | 1.4/1.4 | 1.6 | 5.0 | 22 | 150/450 | 10D/20D |
| 74-96 | 1.4/1.4 | 1.6 | 5.9 | 33 | 150/450 | 10D/20D |
| 98-120 | 1.4/1.4 | 1.6 | 7.0 | 43 | 150/450 | 10D/20D |
| 122-144 | 1.6/1.6 | 1.6 | 7.7 | 52 | 150/450 | 10D/20D |
| 146-216 | 1.6/1.6 | 1.6 | 7.9 | 52 | 150/450 | 10D/20D |
| 218-288 | 1.6/1.6 | 1.6 | 9.0 | 72 | 150/450 | 10D/20D |
| Item | Unit | Specification |
|---|---|---|
| Fiber Type | G652D | |
| Mode Field Diameter (1310nm) | μm | 9.2±0.4 |
| Mode Field Diameter (1550nm) | μm | 10.4±0.8 |
| Cladding Diameter | μm | 125.0±0.1 |
| Cladding Non-Circularity | % | ≤1.0 |
| Core/Cladding Concentricity Error | μm | ≤0.5 |
| Coating Diameter | μm | 245±7 |
| Coating/Cladding Concentricity Error | μm | ≤12 |
| Cable Cut-Off Wavelength | μm | ≤1260 |
| Attenuation Coefficient (1310nm) | db/km | ≤0.36 |
| Attenuation Coefficient (1550nm) | db/km | ≤0.22 |
| Proof Stress Level | kpsi | ≥100 |
Note: All other parameters meet standard ITU-T G.652 specifications
Standard marking includes: COMPANY Fiber cable name, core count, G.652D specification, year, and length.
The marking is printed every 1 meter. "G.652D" indicates ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber.
Custom cable marking available according to client requirements.
