ADSS Fiber Optic Cable All Dielectric PE Sheath Outdoor Aerial

Name: ADSS Fiber Optic Cable All Dielectric PE Sheath Outdoor Aerial
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ADSS

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Outdoor ADSS Optical Fiber Cable, Aerial ADSS Optical Fiber Cable, ADSS Outdoor Aerial Cable


Sheath Material:	PE	Type:	All Dielectirc
Jacket:	Double Jacket/ Single Jacket	Model:	ADSS
Strength Member:	FRP	Central Strength:	Non-Metallic

Sheath Material:	PE
Type:	All Dielectirc
Jacket:	Double Jacket/ Single Jacket
Model:	ADSS
Strength Member:	FRP
Central Strength:	Non-Metallic

ADSS Fiber Optic Cable All Dielectric PE Sheath Outdoor Aerial

Single / Double Jacket ADSS Optical Fiber Cable Outdoor Aerial Cable

Product Specifications

Attribute	Value
Sheath Material	PE
Type	All Dielectric
Jacket	Double Jacket/ Single Jacket
Model	ADSS
Strength Member	FRP
Central Strength	Non-Metallic

Product Overview

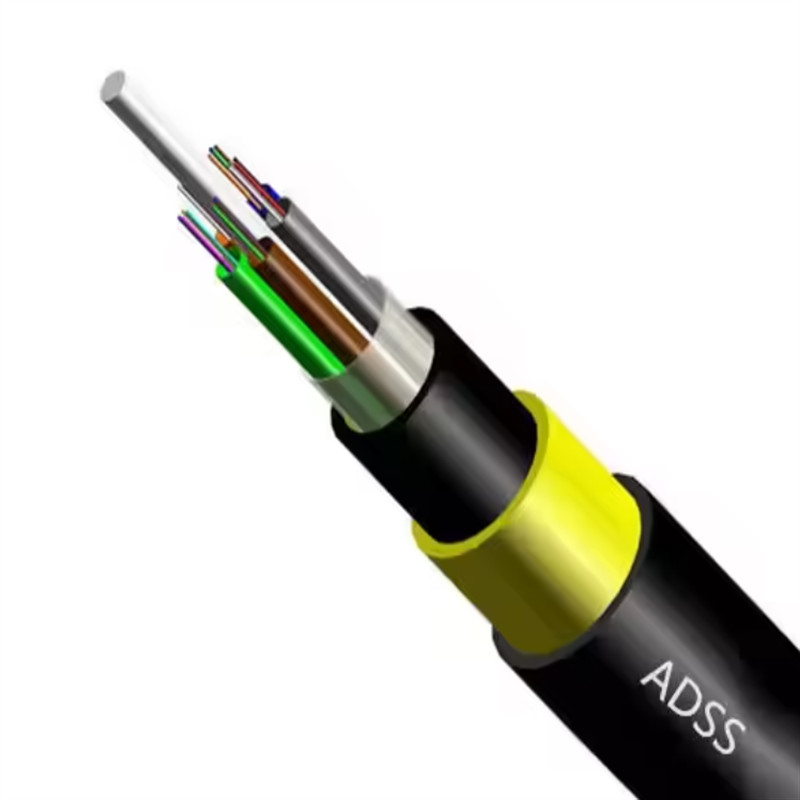

ADSS (All-Dielectric Self-Supporting) cable is a specialized fiber optic cable designed for aerial installation without requiring separate support structures. Its construction features a central tube containing optical fibers, surrounded by protective aramid yarn layers and an outer sheath.

The all-dielectric design makes ADSS cable ideal for high electrical interference areas, including near power lines. Commonly used for long-distance, high-voltage applications such as power line crossings, railway/roadway intersections, and river crossings, its self-supporting nature reduces installation costs and visual impact compared to traditional fiber optic cables.

Key Features

All dielectric non-material strength member
Special gel in the tube offers critical protection for the fibers
FRP central strength members with Dupont aramid yarn filling compound
Excellent AT performance
Stable performance across temperature extremes with anti-aging properties
Lightweight design with small diameter reduces tower loading from ice and wind

Technical Parameters

NO.OF FIBER (CORES)	6/12/24	48	72	96	144	288
NO.OF FIBER (CORES)	16/26/4*6	68/412	6*12	8*12	12*12	24*12
Loose Tube Diameter	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1
FRP central strength member(mm)	2.0	2.0	2.5	2.8	3.7	2.6
PE coated diameter	№	4.2	4.8	7.4
Tear rope(inner sheath)	2	2	2	2	2	2
Thickness of inner sheath(pe)	1.2	1.2	1.2	1.2	1.2	1.2
Out diameter of inner sheath	10.0	10.0	10.0	10.0	10.0	10.9
Reinforcing layer aramid	Domestic Armid Yarns
MAX.span(m)	50/100/120/150
Thickness of outer sheath(pe)	1.8	1.8	1.8	1.8	1.8	1.8
Out diameter of Pe sheath	9.5±0.5	10±0.5	12.2±0.5	13.9±0.5	17.1±0.5	20.2±0.5
Climate condition	No ice, 25m/s max wind speed

Manufacturing Facility

Frequently Asked Questions

1. Why choose us?

We are the manufacturer located in Guangzhou, China, operating since 2011. We primarily serve the domestic market with a workforce of 11-50 professionals.

2. How can we guarantee quality?

We implement strict quality control measures including pre-production samples and final inspection before shipment.

3. Can you send products to my country?

Yes, we can arrange shipping worldwide. If you don't have your own forwarder, we can assist with logistics.

4. Can you do OEM for me?

We accept all OEM orders. Contact us with your design requirements for a competitive quote and sample production.

5. What services can we provide?

Accepted Delivery Terms: FOB, CIF, EXW

Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF

Accepted Payment Type: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow

Languages: English, Chinese
