ADSS Fiber Optic Cable Double Sheath Aramid Yarn FRP Span 80-120M

Name: ADSS Fiber Optic Cable Double Sheath Aramid Yarn FRP Span 80-120M
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ADSS

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Aramid Yarn ADSS Optical Cable, Double Sheath ADSS Optical Cable, FRP ADSS Optical Cable


Sheath Material:	PE	Type:	All Dielectirc
Jacket:	Double Jacket/ Single Jacket	Model:	ADSS
Strength Member:	FRP	Central Strength Member:	Non-Metallic

Sheath Material:	PE
Type:	All Dielectirc
Jacket:	Double Jacket/ Single Jacket
Model:	ADSS
Strength Member:	FRP
Central Strength Member:	Non-Metallic

ADSS Fiber Optic Cable Double Sheath Aramid Yarn FRP Span 80-120M

Aramid Yarn ADSS Optical Cable Double Sheath With FRP Span 80-120M

Product Attributes

Attribute	Value
Sheath Material	PE
Type	All Dielectric
Jacket	Double Jacket/ Single Jacket
Model	ADSS
Strength Member	FRP
Central Strength Member	Non-Metallic

Product Description

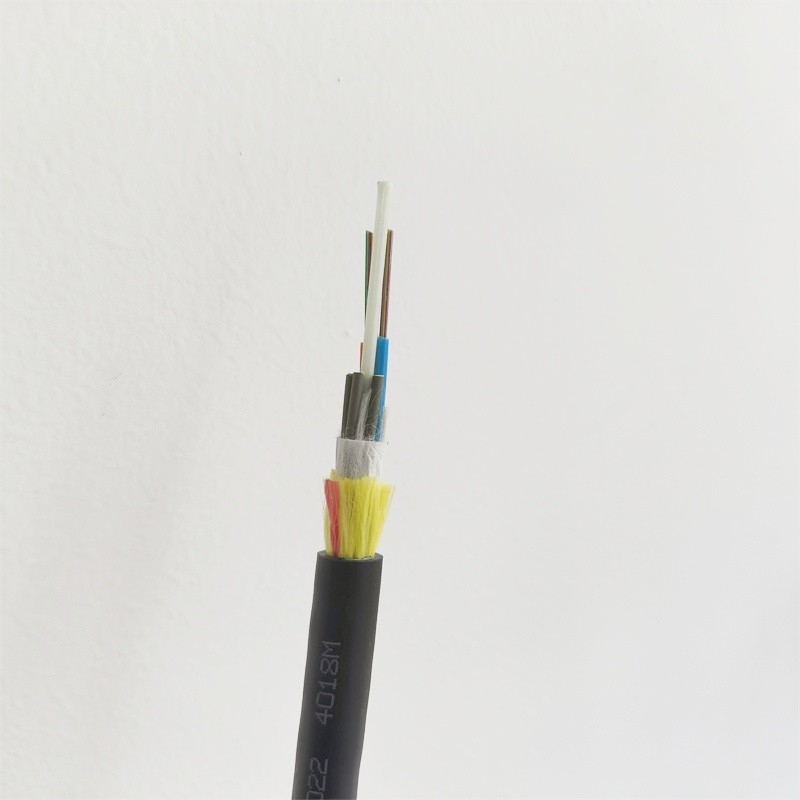

All-Dielectric Self-Supporting (ADSS) cables are a class of fiber-optic cables that facilitate installation without auxiliary messenger wires or support infrastructure. The cable's composition includes central tube(s) filled with optical fibers, enveloped by aramid yarn layers and an outer sheath. The complete dielectric composition makes it ideal for areas with substantial electrical interference, such as near power lines.

ADSS cables are commonly deployed in long-distance, high-voltage applications including overhead power line crossings, railway and highway intersections, and river crossings. The self-supporting feature simplifies installation and reduces costs compared to traditional fiber-optic cables by eliminating additional support structures. ADSS cables also minimize the visual impact of overhead installations.

Details Images

Characteristics

Non-metallic all-dielectric strength members provide structural integrity without metallic reinforcement
Proprietary gel within the tube safeguards fibers with essential protection
FRP central members with aramid yarn filling fortify the cable's construction
Superior attenuation with excellent AT performance
Consistent performance across temperature ranges with resistance to aging and environmental stressors

Product Parameters

NO.OF FIBER (CORES)	6/12/24	48	72	96	144	288
NO.OF FIBER (CORES)	16/26/4*6	68/412	6*12	8*12	12*12	24*12
Loose Tube Diameter	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1	2.0±0.1
FRP central strength member(mm)	2.0	2.0	2.5	2.8	3.7	2.6
PE coated diameter	№	4.2	4.8	7.4
Tear rope(inner sheath)	2	2	2	2	2	2
Thickness of inner sheath(pe)	1.2	1.2	1.2	1.2	1.2	1.2
Out diameter of inner sheath	10.0	10.0	10.0	10.0	10.0	10.9
Reinforcing layer aramid	Domestic Aramid Yarns	Domestic Aramid Yarns	Domestic Aramid Yarns	Domestic Aramid Yarns	Domestic Aramid Yarns	Domestic Aramid Yarns
MAX.span(m)	50/100/120/150
Thickness of outer sheath(pe)	1.8	1.8	1.8	1.8	1.8	1.8
Out diameter of Pe sheath	9.5±0.5	10±0.5	12.2±0.5	13.9±0.5	17.1±0.5	20.2±0.5
Climate condition	No ice, 25m/s max wind speed
