Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: ADSS
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25 days
Payment Terms: 30% TT as deposit, 70% Balance before shipping
Supply Ability: 100km
|
Type:
|
ADSS Cable
|
Strength Member:
|
FRP
|
Central Strength:
|
Non-Metallic
|
Material Jacket:
|
Black Polyethylene (PE)
|
Installation:
|
Self- Supporting Aerial
|
|
Type:
|
ADSS Cable
|
|
Strength Member:
|
FRP
|
|
Central Strength:
|
Non-Metallic
|
|
Material Jacket:
|
Black Polyethylene (PE)
|
|
Installation:
|
Self- Supporting Aerial
|
| Attribute | Value |
|---|---|
| Type | ADSS Cable |
| Strength Member | FRP |
| Central Strength | Non-Metallic |
| Material Jacket | Black Polyethylene (PE) |
| Installation | Self-supporting Aerial |

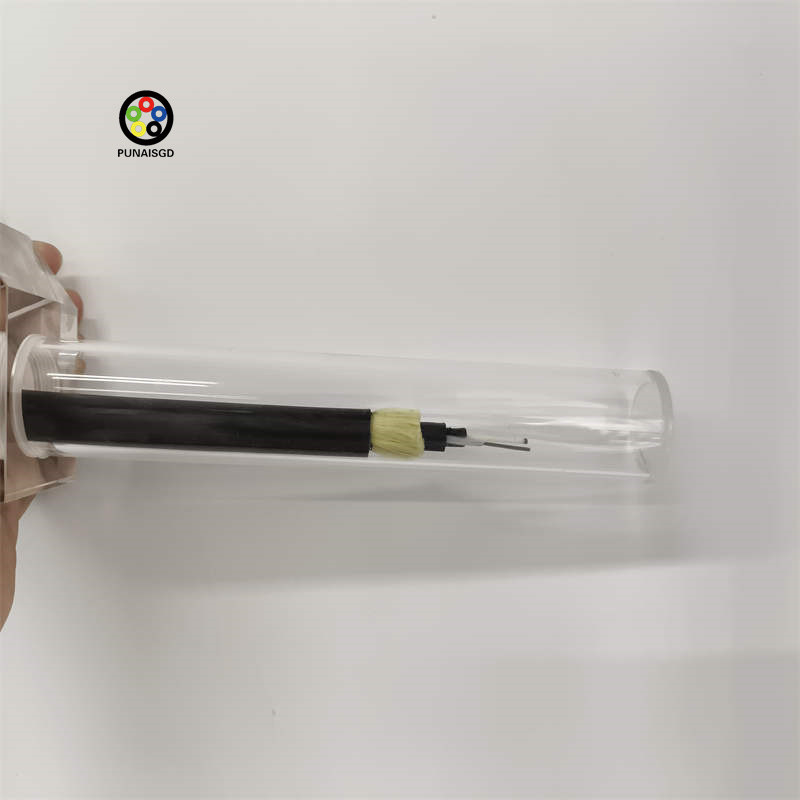

All-Dielectric Self-Supporting (ADSS) fiber-optic cables are designed for independent installation without requiring additional messenger wires or support systems. Featuring a central conduit for optical fibers, reinforced with aramid fiber layers and an outer protective sheath, these cables are ideal for environments with significant electrical interference, such as near power lines.
ADSS cables are commonly used for long-distance, high-voltage applications including installations over power lines, railways, highways, and rivers. Their self-supporting design simplifies installation and reduces costs compared to traditional fiber-optic cables by eliminating the need for separate support structures. Additionally, ADSS cables offer a visually discreet solution for overhead fiber-optic installations.
| NO. OF FIBER (CORES) | 6/12/24 | 48 | 72 | 96 | 144 | 288 |
|---|---|---|---|---|---|---|
| NO. OF FIBER (CORES) | 1*6/2*6/4*6 | 6*8/4*12 | 6*12 | 8*12 | 12*12 | 24*12 |
| Loose Tube Diameter | 2.0±0.1 | 2.0±0.1 | 2.0±0.1 | 2.0±0.1 | 2.0±0.1 | 2.0±0.1 |
| FRP central strength member(mm) | 2.0 | 2.0 | 2.5 | 2.8 | 3.7 | 2.6 |
| PE coated diameter | № | 4.2 | 4.8 | 7.4 | ||
| Tear rope(inner sheath) | 2 | 2 | 2 | 2 | 2 | 2 |
| Thickness of inner sheath(pe) | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| Out diameter of inner sheath | 10.0 | 10.0 | 10.0 | 10.0 | 10.0 | 10.9 |
| Reinforcing layer aramid | Domestic Armid Yarns | |||||
| MAX. span(m) | 50/100/120/150 | |||||
| Thickness of outer sheath(pe) | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Out diameter of Pe sheath | 9.5±0.5 | 10±0.5 | 12.2±0.5 | 13.9±0.5 | 17.1±0.5 | 20.2±0.5 |
| Climate condition | No ice, 25m/s max wind speed | |||||
We are the manufacturer located in Guangzhou, China, operating since 2011. Our factory employs 11-50 professionals and serves the domestic market exclusively.
We implement strict quality control measures including pre-production samples and final inspection before shipment.
Yes, we can ship worldwide. If you don't have your own shipping forwarder, we can arrange transportation for you.
We accept all OEM orders. Contact us with your design requirements and we'll provide competitive pricing and samples.
Delivery Terms: FOB, CIF, EXW
Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Methods: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow
Languages: English, Chinese
