GYTS Outdoor Fiber Optic Cable Steel Armored PE Sheath G652D

Name: GYTS Outdoor Fiber Optic Cable Steel Armored PE Sheath G652D
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTS
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTS

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    g652d duct fiber optic cable, g652d outdoor fiber optic cable


Item:	GYTS	Strength Member:	Steel
Sheath Material:	PE	Armoured:	Steel Tape
Fiber Mode:	Multi Mode	Fiber:	G652D, G657A1

Item:	GYTS
Strength Member:	Steel
Sheath Material:	PE
Armoured:	Steel Tape
Fiber Mode:	Multi Mode
Fiber:	G652D, G657A1

GYTS Outdoor Fiber Optic Cable Steel Armored PE Sheath G652D

GYTS Fiber Optical Cable Outdoor Duct and Aerial Cable G652D

Product Specifications

Attribute	Value
Item	GYTS
Strength member	Steel
Sheath material	PE
Armoured	Steel tape
Fiber mode	Multi mode
Fiber	G652D, G657A1

Product Overview

Equipped with an armored loose tube and a unified jacket/armor system, GYTS fiber optic cables are capable of accommodating a significant number of fibers. Their design ensures they are both pliable and multifunctional, fitting for the stringent demands of modern installations, whether in ducts or buried conduits.

Key Features

Excellent mechanical characteristics and consistent performance across temperature variations
Loose tube material with superior hydrolysis resistance and increased strength
Single steel wire core provides enhanced resistance to axial loads
Protective PE sheath offers defense against harmful UV rays
Fully packed cable core eliminates gaps for maximum protection
Corrugated steel tape wrapping provides robust crushing protection

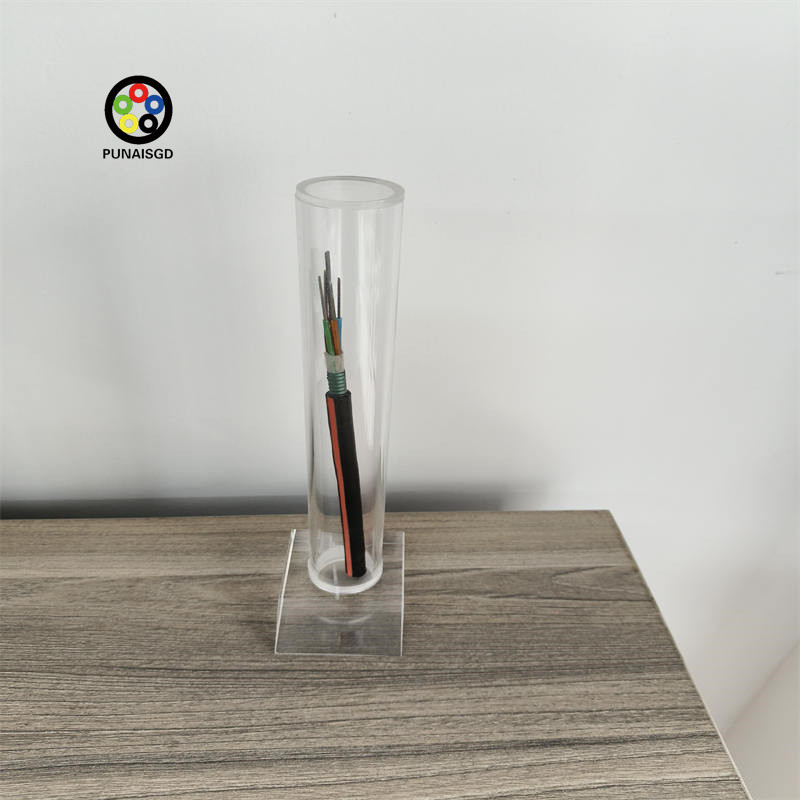

Cable Structure

Metallic (non-metallic) strength member
Loose tube stranded design
Corrugated steel tape armored
Gel filling for protection
Polyethylene sheath for outdoor communication applications

Technical Parameters

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal thickness of outer jacket (mm)	Cable diameter/height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.4	9.0±0.3	80
6	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
8	1+5	8	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
12	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
24	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	85
36	1+6	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	100
48	1+5	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	105
60	1+5	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	110
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.6±0.3	122
96	1+8	12	2.2±0.1	1.6/3.5	1.6	12.0±0.3	160
144	1+12	12	2.2±0.1	2.0/6.4	1.8	15.6±0.3	240
216	1+6+12	12	2.2±0.1	2.2/2.2	1.8	16.0±0.3	270
288	1+9+15	12	2.2±0.1	2.2/4.3	2.0	18.2±0.3	282
