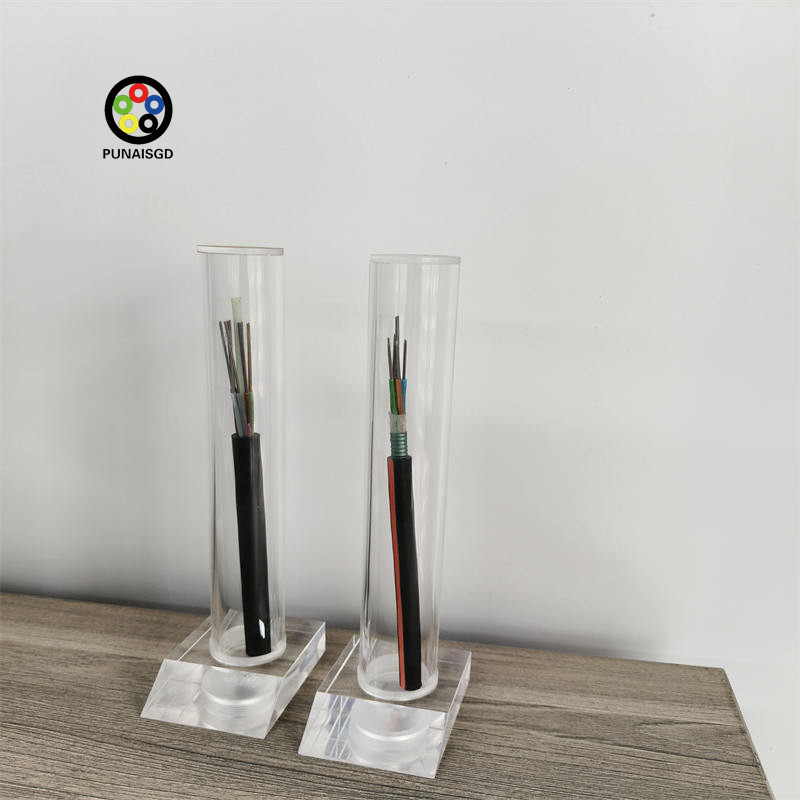

GYTS Steel Tape Armored Outdoor Fiber Optic Cable

Name: GYTS Steel Tape Armored Outdoor Fiber Optic Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTS
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTS

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    g652d fiber drop cable, g652d fiber optic cable


Item:	GYTS	Strength Member:	Steel
Sheath Material:	PE	Armoured:	Steel Tape
Fiber Mode:	Multi Mode	Fiber:	G652D, G657A1

Item:	GYTS
Strength Member:	Steel
Sheath Material:	PE
Armoured:	Steel Tape
Fiber Mode:	Multi Mode
Fiber:	G652D, G657A1

GYTS Steel Tape Armored Outdoor Fiber Optic Cable

Outdoor Fiber Optic Cable GYTS Steel Tape Armored

Product Specifications

Item	GYTS
Strength Member	Steel
Sheath Material	PE
Armoured	Steel Tape
Fiber Mode	Multi Mode
Fiber	G652D, G657A1

Product Description

The GYTS fiber optic cables feature an armored construction around a loose tube with a singular jacket/armor, designed to provide substantial fiber capacity. These cables offer exceptional adaptability and versatility, meeting rigorous installation standards for both duct and underground conduit applications.

Key Features

Exceptional mechanical properties and temperature stability for diverse applications
Highly resistant loose tube material with superior hydrolysis resistance
Steel wire backbone provides excellent axial stress resistance
PE sheath offers UV radiation protection
Densely filled cable core ensures structural integrity
Longitudinal corrugated steel tape delivers superior compression resistance

Cable Structure

Metallic (non-metallic) strength member
Loose tube stranded construction
Corrugated steel tape armored
Gel filling for protection
Polyethylene sheath for outdoor communication use

Technical Parameters

Fiber Count	Structure	Fibers per Tube	Loose Tube Diameter (mm)	CSM Diameter/Pad Diameter (mm)	Nominal Thickness of Outer Jacket (mm)	Cable Diameter/Height (mm)	Cable Weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.4	9.0±0.3	80
6	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
8	1+5	8	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
12	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
24	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	85
36	1+6	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	100
48	1+5	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	105
60	1+5	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	110
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.6±0.3	122
96	1+8	12	2.2±0.1	1.6/3.5	1.6	12.0±0.3	160
144	1+12	12	2.2±0.1	2.0/6.4	1.8	15.6±0.3	240
216	1+6+12	12	2.2±0.1	2.2/2.2	1.8	16.0±0.3	270
288	1+9+15	12	2.2±0.1	2.2/4.3	2.0	18.2±0.3	282
