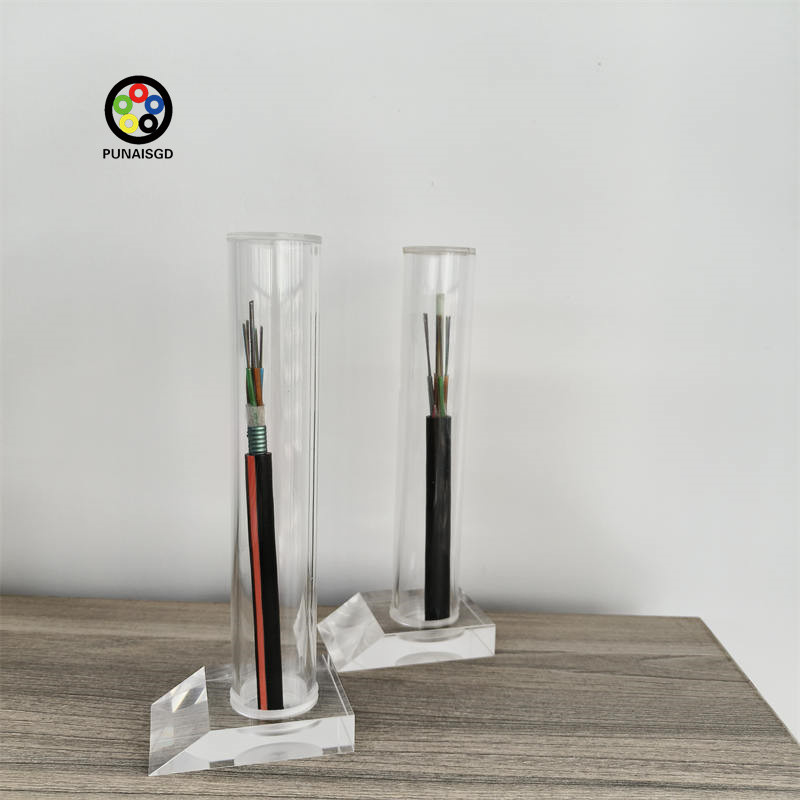

GYTS Outdoor Armored Fiber Optic Cable Steel Tape PE Sheath

Name: GYTS Outdoor Armored Fiber Optic Cable Steel Tape PE Sheath
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTS
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTS

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    armoured underground duct cable, armoured underground fiber optic cable, g652d underground duct cable


Item:	GYTS	Strength Member:	Steel
Sheath Material:	PE	Armoured:	Steel Tape
Fiber Mode:	Multi Mode	Fiber:	G652D, G657A1

Item:	GYTS
Strength Member:	Steel
Sheath Material:	PE
Armoured:	Steel Tape
Fiber Mode:	Multi Mode
Fiber:	G652D, G657A1

GYTS Outdoor Armored Fiber Optic Cable Steel Tape PE Sheath

GYTS Fiber Optical Cable - Outdoor Armoured Underground Duct Cable

Product Attributes

Attribute	Value
Item	GYTS
Strength member	Steel
Sheath material	PE
Armoured	Steel tape
Fiber mode	Multi mode
Fiber	G652D, G657A1

Product Description

GYTS fiber optic cables feature a robust armored loose tube and single jacket/armor design, delivering ample fiber count. Their configuration ensures adaptability and versatility, meeting the demanding requirements of modern installation scenarios including ducts and underground conduits.

Key Features

Outstanding mechanical attributes and temperature resilience for broad operational demands
Loose tube composition features hydrolysis resistance and elevated toughness
Single steel wire central strength element designed to endure axial weight
PE sheath provides UV radiation protection to preserve cable integrity
Cable core is thoroughly filled to eliminate hollow spaces
Longitudinal corrugated steel tape reinforcement for formidable crush resistance

Cable Structure

Metallic (non-metallic) strength member
Loose tube stranded
Corrugated steel tape armored
Gel filling
Polyethylene sheath outdoor cable for communication purposes

Product Parameters

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal thickness of outer jacket (mm)	Cable diameter/height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.4	9.0±0.3	80
6	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
8	1+5	8	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
12	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
24	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	85
36	1+6	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	100
48	1+5	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	105
60	1+5	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	110
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.6±0.3	122
96	1+8	12	2.2±0.1	1.6/3.5	1.6	12.0±0.3	160
144	1+12	12	2.2±0.1	2.0/6.4	1.8	15.6±0.3	240
216	1+6+12	12	2.2±0.1	2.2/2.2	1.8	16.0±0.3	270
288	1+9+15	12	2.2±0.1	2.2/4.3	2.0	18.2±0.3	282
