Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: GYTS
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25 days
Payment Terms: 30% TT as deposit, 70% Balance before shipping
Supply Ability: 100km
|
Item:
|
GYTS
|
Strength Member:
|
Steel
|
Sheath Material:
|
PE
|
Armoured:
|
Steel Tape
|
Fiber Mode:
|
Multi Mode
|
Fiber:
|
G652D, G657A1
|
|
Item:
|
GYTS
|
|
Strength Member:
|
Steel
|
|
Sheath Material:
|
PE
|
|
Armoured:
|
Steel Tape
|
|
Fiber Mode:
|
Multi Mode
|
|
Fiber:
|
G652D, G657A1
|
| Attribute | Value |
|---|---|
| Item | GYTS |
| Strength member | Steel |
| Sheath material | PE |
| Armoured | Steel tape |
| Fiber mode | Multi mode |
| Fiber | G652D, G657A1 |

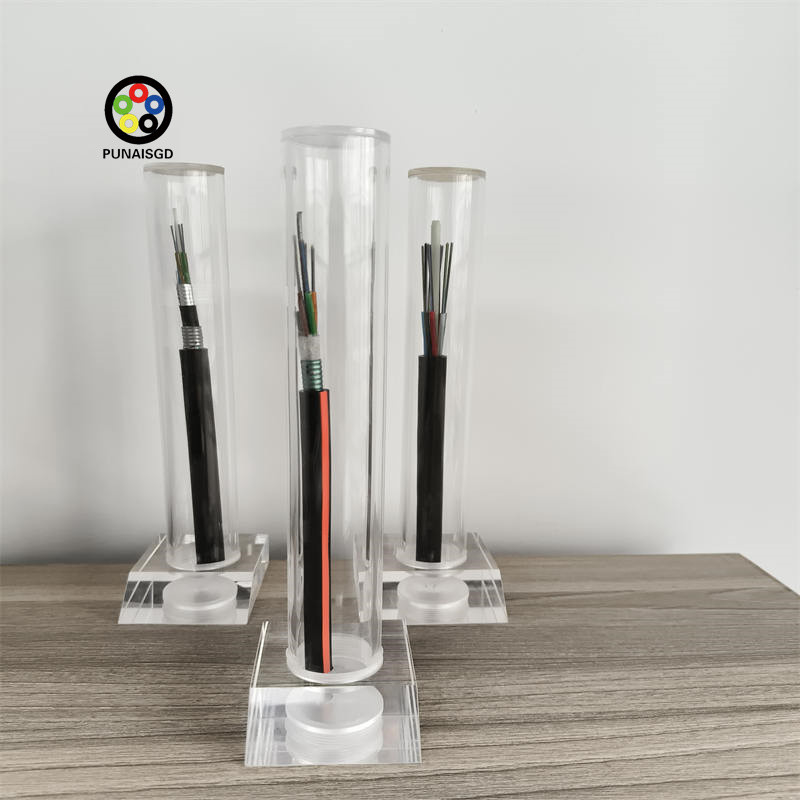

GYTS fiber optic cables feature an armored loose tube design with a singular jacket/armor construction. Engineered for flexibility and adaptability, these cables are built to withstand demanding installation conditions, making them suitable for both duct and underground conduit environments.
| Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter/pad diameter (mm) | Nominal thickness of outer jacket (mm) | Cable diameter/height (mm) | Cable weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 80 |
| 6 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 80 |
| 8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 80 |
| 12 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 80 |
| 24 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 85 |
| 36 | 1+6 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.7±0.3 | 100 |
| 48 | 1+5 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.7±0.3 | 105 |
| 60 | 1+5 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.7±0.3 | 110 |
| 72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.6±0.3 | 122 |
| 96 | 1+8 | 12 | 2.2±0.1 | 1.6/3.5 | 1.6 | 12.0±0.3 | 160 |
| 144 | 1+12 | 12 | 2.2±0.1 | 2.0/6.4 | 1.8 | 15.6±0.3 | 240 |
| 216 | 1+6+12 | 12 | 2.2±0.1 | 2.2/2.2 | 1.8 | 16.0±0.3 | 270 |
| 288 | 1+9+15 | 12 | 2.2±0.1 | 2.2/4.3 | 2.0 | 18.2±0.3 | 282 |
We are a manufacturer located in Guangzhou, China, operating since 2011. Our factory employs 11-50 people and serves domestic markets exclusively.
We conduct pre-production sampling before mass production and perform final inspections before shipment.
Yes, we can ship worldwide. If you don't have your own shipping forwarder, we can assist with logistics.
We accept all OEM orders. Contact us with your design requirements and we'll provide a competitive quote and samples.
Delivery Terms: FOB, CIF, EXW
Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Methods: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow
Languages: English, Chinese
