Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH

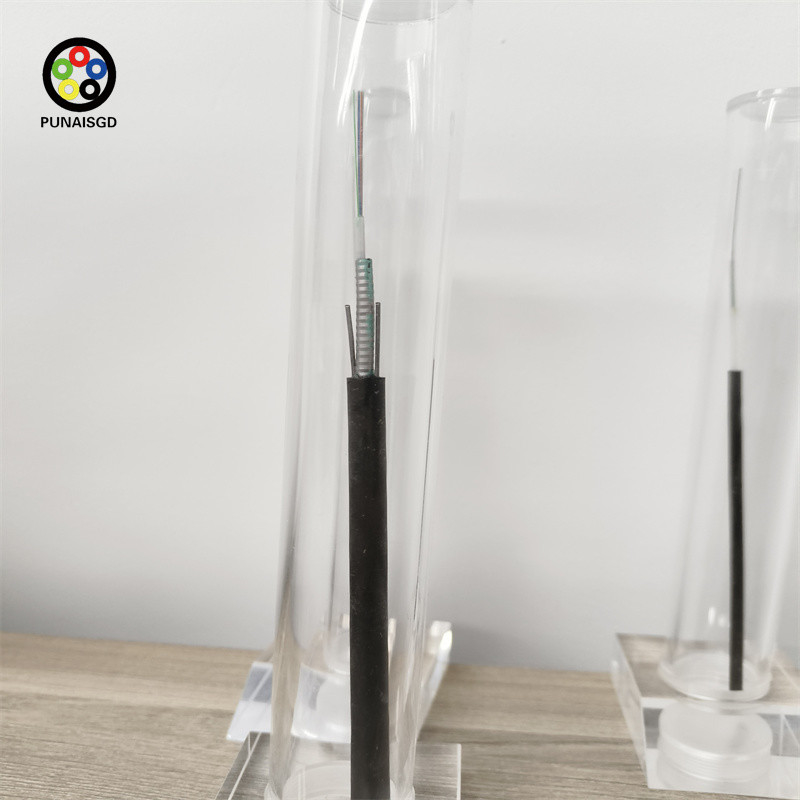

Model Number: GYXTW
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25 days
Payment Terms: 30% TT as deposit, 70% Balance before shipping
Supply Ability: 100km
|
Armour Material:
|
Corrugated Steel Tape Armoured
|
Core:
|
2~24 Core
|
Fiber Mode:
|
Single Mode
|
Strength Member Material:
|
Steel Wire
|
Single Armour Material:
|
Corrugated Aluminium Tape
|
Outer Jacket Materail:
|
PE
|
|
Armour Material:
|
Corrugated Steel Tape Armoured
|
|
Core:
|
2~24 Core
|
|
Fiber Mode:
|
Single Mode
|
|
Strength Member Material:
|
Steel Wire
|
|
Single Armour Material:
|
Corrugated Aluminium Tape
|
|
Outer Jacket Materail:
|
PE
|
| Attribute | Value |
|---|---|
| Armour Material | Corrugated Steel Tape Armoured |
| Core | 2~24 core |
| Fiber Mode | Single Mode |
| Strength Member Material | Steel Wire |
| Single Armour Material | Corrugated aluminium tape |
| Outer Jacket Material | PE |
| Fiber count | Structure | Fibers per tube | Loose tube diameter(mm) | CSM diameter/pad diameter (mm) | Nominal Thickness of outer jacket (mnm) | Cable diameter/ Height (m) | Cable weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 2 | 1 | 2 | 1.7±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 57 |
| 4 | 1 | 4 | 1.85±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 58 |
| 6 | 1 | 6 | 1.9±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 58 |
| 8 | 1 | 8 | 2.0±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 60 |
| 12 | 1 | 12 | 2.2±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 60 |
