GYTC8S Aerial Figure 8 Fiber Optic Cable for Outdoor Communication

Name: GYTC8S Aerial Figure 8 Fiber Optic Cable for Outdoor Communication
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTC8S
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTC8S

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Figure 8 GYTC8S Fiber Optic Cable, Aerial GYTC8S Fiber Optic Cable, Communication GYTC8S Fiber Optic Cable


Type:	GYTC8S	Aromored:	Steel Tape
Out Sheath Material:	PE	Installation Method:	Aerial
Operating Temperature:	-40°C To +70°C	Application:	Outdoor Aerial Installation

Type:	GYTC8S
Aromored:	Steel Tape
Out Sheath Material:	PE
Installation Method:	Aerial
Operating Temperature:	-40°C To +70°C
Application:	Outdoor Aerial Installation

GYTC8S Aerial Figure 8 Fiber Optic Cable for Outdoor Communication

Aerial Figure 8 GYTC8S Fiber Optic Cable Outdoor For Communication

Product Specifications

Attribute	Value
Type	GYTC8S
Armored	Steel tape
Outer sheath material	PE
Installation Method	Aerial
Operating Temperature	-40°C to +70°C
Application	Outdoor aerial installation

Product Overview

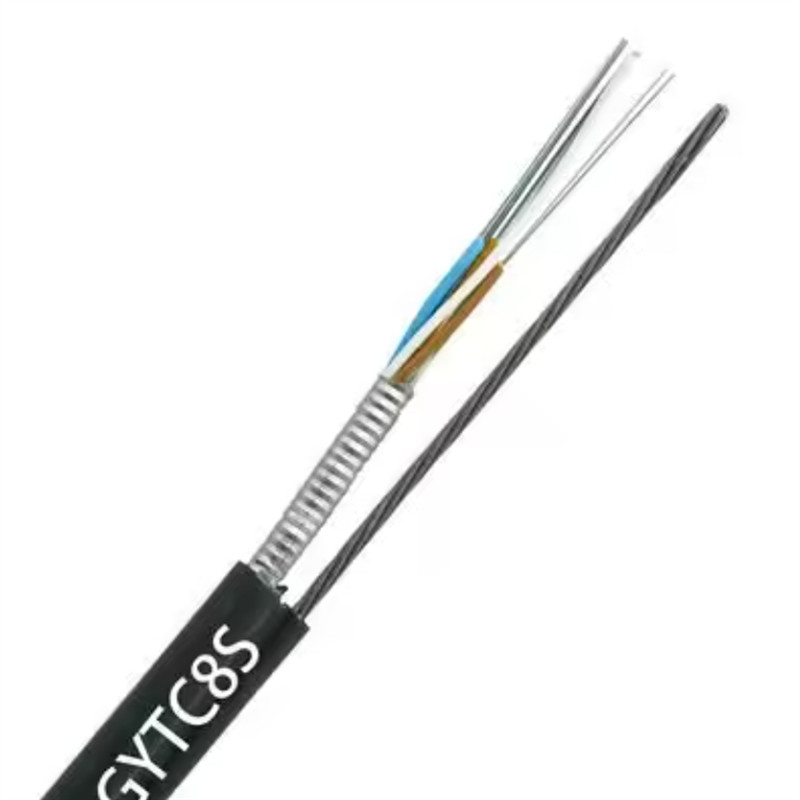

The GYTC8S is a self-supporting outdoor fiber optic cable designed for aerial applications, with excellent moisture and crush resistance that also makes it suitable for duct and buried installations. Its figure 8 structure features a stranded wire metal strength member with polyethylene (PE) sheath, corrugated steel tape armor, and PE outer sheath for superior crush and gunshot resistance.

Construction Details

Stranded loose tube design
Steel wire strength member
Core filler compound
Additional fillers
Phosphating or galvanized steel wire

Technical Parameters

No. of cable	12	24	48
Fiber Model	G.652D
Design (Strength Member + Tube & Filler)	1+5
Loose Tube Material	PBT
Diameter (±0.06)mm	1.9	1.9	1.9
Thickness (±0.03)mm	0.25	0.25	0.30
The Max.Core NO./Tube	6	6	12
Filler Rope Material	LDPE
Diameter (±0.05)mm	1.65	1.65	1.9
NO.	3	1	1
Armoring Material	Steel tape
Thickness(+0.03)mm	0.20
Outer Sheath① Material	MDPE
Thickness (±0.2)mm	1.5
Outer Sheath② Material	MDPE

Manufacturer Information

Frequently Asked Questions

Why choose us?

We are the manufacturer located in Guangzhou, China, operating since 2011 with 11-50 employees, serving domestic and international markets.

How can we guarantee quality?

We conduct pre-production samples before mass production and final inspection before shipment.

Can you send products to my country?

Yes, we can arrange shipping even if you don't have your own forwarder.

Can you do OEM for me?

We accept all OEM orders - contact us with your design for samples and competitive pricing.

What services can we provide?

Delivery Terms: FOB, CIF, EXW
Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Type: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow
Languages: English, Chinese
