GYXTC8S Aerial Self-Supporting Figure 8 Fiber Optic Cable

Name: GYXTC8S Aerial Self-Supporting Figure 8 Fiber Optic Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: GYXTC8S
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYXTC8S

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Armored Aerial Figure 8 Fiber Optic Cable, Overhead Figure 8 Fiber Optic Cable, Self Supporting Aerial Fiber Cable


Type:	GYXTC8S	Installation Method:	Self-supporting
Cable Type:	Figure 8	Application:	Aerial
Jacket Material:	PE	Cable Color:	Black

Type:	GYXTC8S
Installation Method:	Self-supporting
Cable Type:	Figure 8
Application:	Aerial
Jacket Material:	PE
Cable Color:	Black

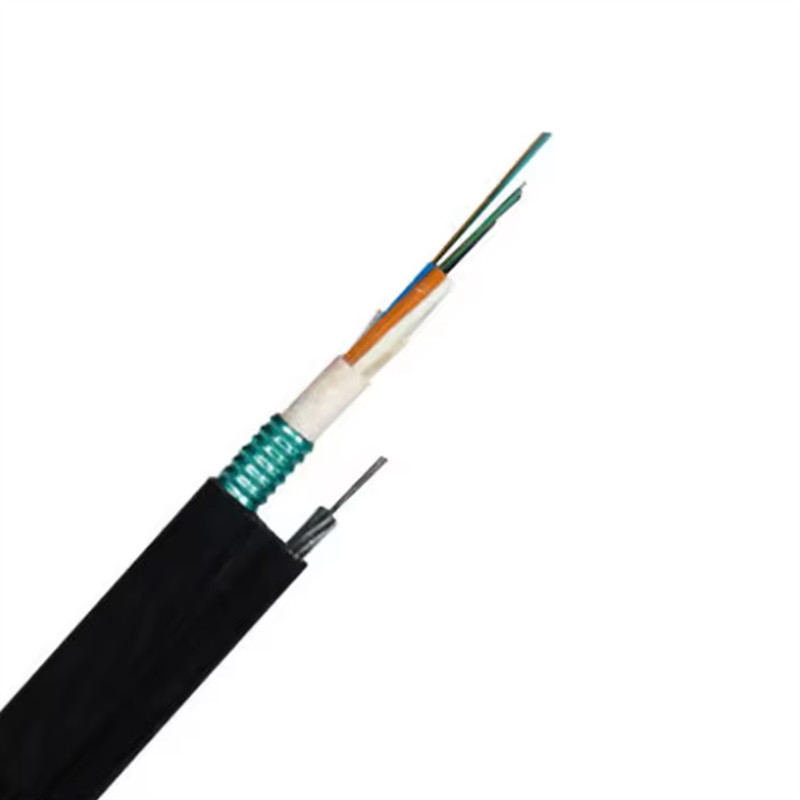

GYXTC8S Aerial Self-Supporting Figure 8 Fiber Optic Cable

GYXTC8S Aerial Figure 8 Fiber Optic Cable Armored Overhead Self Supporting

Product Specifications

Attribute	Value
Type	GYXTC8S
Installation Method	Self-supporting
Cable Type	Figure 8
Application	Aerial
Jacket Material	PE
Cable Color	Black

Product Description

The GYXTC8S cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a water-repellent compound. The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure compact and longitudinal water blocking of the cable, with the steel strand integrated into an 8-shaped type inside the polyethylene sheath.

Detail Images

Key Features

Steel wire strand with very high tensile strength for self-supporting overhead laying, reducing installation costs
Excellent mechanical and temperature properties
Loose tube material with superior hydrolysis resistance and high strength
Special grease-filled tube for fiber protection
Double coated steel strip (PSP) enhances moisture resistance
Compact diameter, lightweight design for easy installation
Long delivery lengths available at competitive prices

Technical Parameters

Parameter	Specification
Fiber Model	G.652D
Loose Tube Material	PBT
Loose Tube Diameter (±0.1mm)	1.8 \| 2.0 \| 2.8
Loose Tube Thickness (±0.05mm)	0.30
Water Blocking Layer	Water Blocking Tape
Armoring Material	Steel Tape
Armoring Thickness (±0.03mm)	0.2
Messenger Wire Material	Galvanized steel strand
Messenger Wire Size (±0.05mm)	2.7mm
Web Material	MDPE
Web Size (±0.1mm)	2.0 × 3.0
Outer Sheath① Material	MDPE
Outer Sheath① Thickness (±0.1mm)	1.2
Outer Sheath② Material	MDPE
Outer Sheath② Thickness (±0.1mm)	1.5
Cable Diameter (±0.5mm)	7.011.5 \| 7.011.5 \| 7.3*13.5
Cable Weight (±10kg)	80 \| 80 \| 94
Min. Bending Radius (Without Tension)	10.0 × Cable-φ
Min. Bending Radius (Under Maximum Tension)	20.0 × Cable-φ
Temperature Range (Installation)	-20~+60℃
Temperature Range (Transport & Storage)	-40~+70℃
Temperature Range (Operation)	-40~+70℃
