Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: GYTC8S
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25 days
Payment Terms: 30% TT as deposit, 70% Balance before shipping
Supply Ability: 100km
|
Type:
|
GYTC8S
|
Aromored:
|
Steel Tape
|
Out Sheath Material:
|
PE
|
Installation Method:
|
Aerial
|
Operating Temperature:
|
-40°C To +70°C
|
Application:
|
Outdoor Aerial Installation
|
|
Type:
|
GYTC8S
|
|
Aromored:
|
Steel Tape
|
|
Out Sheath Material:
|
PE
|
|
Installation Method:
|
Aerial
|
|
Operating Temperature:
|
-40°C To +70°C
|
|
Application:
|
Outdoor Aerial Installation
|
| Type | GYTC8S |
| Armored | Steel tape |
| Outer Sheath Material | PE |
| Installation Method | Aerial |
| Operating Temperature | -40°C to +70°C |
| Application | Outdoor aerial installation |

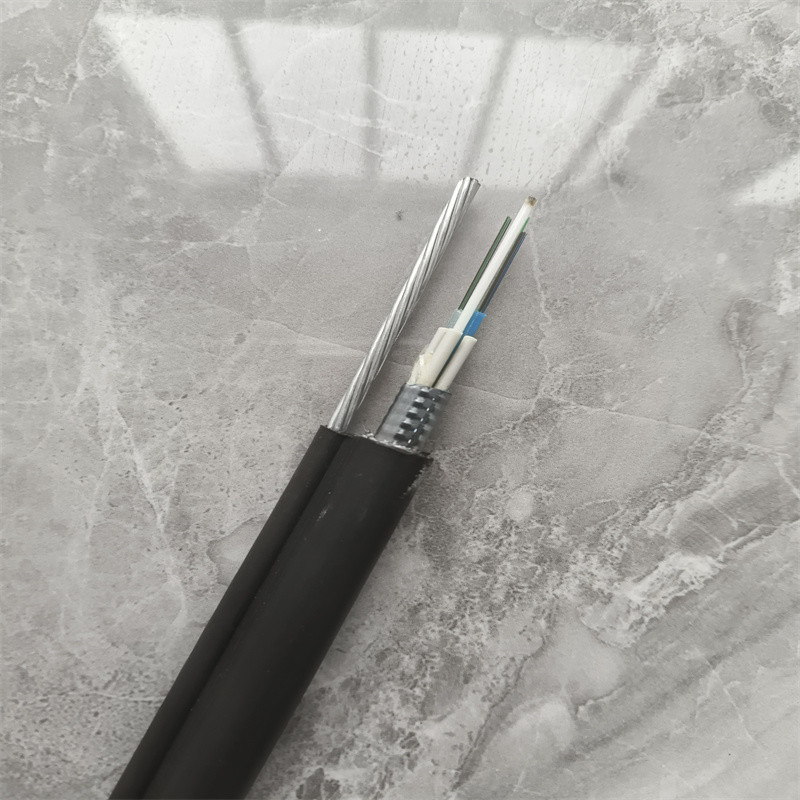

The GYTC8S is a high-performance self-supporting fiber optic cable designed for outdoor environments. Its aerial installation capability is enhanced by superior moisture protection and crush resistance. For underground or duct installations, it features a polyethylene-coated, figure-eight-shaped metallic strength member. The cable's durability comes from a corrugated steel tape and polyethylene outer sheath, providing crush and bullet resistance. A steel-wire strength member at the core increases tensile strength, supported by a loose tube structure and water-blocking mechanism.
The Figure 8 non-armoured fiber cable construction includes: a stranded loose tube for fiber protection, steel wire core for tensile strength, core filler compound for shape retention, structural fillers, and corrosion-resistant steel wire treated with phosphating or galvanization.
| No. of cable | 12 | 24 | 48 |
|---|---|---|---|
| Fiber Model | G.652D | ||
| Design (StrengthMember+Tube&Filler) | 1+5 | ||
| Loose Tube Material | PBT | ||
| Diameter (±0.06)mm | 1.9 | 1.9 | 1.9 |
| Thickness (±0.03)mm | 0.25 | 0.25 | 0.30 |
| The Max.Core NO./Tube | 6 | 6 | 12 |
| Filler Rope Material | LDPE | ||
| Diameter (±0.05)mm | 1.65 | 1.65 | 1.9 |
| NO. | 3 | 1 | 1 |
| Armoring Material | Steel tape | ||
| Thickness(+0.03)mm | 0.20 | ||
| Outer Sheath① Material | MDPE | ||
| Thickness (±0.2)mm | 1.5 | ||
| Outer Sheath② Material | MDPE | ||
We are the manufacturer located in Guangzhou, China, operating since 2011, serving domestic markets. Our factory employs 11-50 skilled professionals dedicated to quality production.
We conduct pre-production samples before mass production and perform final inspections before shipment to ensure consistent quality standards.
Yes, we can arrange shipping worldwide. If you don't have a preferred forwarder, we can assist with logistics solutions.
We accept all OEM orders. Contact us with your design requirements for competitive pricing and sample production.
Delivery Terms: FOB, CIF, EXW
Payment Options: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow
Accepted Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Languages: English, Chinese
