Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: GYTC8S
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25 days
Payment Terms: 30% TT as deposit, 70% Balance before shipping
Supply Ability: 100km
|
Type:
|
GYTC8S
|
Aromored:
|
Steel Tape
|
Out Sheath Material:
|
PE
|
Installation Method:
|
Aerial
|
Operating Temperature:
|
-40°C To +70°C
|
Application:
|
Outdoor Aerial Installation
|
|
Type:
|
GYTC8S
|
|
Aromored:
|
Steel Tape
|
|
Out Sheath Material:
|
PE
|
|
Installation Method:
|
Aerial
|
|
Operating Temperature:
|
-40°C To +70°C
|
|
Application:
|
Outdoor Aerial Installation
|
| Attribute | Value |
|---|---|
| Type | GYTC8S |
| Armored | Steel tape |
| Outer sheath material | PE |
| Installation Method | Aerial |
| Operating Temperature | -40°C to +70°C |
| Application | Outdoor aerial installation |

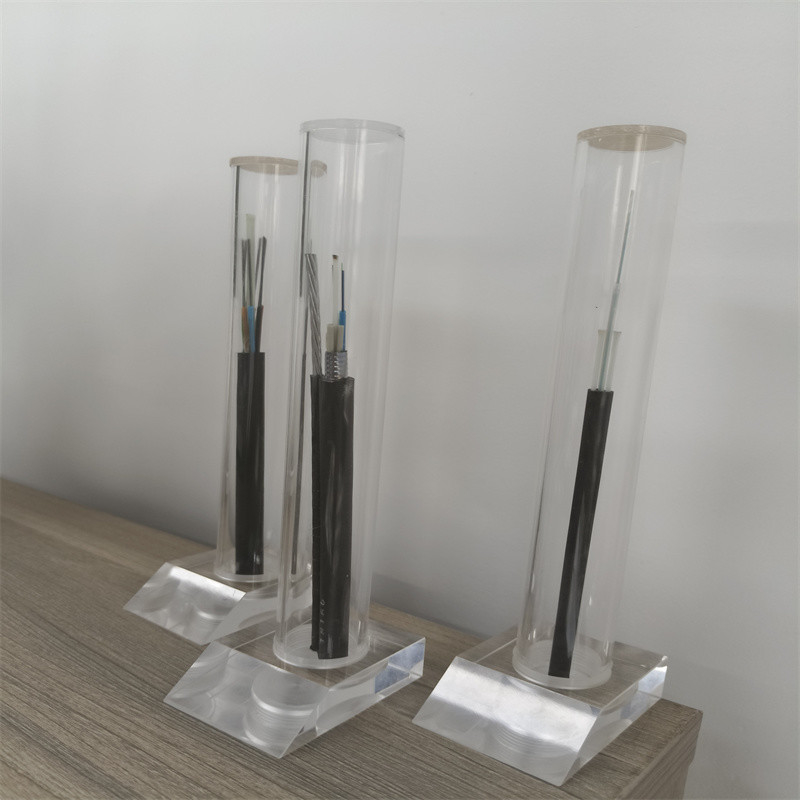

The GYTC8S is a standard self-supporting fiber optic cable designed for outdoor aerial use. Its exceptional moisture and crush resistance also make it suitable for duct and burial applications. The cable features:
The Figure 8 non-armoured fiber cable is constructed with high-quality materials including a stranded loose tube for fiber protection, central steel wire reinforcement, core filler compound for shape consistency, structural fillers, and corrosion-resistant steel wire coating.
| No. of cable | 12 | 24 | 48 |
|---|---|---|---|
| Fiber Model | G.652D | ||
| Design (Strength Member + Tube & Filler) | 1+5 | ||
| Loose Tube Material | PBT | ||
| Diameter (±0.06)mm | 1.9 | 1.9 | 1.9 |
| Thickness (±0.03)mm | 0.25 | 0.25 | 0.30 |
| The Max.Core NO./Tube | 6 | 6 | 12 |
| Filler Rope Material | LDPE | ||
| Diameter (±0.05)mm | 1.65 | 1.65 | 1.9 |
| NO. | 3 | 1 | 1 |
| Armoring Material | Steel tape | ||
| Thickness(+0.03)mm | 0.20 | ||
| Outer Sheath① Material | MDPE | ||
| Thickness (±0.2)mm | 1.5 | ||
| Outer Sheath② Material | MDPE | ||
We are a manufacturer located in Guangzhou, China, operating since 2011. We primarily serve the domestic market with a workforce of 11-50 professionals.
Yes, we can. If you don't have your own shipping forwarder, we can assist with logistics.
We accept all OEM orders. Contact us with your design requirements and we'll provide competitive pricing and samples.
Delivery Terms: FOB, CIF, EXW
Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Methods: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow
Languages: English, Chinese
