Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: GYTC8S
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25 days
Payment Terms: 30% TT as deposit, 70% Balance before shipping
Supply Ability: 100km
|
Type:
|
GYTC8S
|
Aromored:
|
Steel Tape
|
Out Sheath Material:
|
PE
|
Installation Method:
|
Aerial
|
Operating Temperature:
|
-40°C To +70°C
|
Application:
|
Outdoor Aerial Installation
|
|
Type:
|
GYTC8S
|
|
Aromored:
|
Steel Tape
|
|
Out Sheath Material:
|
PE
|
|
Installation Method:
|
Aerial
|
|
Operating Temperature:
|
-40°C To +70°C
|
|
Application:
|
Outdoor Aerial Installation
|
| Attribute | Value |
|---|---|
| Type | GYTC8S |
| Armored | Steel tape |
| Outer Sheath Material | PE |
| Installation Method | Aerial |
| Operating Temperature | -40°C to +70°C |
| Application | Outdoor aerial installation |

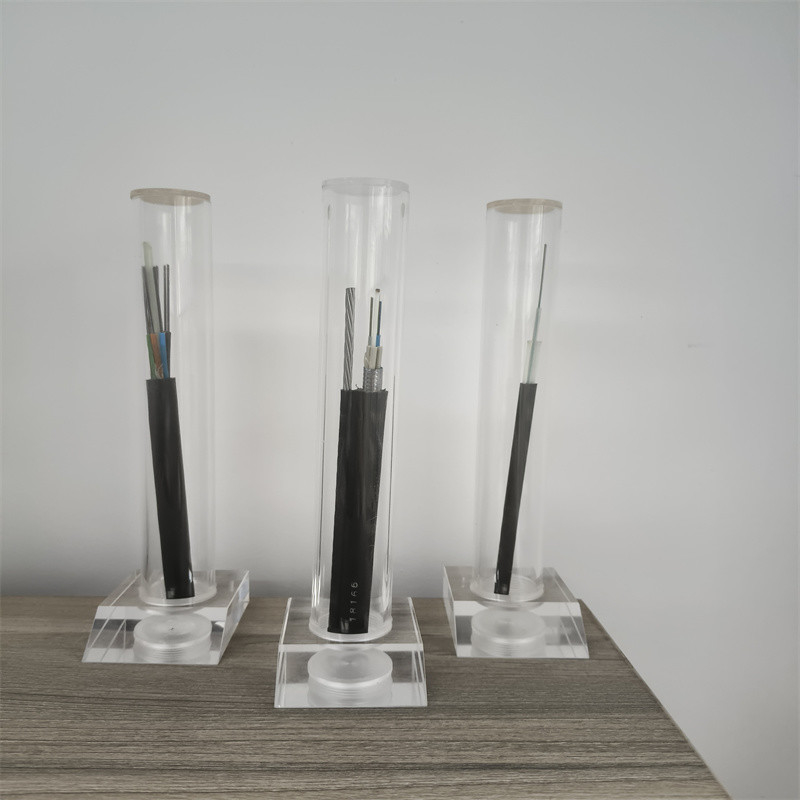

The GYTC8S is a standard outdoor fiber optic cable designed for aerial use with excellent moisture and crush resistance, making it suitable for duct and buried installations. Its structure features:
The Figure 8 non-armoured fiber cable construction includes:
| No. of cable | Specifications | ||
|---|---|---|---|
| 12 | 24 | 48 | |
| Fiber Model | G.652D | ||
| Design (Strength Member + Tube & Filler) | 1+5 | ||
| Loose Tube Material | PBT | ||
| Diameter (±0.06)mm | 1.9 | 1.9 | 1.9 |
| Thickness (±0.03)mm | 0.25 | 0.25 | 0.30 |
| The Max.Core NO./Tube | 6 | 6 | 12 |
| Filler Rope Material | LDPE | ||
| Diameter (±0.05)mm | 1.65 | 1.65 | 1.9 |
| NO. | 3 | 1 | 1 |
| Armoring Material | Steel tape | ||
| Thickness(+0.03)mm | 0.20 | ||
| Outer Sheath① Material | MDPE | ||
| Thickness (±0.2)mm | 1.5 | ||
| Outer Sheath② Material | MDPE | ||
We are the manufacturer located in Guangzhou, China, operating since 2011. We primarily serve the domestic market with a workforce of 11-50 professionals in our factory.
We implement strict quality control measures including pre-production samples before mass production and final inspection before shipment.
Yes, we can ship worldwide. If you don't have your own shipping forwarder, we can assist with logistics.
We accept all OEM orders. Contact us with your design requirements and we'll provide competitive pricing and samples.
