Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: GYTC8S-36B1.3
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25 days
Payment Terms: 30% TT as deposit, 70% Balance before shipping
Supply Ability: 100km
|
Type:
|
GYTC8A Aerial
|
Useful:
|
Figure 8
|
Strength Member:
|
Messenger Wires *7pcs
|
Support:
|
Steel Stranded Supporting
|
Out Sheath Material:
|
PE
|
Aromored:
|
Steel Tape
|
Installation Method:
|
Aerial
|
Operating Temperature:
|
-40°C To +70°C
|
Application:
|
Outdoor Aerial Installation
|
Fiber Color:
|
Blue, Orange, Green, Brown, Slate, White, Red, Black
|
Tensile Strength:
|
6000N
|
|
Type:
|
GYTC8A Aerial
|
|
Useful:
|
Figure 8
|
|
Strength Member:
|
Messenger Wires *7pcs
|
|
Support:
|
Steel Stranded Supporting
|
|
Out Sheath Material:
|
PE
|
|
Aromored:
|
Steel Tape
|
|
Installation Method:
|
Aerial
|
|
Operating Temperature:
|
-40°C To +70°C
|
|
Application:
|
Outdoor Aerial Installation
|
|
Fiber Color:
|
Blue, Orange, Green, Brown, Slate, White, Red, Black
|
|
Tensile Strength:
|
6000N
|
| Attribute | Value |
|---|---|
| Type | GYTC8A Aerial |
| Design | Figure 8 |
| Strength Member | Messenger wires *7pcs |
| Support | Steel Stranded Supporting |
| Outer Sheath Material | PE |
| Armored | Steel tape |
| Installation Method | Aerial |
| Operating Temperature | -40°C to +70°C |
| Application | Outdoor aerial installation |
| Fiber Color | Blue, Orange, Green, Brown, Slate, White, Red, Black |
| Tensile Strength | 6000N |

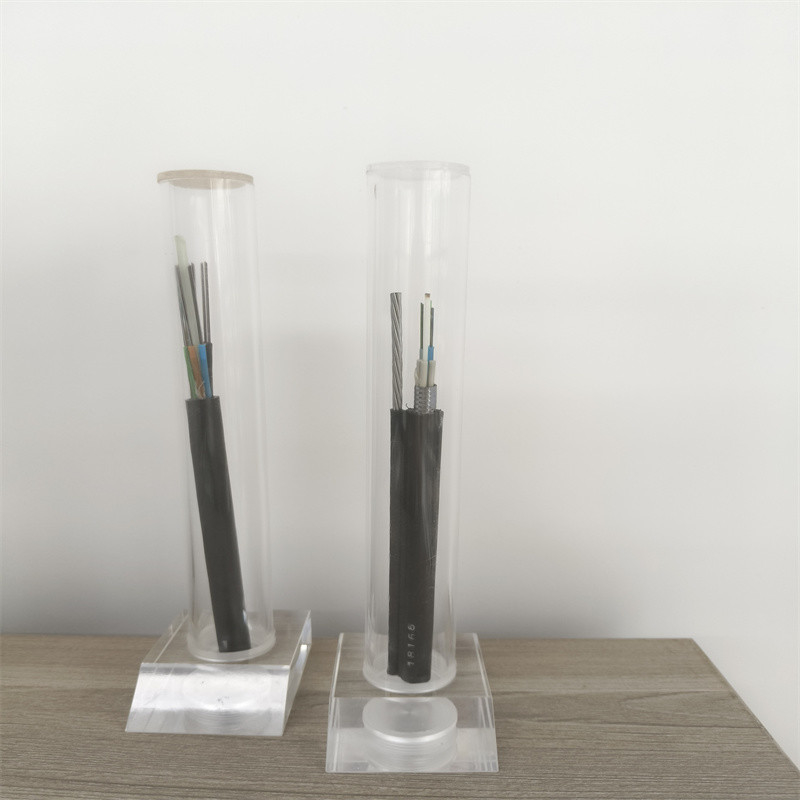

GYTC8S is a self-supporting fiber optic cable designed for outdoor aerial applications. This robust cable features excellent moisture and crush resistance, making it suitable for both aerial and underground installations.
The cable features a figure-eight design with a metallic strength member constructed from stranded wires, protected by a polyethylene sheath. Additional protection comes from corrugated steel tape armor and a polyethylene outer sheath, providing exceptional crush and bullet resistance.
| No. of cable | 12 | 24 | 48 |
|---|---|---|---|
| Fiber Model | G.652D | ||
| Design (StrengthMember+Tube&Filler) | 1+5 | ||
| Loose Tube Material | PBT | ||
| Diameter (±0.06)mm | 1.9 | 1.9 | 1.9 |
| Thickness (±0.03)mm | 0.25 | 0.25 | 0.30 |
| The Max.Core NO./Tube | 6 | 6 | 12 |
| Filler Rope Material | LDPE | ||
| Diameter (±0.05)mm | 1.65 | 1.65 | 1.9 |
| NO. | 3 | 1 | 1 |
| Armoring Material | Steel tape | ||
| Thickness(+0.03)mm | 0.20 | ||
| Outer Sheath① Material | MDPE | ||
| Thickness (±0.2)mm | 1.5 | ||
| Outer Sheath② Material | MDPE | ||
