GYXTC8S Aerial Figure 8 Fiber Optic Cable Self-Supporting PE Jacket

Name: GYXTC8S Aerial Figure 8 Fiber Optic Cable Self-Supporting PE Jacket
Brand: guangzhou fiber cablepuls co ltd
SKU: GYXTC8S
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYXTC8S

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    GYXTC8S Aerial Figure 8 Fiber Optic Cable, Armored Fiber Optic Cable, GYXTC8S Ftth Cable


Type:	GYXTC8S	Installation Method:	Self-supporting
Cable Type:	Figure 8	Application:	Aerial
Jacket Material:	PE	Cable Color:	Black

Type:	GYXTC8S
Installation Method:	Self-supporting
Cable Type:	Figure 8
Application:	Aerial
Jacket Material:	PE
Cable Color:	Black

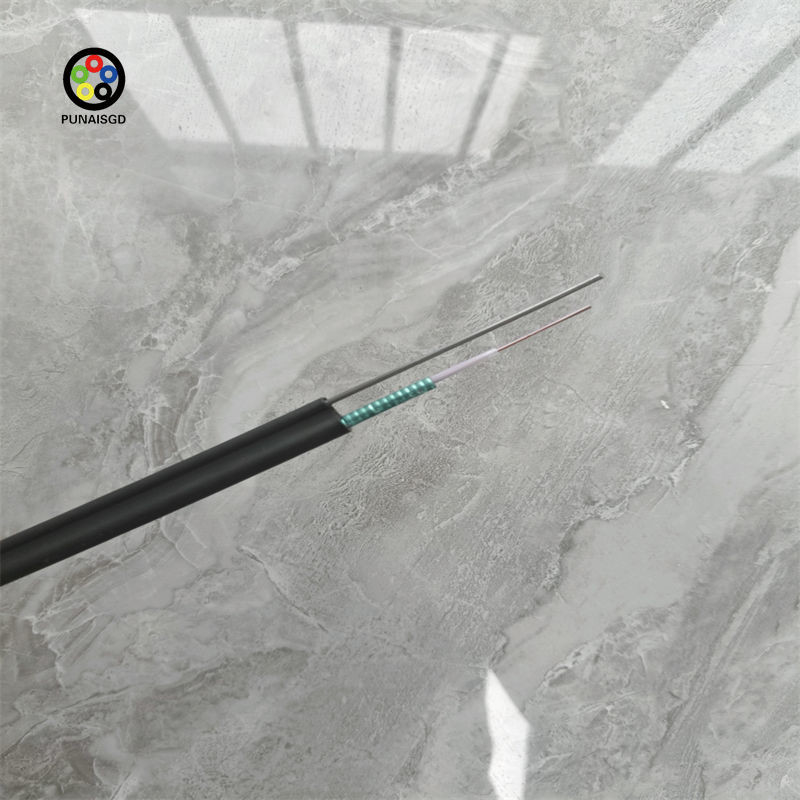

GYXTC8S Aerial Figure 8 Fiber Optic Cable Self-Supporting PE Jacket

GYXTC8S Aerial Figure 8 Fiber Optic Cable Armored Drop Ftth Cable

Product Specifications

Attribute	Value
Type	GYXTC8S
Installation Method	Self-supporting
Cable Type	Figure 8
Application	Aerial
Jacket Material	PE
Cable Color	Black

Product Description

The GYXTC8S type cable incorporates a 250μm optical fiber encased within a slack tube crafted from a high-strength material, which is then saturated with a hydrophobic gel. This tube is subsequently enveloped with a steel tape that has been coated with a plastic on both sides (PSP), running in a longitudinal direction. To ensure the cable's tightness and its ability to prevent water from moving along its length, a water-blocking substance is interposed between the steel tape and the slack tube. The cable also features a steel strand that is arranged in an octagonal configuration, all encased within a polyethylene jacket.

Detail Images

Key Features

The cable's steel wire strand boasts an exceptionally high tensile strength, facilitating self-supporting aerial installation and consequently cutting down on the expenses associated with deployment.
It exhibits superior mechanical and thermal characteristics.
The material of the loose tube is inherently resistant to hydrolysis and possesses considerable strength.
The interior of the tube is filled with a proprietary grease that safeguards the fiber.
The dual-layer steel strip (PSP) enhances the cable's resistance to moisture.
It features a compact diameter, making it lightweight and straightforward to install.
It is available in long lengths and is cost-effective.

Technical Parameters

Fiber Model	G.652D
Loose Tube
Material	PBT
Diameter (±0.1)mm	1.8 \| 2.0 \| 2.8
Thickness (±0.05)mm	0.30
Water Blocking layer(Material)	Water Blocking Tape
Armoring
Material	Steel Tape
Thickness (±0.03)mm	0.2
Messenger Wire
Material	Galvanized steel strand
Size (±0.05)mm	2.7mm
Web
Material	MDPE
Size (±0.1)mm	2.0 ×3.0
Outer Sheath①
Material	MDPE
Thickness (±0.1)mm	1.2
Outer Sheath②
Material	MDPE
Thickness (±0.1)mm	1.5
Cable Diameter (±0.5)mm	7.0* 11.5 \| 7.011.5 \| 7.3 13.5
Cable Weight (±10)kg	80 \| 80 \| 94
Min. bending radius	Without Tension: 10.0 ×Cable-φ Under Maximum Tension: 20.0 ×Cable-φ
Temperature range (℃)	Installation: -20~+60 Transport&Storage: -40~+70 Operation: -40~+70
