GYXTC8S Aerial Self-Supporting Figure 8 Fiber Optic Cable

Name: GYXTC8S Aerial Self-Supporting Figure 8 Fiber Optic Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: GYXTC8S
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYXTC8S

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                            GYXTC8S Fiber Optic Cable, Stranded Steel Fiber Optic Cable, Stranded Self Supporting Fiber Optic Cable


Type:	GYXTC8S	Installation Method:	Self-supporting
Cable Type:	Figure 8	Application:	Aerial Installation
Jacket Material:	PE

Type:	GYXTC8S
Installation Method:	Self-supporting
Cable Type:	Figure 8
Application:	Aerial Installation
Jacket Material:	PE

GYXTC8S Aerial Self-Supporting Figure 8 Fiber Optic Cable

GYXTC8S Fiber Optic Cable Self Supporting With Stranded Steel

Product Specifications

Attribute	Value
Type	GYXTC8S
Installation Method	Self-supporting
Cable Type	Figure 8
Application	Aerial installation
Jacket Material	PE

Product Overview

The GYXTC8S cable features a 250μm fiber core encased in a high-rigidity flexible tube with water-repellent gel. The tube is wrapped with plastic-coated steel tape (PSP) for longitudinal water protection, combined with water-blocking material between layers. The 8-shaped steel strand provides structural support, all protected by a durable polyethylene sheath.

Detailed Features

High-tensile steel wire enables cost-effective overhead self-supporting installations
Excellent mechanical and thermal performance characteristics
Hydrolysis-resistant loose tube material for enhanced durability
Special grease-filled tube provides optimal fiber protection
Double-coated steel strip (PSP) improves moisture resistance
Compact design with lightweight construction for easy installation
Available in long rolls at competitive pricing

Technical Parameters

Parameter	Specification
Fiber Model	G.652D
Loose Tube Material	PBT
Loose Tube Diameter (±0.1mm)	1.8 \| 2.0 \| 2.8
Loose Tube Thickness (±0.05mm)	0.30
Water Blocking Layer	Water Blocking Tape
Armoring Material	Steel Tape
Armoring Thickness (±0.03mm)	0.2
Messenger Wire Material	Galvanized steel strand
Messenger Wire Size (±0.05mm)	2.7mm
Web Material	MDPE
Web Size (±0.1mm)	2.0 ×3.0
Outer Sheath Material	MDPE
Outer Sheath Thickness (±0.1mm)	1.2 \| 1.5
Cable Diameter (±0.5mm)	7.011.5 \| 7.313.5
Cable Weight (±10kg)	80 \| 94
Minimum Bending Radius	10.0×Cable-φ (Without Tension) 20.0×Cable-φ (Under Maximum Tension)
Temperature Range	Installation: -20°C to +60°C Transport/Storage: -40°C to +70°C Operation: -40°C to +70°C

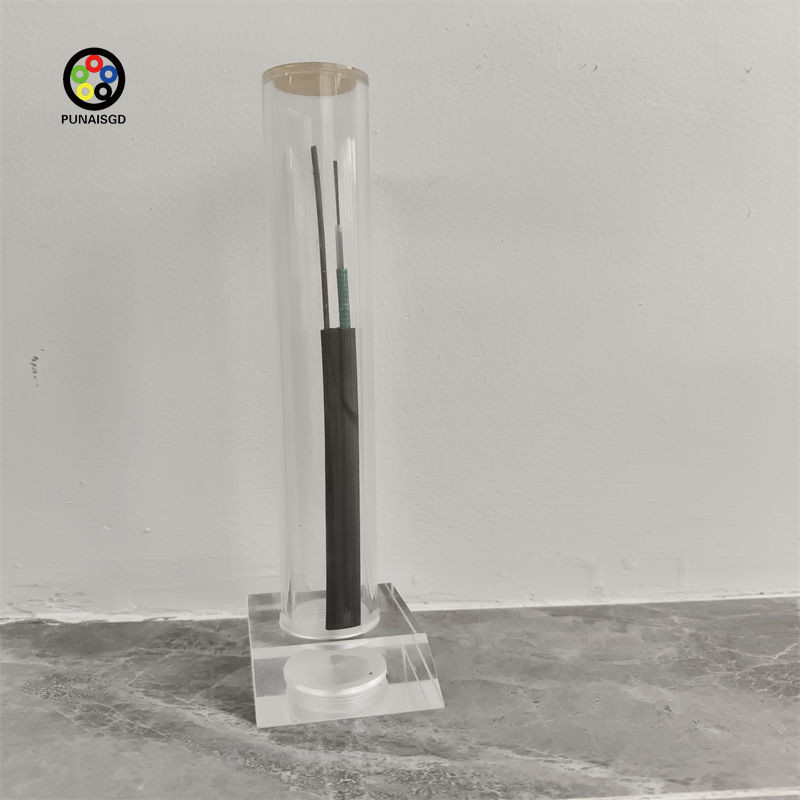

Product Images

Frequently Asked Questions

Why choose us?

We are the manufacturer located in Guangzhou, China, operating since 2011. We serve domestic markets with a team of 11-50 professionals.

How do we guarantee quality?

We conduct pre-production sampling and final inspection before shipment to ensure product quality.

Can you ship to my country?

Yes, we can arrange shipping worldwide. If you don't have a forwarder, we can assist with logistics.

Do you offer OEM services?

We accept all OEM orders. Contact us with your design requirements for samples and competitive pricing.

What services do you provide?

Delivery Terms: FOB, CIF, EXW
Payment Options: T/T, L/C, D/P, D/A, PayPal, Western Union, Escrow
Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Languages: English, Chinese
