GYXTC8S Aerial Figure 8 Fiber Optic Cable with Messenger Wire

Name: GYXTC8S Aerial Figure 8 Fiber Optic Cable with Messenger Wire
Brand: guangzhou fiber cablepuls co ltd
SKU: GYXTC8S
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYXTC8S

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                            Aerial Figure 8 Fiber Optic Cable Waterproof, GYXTC8S Aerial Fiber Optic Cable, GYXTC8S Aerial Fiber Cable


Type:	GYXTC8S	Cable Type:	Figure-8 Aerial Cable
Jacket Material:	PE	Application:	Aerial Installation For Long Distance Communication
Fiber Type:	Single-mode

Type:	GYXTC8S
Cable Type:	Figure-8 Aerial Cable
Jacket Material:	PE
Application:	Aerial Installation For Long Distance Communication
Fiber Type:	Single-mode

GYXTC8S Aerial Figure 8 Fiber Optic Cable with Messenger Wire

GYXTC8S Aerial Figure 8 Fiber Optic Cable Waterproof With Messenger Wire

Product Specifications

Type	GYXTC8S
Cable Type	Figure-8 Aerial Cable
Jacket Material	PE
Application	Aerial installation for long distance communication
Fiber Type	Single-mode

Product Description

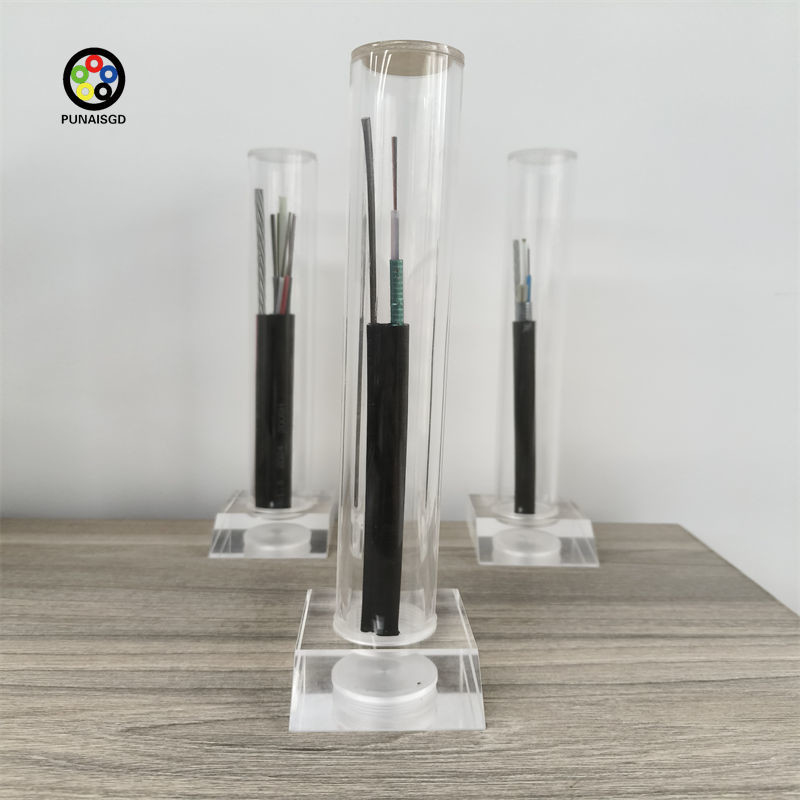

The GYXTC8S cable features a 250μm fiber inserted into a high modulus loose tube filled with water-resistant gel. The tube is protected by a longitudinally oriented, double-sided plastic coated steel strip (PSP) with water-blocking material between the strip and tube. The cable incorporates a steel strand woven into an 8-shaped pattern, all encased in a polyethylene sheath.

Detail Images

Key Features

High tensile strength steel wire strand enables self-supporting aerial deployment, reducing installation costs
Excellent mechanical and temperature performance characteristics
Hydrolysis-resistant loose tube material
Special protective grease filling in the tube
Double-coated steel strip (PSP) enhances moisture resistance
Compact diameter, lightweight design for easy installation
Available in long lengths with competitive pricing

Technical Parameters

Parameter	Value
Fiber Model	G.652D
Loose Tube Material	PBT
Loose Tube Diameter (±0.1mm)	1.8 \| 2.0 \| 2.8
Loose Tube Thickness (±0.05mm)	0.30
Water Blocking Layer	Water Blocking Tape
Armoring Material	Steel Tape
Armoring Thickness (±0.03mm)	0.2
Messenger Wire Material	Galvanized steel strand
Messenger Wire Size (±0.05mm)	2.7mm
Web Material	MDPE
Web Size (±0.1mm)	2.0 × 3.0
Outer Sheath Material	MDPE
Outer Sheath Thickness (±0.1mm)	1.2 \| 1.5
Cable Diameter (±0.5mm)	7.011.5 \| 7.313.5
Cable Weight (±10kg)	80 \| 94
Minimum Bending Radius	10.0 × Cable-φ (Without Tension) 20.0 × Cable-φ (Under Maximum Tension)
Temperature Range (℃)	Installation: -20 to +60 Transport & Storage: -40 to +70 Operation: -40 to +70
