Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: GYXTC8S
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25 days
Payment Terms: 30% TT as deposit, 70% Balance before shipping
Supply Ability: 100km
|
Type:
|
GYXTC8S
|
Installation Method:
|
Self-supporting
|
Cable Type:
|
Figure 8
|
Application:
|
Aerial
|
Jacket Material:
|
PE
|
Cable Color:
|
Black
|
|
Type:
|
GYXTC8S
|
|
Installation Method:
|
Self-supporting
|
|
Cable Type:
|
Figure 8
|
|
Application:
|
Aerial
|
|
Jacket Material:
|
PE
|
|
Cable Color:
|
Black
|
| Attribute | Value |
|---|---|
| Type | GYXTC8S |
| Installation Method | Self-supporting |
| Cable Type | Figure 8 |
| Application | Aerial |
| Jacket Material | PE |
| Cable Color | Black |

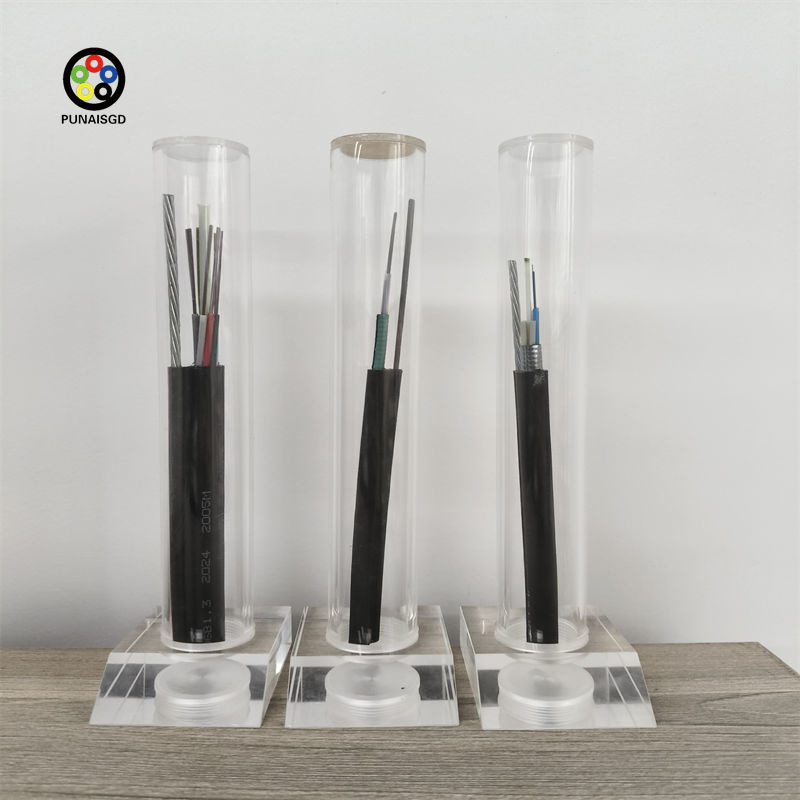

The GYXTC8S cable features a 250μm fiber that is placed into a tube with a high modulus material, which is filled with a water-repelling gel. This tube is then coated with a longitudinal plastic-coated steel tape (PSP). To ensure the cable's compactness and its longitudinal water-blocking capability, a water-blocking substance is placed between the steel tape and the tube. The cable also includes a steel strand that is integrated into an 8-shaped configuration, all of which is covered by a polyethylene sheath.
| Parameter | Value |
|---|---|
| Fiber Model | G.652D |
| Loose Tube Material | PBT |
| Loose Tube Diameter (±0.1mm) | 1.8 | 2.0 | 2.8 |
| Loose Tube Thickness (±0.05mm) | 0.30 |
| Water Blocking Layer | Water Blocking Tape |
| Armoring Material | Steel Tape |
| Armoring Thickness (±0.03mm) | 0.2 |
| Messenger Wire Material | Galvanized steel strand |
| Messenger Wire Size (±0.05mm) | 2.7mm |
| Web Material | MDPE |
| Web Size (±0.1mm) | 2.0 ×3.0 |
| Outer Sheath① Material | MDPE |
| Outer Sheath① Thickness (±0.1mm) | 1.2 |
| Outer Sheath② Material | MDPE |
| Outer Sheath② Thickness (±0.1mm) | 1.5 |
| Cable Diameter (±0.5mm) | 7.0*11.5 | 7.0*11.5 | 7.3*13.5 |
| Cable Weight (±10kg) | 80 | 80 | 94 |
| Min. Bending Radius (Without Tension) | 10.0 × Cable Diameter |
| Min. Bending Radius (Under Maximum Tension) | 20.0 × Cable Diameter |
| Temperature Range - Installation (℃) | -20~+60 |
| Temperature Range - Transport & Storage (℃) | -40~+70 |
| Temperature Range - Operation (℃) | -40~+70 |
