Name: GYTZA53 Double Armored Direct Buried Fiber Optic Cable 25 Year Warranty
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTZA53
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTZA53

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Fiber Optic Directly Buried Cable, Directly Buried Cable GYTZA53, Directly Buried Cable GYTA53


Waterproof:	Yes	Armored Type:	Double Armored
Jacket Material:	LZSH	Installation Method:	Direct Buried
Armored:	Aluminum And Steel	WARRANTY:	25 Years

Waterproof:	Yes
Armored Type:	Double Armored
Jacket Material:	LZSH
Installation Method:	Direct Buried
Armored:	Aluminum And Steel
WARRANTY:	25 Years

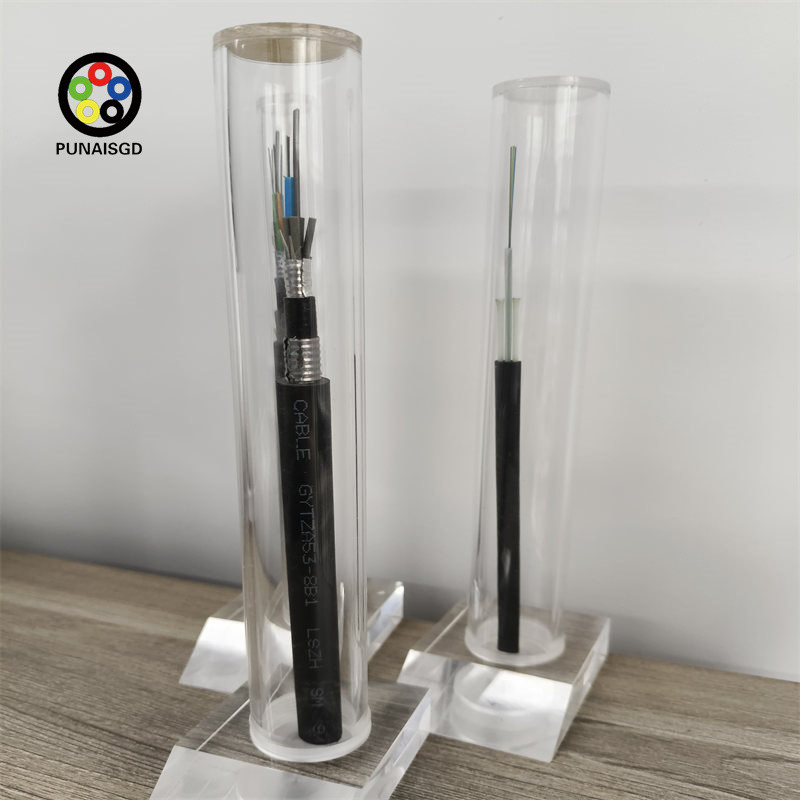

GYTZA53 Double Armored Direct Buried Fiber Optic Cable 25 Year Warranty

Fiber Optic Directly Buried Cable Outdoor GYTZA53 GYTA53

Product Specifications

Attribute	Value
Waterproof	Yes
Armored Type	Double Armored
Jacket Material	LZSH
Installation Method	Direct Buried
Armored	Aluminum and Steel
WARRANTY	25 Years

Product Description

Uniquely formulated for a concentrated cable structure, withstanding mechanical pressures like expansion and contraction.
The loose tube offers outstanding hydrolysis resistance and high durability, entirely protecting the fiber optic core.
Enveloped with a non-creasing, double-sided plastic-coated steel belt and sheathed in HDPE, suitable for subterranean laying.
The top PA12 nylon layer defends against the destructive actions of insects and rodents, ensuring the cable's security in various applications.
Full core filling is applied to preserve the cable's waterproof integrity upon burial.

Key Features

Exhibits excellent mechanical and thermal properties
The loose tube's material inherently possesses superior hydrolysis resistance and robust strength
The tube is infused with a proprietary lubricant to safeguard the fiber
The cable's compact structure is meticulously designed to avert casing shrinkage

Technical Parameters

Fiber count	Structure	Fibers per tube	Loose tube diameter(mm)	CSM diameter/pad diamete (mm)	Thickness of inner jacket (mm)	Thickness of outer jacket (mm)	Cable diameter (mm)	Cable Weight (kg/km)
4	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
6	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164

Our Manufacturing Facility

How to Place an OEM or Customized Order

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm the product specification, packaging, printing, quantity, and other specific information
Sign the contract or Proforma Invoice
After receiving your deposit, we will start to arrange the production
2 weeks before the completion of production, we will notify you to start contacting shipping
