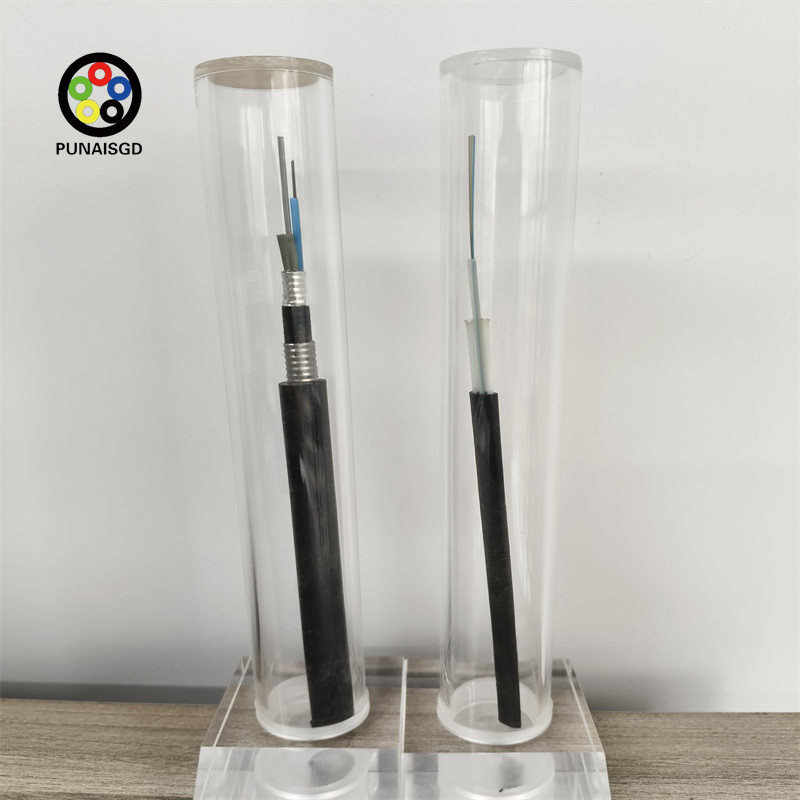

Name: Direct Buried Fiber Optic Cable Double Armored LSZH 25 Year Warranty
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTZA53
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTZA53

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    LSZH Sheath Direct Buried Cable, Flame Retardant Direct Buried Cable, Armored Direct Buried Cable


Waterproof:	Yes	Armored Type:	Double Armored
Jacket Material:	LZSH	Installation Method:	Direct Buried
Armored:	Aluminum And Steel	WARRANTY:	25 Years

Waterproof:	Yes
Armored Type:	Double Armored
Jacket Material:	LZSH
Installation Method:	Direct Buried
Armored:	Aluminum And Steel
WARRANTY:	25 Years

Direct Buried Fiber Optic Cable Double Armored LSZH 25 Year Warranty

Fiber Optic Direct Buried Cable Outdoor Armored LSZH Sheath Flame Retardant

Product Specifications

Attribute	Value
Waterproof	Yes
Armored Type	Double Armored
Jacket Material	LZSH
Installation Method	Direct Buried
Armored	Aluminum and Steel
WARRANTY	25 Years

GYTZA53 Fiber Optic Cable Features

Specifically designed for compact cable arrangement with robust protection against mechanical stresses including stretching and bending
Loose tube material features exceptional hydrolysis resistance and strength for complete fiber protection
Dual-ply plastic-coated steel belt with HDPE casing for direct soil burial
Outer PA12 nylon sheath provides defense against animal pests
Fully filled construction ensures waterproof performance when buried

Key Benefits

Outstanding mechanical and thermal performance characteristics
Loose tube material provides exceptional hydrolysis resistance and strength
Special protective gel filling for fiber protection
Dense cable structure prevents casing retraction

Technical Parameters

Fiber count	Structure	Fibers per tube	Loose tube diameter(mm)	CSM diameter/pad diameter (mm)	Thickness of inner jacket (mm)	Thickness of outer jacket (mm)	Cable diameter (mm)	Cable Weight (kg/km)
4	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
288	1+9+15	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	20.1 ± 0.5	383

Our Manufacturing Facility

Custom Order Process

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications, packaging, printing, quantity, and other requirements
Sign the contract or Proforma Invoice
After receiving your deposit, we will begin production
Two weeks before production completion, we will notify you to arrange shipping
