Name: Fiber Optic Direct Buried Cable Outdoor Armored LSZH Sheath Flame Retardant
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTZA53
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTZA53

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                LSZH Sheath Direct Buried Cable, Flame Retardant Direct Buried Cable, Armored Direct Buried Cable


Waterproof:	Yes	Armored Type:	Double Armored
Jacket Material:	LZSH	Installation Method:	Direct Buried
Armored:	Aluminum And Steel	WARRANTY:	25 Years

Waterproof:	Yes
Armored Type:	Double Armored
Jacket Material:	LZSH
Installation Method:	Direct Buried
Armored:	Aluminum And Steel
WARRANTY:	25 Years

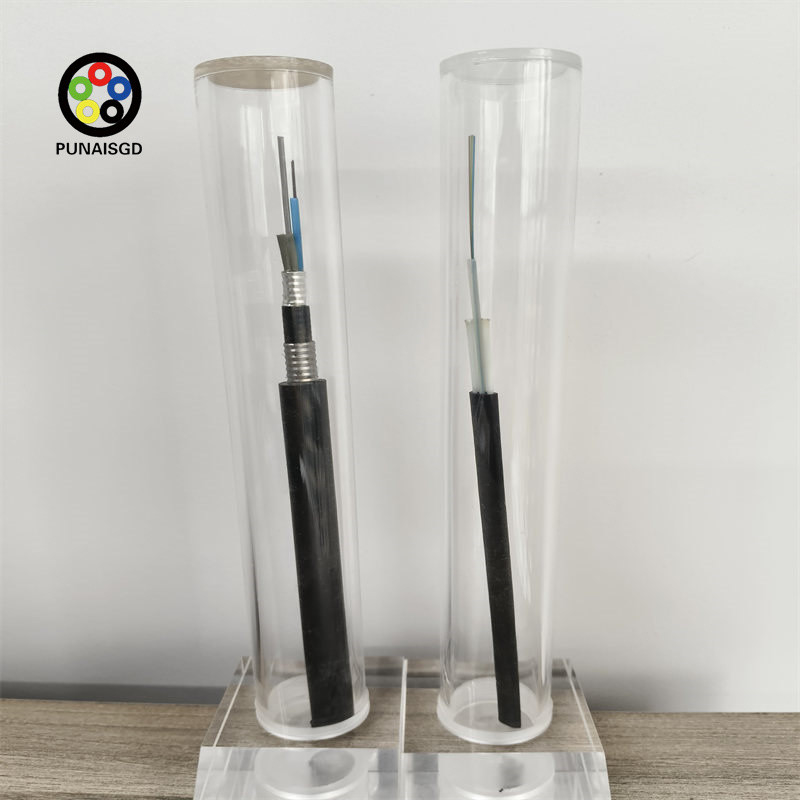

Fiber Optic Direct Buried Cable Outdoor Armored LSZH Sheath Flame Retardant

GYTZA53 Fiber Optic Cable Outdoor Cable Armored LZSH Sheath Flame Retardant Cable

Products Descriptions

1. Specifically designed for a compact cable arrangement, ensuring robustness against mechanical

demands such as stretching and bending.

2. The loose tube material demonstrates remarkable hydrolysis resistance and strength, fully protecting the

fiber optic strands.

3. Enrobed with a crease-free, dual-ply plastic-coated steel belt and encased in HDPE, ready for direct soil

interment.

4. The outer PA12 nylon sheath provides effective defense against animal pests, ensuring the cable's safety

in certain scenarios.

5. The cable is fully filled to ensure its waterproof nature after being buried.

Features

Demonstrates outstanding mechanical and heat-related attributes.

The material of the loose tube is inherently endowed with exceptional hydrolysis resistance and

formidable strength.

The tube is saturated with a unique gel that serves to protect the fiber.

The cable's dense structure is specifically crafted to prevent any retraction of the casing.

Produc Paraments

Fiber count	Structure	Fibers per tube	Loose tube diameter(mm)	CSM diameter/pad diamete (mm)	Thickness of inner jacket (mm)	Thickness of outer jacket (mm)	Cable diameter (mm)	Cable Weight (kg/km)
4	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
6	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
8	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
12	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
18	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	165
24	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	165
30	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	166
36	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	166
48	1+6	12	2.0+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	191
60	1+6	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	191
72	1+6	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	192
84	1+7	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	14.7 ± 0.5	218
96	1+8	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	15.4 ± 0.5	234
108	1+9	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	16.1 ± 0.5	253
120	1+10	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	16.8 ± 0.5	272
132	1+11	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	17.4 ± 0.5	293
144	1+12	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	18.2 ± 0.5	317
288	1+9+15	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	20.1 ± 0.5	383

Learn more about our products and factory

How do I place an OEM or customized order?

1) Send your purchase intention to our email: cotton@fibercablepuls.com
2) Our sales team will contact you to confirm the product specification, packaging, printing, quantity,

and other specific information.
3) Sign the contract or Proforma Invoice.
4) After receiving your deposit, we will start to arrange the production.

5) 2 weeks before the completion of production, we will notify you to start contacting shipping.
