Name: GYTZA53 Double Armored Direct Buried Fiber Optic Cable Waterproof
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTZA53
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTZA53

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Stranded Loose Tube Fiber Optic Cable, Double Armored Fiber Optic Cable, Waterproof Fiber Optic Cable


Waterproof:	Yes	Armored Type:	Double Armored
Jacket Material:	LZSH	Installation Method:	Direct Buried
Armored:	Aluminum And Steel	WARRANTY:	25 Years

Waterproof:	Yes
Armored Type:	Double Armored
Jacket Material:	LZSH
Installation Method:	Direct Buried
Armored:	Aluminum And Steel
WARRANTY:	25 Years

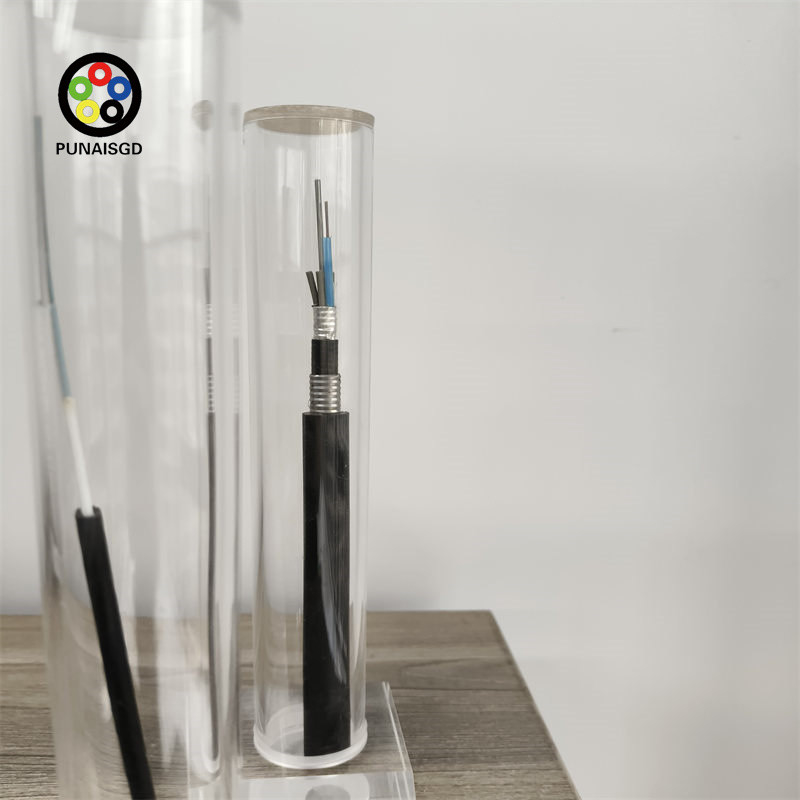

GYTZA53 Double Armored Direct Buried Fiber Optic Cable Waterproof

GYTZA53 Fiber Optic Cable Stranded Loose Tube Double Armored Waterproof

Product Specifications

Attribute	Value
Waterproof	Yes
Armored Type	Double Armored
Jacket Material	LZSH
Installation Method	Direct Buried
Armored	Aluminum and Steel
WARRANTY	25 Years

Product Description

GYTZA53 Fiber Optic Cable Factory Price Stranded Loose Tube Metallic Strength Member

Exclusively crafted for a tight cable framework, maintaining integrity under mechanical challenges like extension and compression.
The loose tube possesses excellent hydrolysis resistance and high tensile properties, completely safeguarding the enclosed fiber optics.
Adorned with a wrinkle-resistant, dual-sided plastic-coated steel belt and clad in HDPE, perfect for soil burial applications.
The outermost PA12 nylon shield effectively deters pest damage, ensuring the cable's reliability in specific uses.
Complete core filling techniques are utilized to guarantee the cable's water-tightness after burial.

Key Features

Showcases remarkable mechanical and temperature-related characteristics
The loose tube material is naturally endowed with excellent hydrolysis resistance and substantial strength
The tube is packed with a distinctive lubricant to ensure the fiber's protection
The cable's tight structure is uniquely designed to counteract casing contraction

Product Parameters

Fiber count	Structure	Fibers per tube	Loose tube diameter(mm)	CSM diameter/pad diameter (mm)	Thickness of inner jacket (mm)	Thickness of outer jacket (mm)	Cable diameter (mm)	Cable Weight (kg/km)
4	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
6	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
8	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
12	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
18	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	165
24	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	165
30	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	166
36	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	166
48	1+6	12	2.0+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	191
60	1+6	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	191
72	1+6	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	192
84	1+7	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	14.7 ± 0.5	218
96	1+8	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	15.4 ± 0.5	234
108	1+9	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	16.1 ± 0.5	253
120	1+10	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	16.8 ± 0.5	272
132	1+11	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	17.4 ± 0.5	293
144	1+12	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	18.2 ± 0.5	317
288	1+9+15	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	20.1 ± 0.5	383

Product Gallery

How to Place an OEM or Customized Order

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm the product specification, packaging, printing, quantity, and other specific information
Sign the contract or Proforma Invoice
After receiving your deposit, we will start to arrange the production
2 weeks before the completion of production, we will notify you to start contacting shipping
