Name: GYTZA53 Direct Buried Fiber Optic Cable Double Armored Waterproof
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTZA53
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTZA53

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Double Sheath Direct Buried Cable, Fireproof Direct Buried Cable, Outdoor Direct Burial Fiber Optic Cable


Waterproof:	Yes	Armored Type:	Double Armored
Jacket Material:	LZSH	Installation Method:	Direct Buried
Armored:	Aluminum And Steel	WARRANTY:	25 Years

Waterproof:	Yes
Armored Type:	Double Armored
Jacket Material:	LZSH
Installation Method:	Direct Buried
Armored:	Aluminum And Steel
WARRANTY:	25 Years

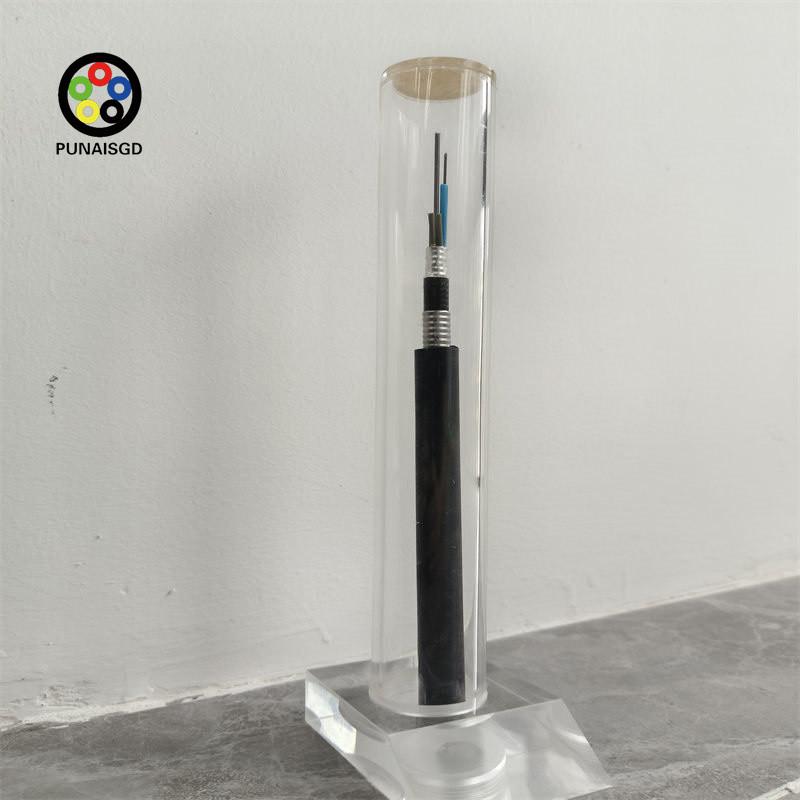

GYTZA53 Direct Buried Fiber Optic Cable Double Armored Waterproof

GYTZA53 Fiber Optic Direct Buried Cable Outdoor Fireproof Double Sheath

Product Specifications

Attribute	Value
Waterproof	Yes
Armored Type	Double Armored
Jacket Material	LZSH
Installation Method	Direct Buried
Armored	Aluminum and Steel
WARRANTY	25 Years

Product Description

Tailor-made for condensed cable configuration, enhancing durability against physical strains like stretching and compression
Loose tube exhibits exceptional hydrolysis resistance and tensile strength, thoroughly shielding the fiber optics
Wrapped with wrinkle-free, double-sided plastic-coated steel strap and sheathed in HDPE, ideal for in-ground installation
Outer PA12 nylon layer wards off gnawing by pests, preserving cable functionality in diverse environments
Full core filling ensures waterproof performance when buried

Key Features

Superior mechanical and thermal performance
Loose tube material provides remarkable hydrolysis resistance and high tensile strength
Special grease treatment preserves fiber integrity
Compact structure designed to inhibit casing shrinkage

Technical Parameters

All measurements in millimeters (mm) unless otherwise specified

Fiber count	Structure	Fibers per tube	Loose tube diameter	CSM diameter/pad diameter	Thickness of inner jacket	Thickness of outer jacket	Cable diameter	Cable Weight (kg/km)
4	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
6	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
8	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
12	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
18	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	165
24	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	165
30	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	166
36	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	166
48	1+6	12	2.0+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	191
60	1+6	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	191
72	1+6	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	192
84	1+7	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	14.7 ± 0.5	218
96	1+8	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	15.4 ± 0.5	234
108	1+9	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	16.1 ± 0.5	253
120	1+10	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	16.8 ± 0.5	272
132	1+11	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	17.4 ± 0.5	293
144	1+12	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	18.2 ± 0.5	317
288	1+9+15	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	20.1 ± 0.5	383

Product Gallery

Custom Order Process

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications, packaging, printing, quantity, and other requirements
Sign the contract or Proforma Invoice
After receiving your deposit, we will begin production
Two weeks before production completion, we will notify you to arrange shipping
