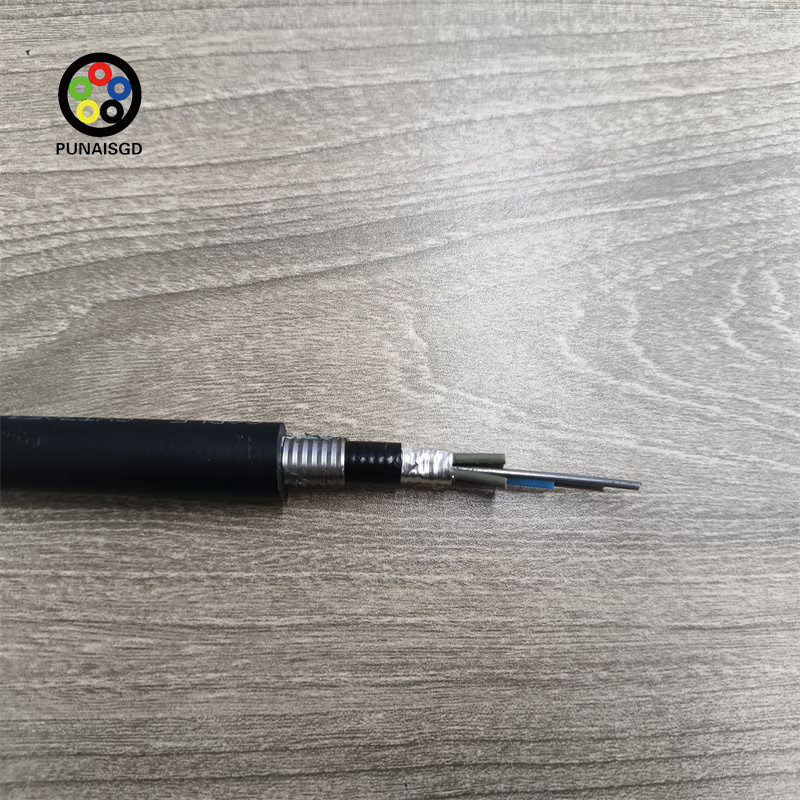

Name: GYTZA53 Double Armored Fiber Optic Cable for Direct Burial
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTZA53
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTZA53

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Double Armoured Direct Buried Cable, Waterproof Direct Buried Cable, Loose Tube Direct Buried Fiber Cable


Waterproof:	Yes	Armored Type:	Double Armored
Jacket Material:	LZSH	Installation Method:	Direct Buried
Armored:	Aluminum And Steel	WARRANTY:	25 Years

Waterproof:	Yes
Armored Type:	Double Armored
Jacket Material:	LZSH
Installation Method:	Direct Buried
Armored:	Aluminum And Steel
WARRANTY:	25 Years

GYTZA53 Double Armored Fiber Optic Cable for Direct Burial

GYTZA53 Fiber Optic Direct Buried Cable Loose Tube Double Armoured Waterproof

Product Specifications

Attribute	Value
Waterproof	Yes
Armored Type	Double Armored
Jacket Material	LZSH
Installation Method	Direct Buried
Armored	Aluminum and Steel
WARRANTY	25 Years

Product Description

Custom-engineered for dense cable layouts with exceptional resistance to mechanical stress including elongation and deformation
Loose tube construction provides superior hydrolysis resistance and strength to protect internal fiber optic filaments
Features crease-resistant, dual-layer plastic-coated steel belt with HDPE casing for direct soil burial applications
PA12 nylon sheathing offers reliable protection against rodent and insect damage in various environments
Comprehensive core filling maintains water-resistant capabilities post-burial

Key Features

Exceptional mechanical and heat-resistant properties
Loose tube material with outstanding hydrolysis resistance and strength
Proprietary lubricant impregnation protects internal fibers
Dense cable structure prevents casing retraction

Technical Parameters

Fiber count	Structure	Fibers per tube	Loose tube diameter(mm)	CSM diameter/pad diameter (mm)	Thickness of inner jacket (mm)	Thickness of outer jacket (mm)	Cable diameter (mm)	Cable Weight (kg/km)
4	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164

Product Gallery

Ordering Process

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications, packaging, quantity, and other requirements
Sign the contract or Proforma Invoice
Production begins after receiving your deposit
We will notify you 2 weeks before production completion to arrange shipping

Tags:

Direct Burial Fiber Optic Cable,

Fiber Optic Underground Cable,
