Name: GYTZA53 Double Armored Direct Buried Fiber Optic Cable 25 Year Warranty
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTZA53
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTZA53

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Directly Buried Fiber Optic Cable, Flame Retardant Fiber Optic Cable, Buried Fiber Optic Underground Cable


Waterproof:	Yes	Armored Type:	Double Armored
Jacket Material:	LZSH	Installation Method:	Direct Buried
Armored:	Aluminum And Steel	WARRANTY:	25 Years

Waterproof:	Yes
Armored Type:	Double Armored
Jacket Material:	LZSH
Installation Method:	Direct Buried
Armored:	Aluminum And Steel
WARRANTY:	25 Years

GYTZA53 Double Armored Direct Buried Fiber Optic Cable 25 Year Warranty

GYTZA53 Fiber Optic Cable Underground Flame Retardant Directly Buried

Product Specifications

Waterproof	Yes
Armored Type	Double Armored
Jacket Material	LZSH
Installation Method	Direct Buried
Armored	Aluminum and Steel
WARRANTY	25 Years

Product Description

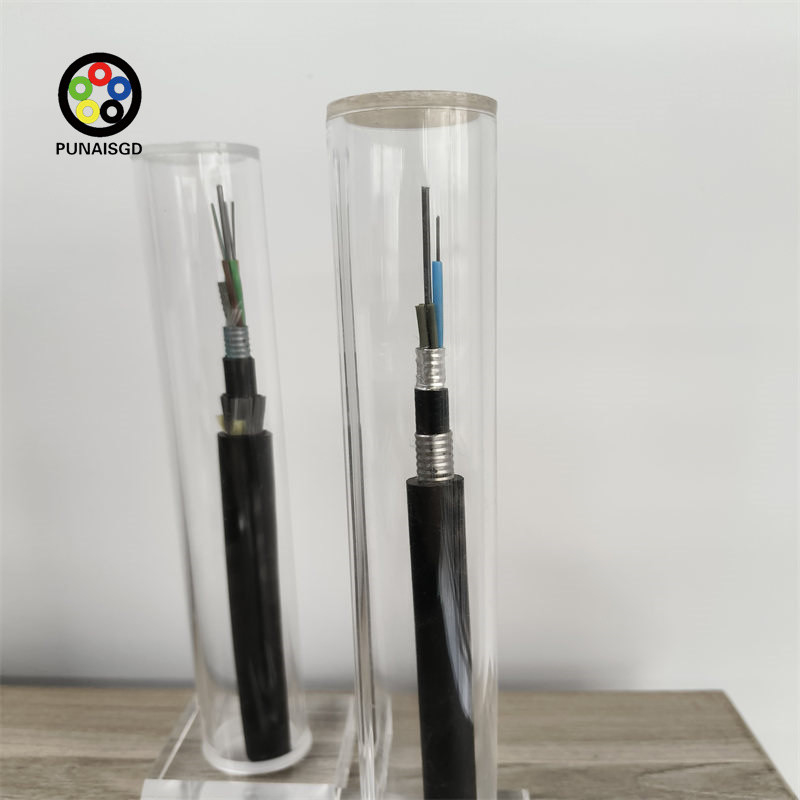

Exclusively designed for tight cable frameworks, maintaining integrity under mechanical demands including extension and bending
Loose tube features excellent hydrolysis resistance and high tensile properties, completely safeguarding enclosed fiber optics
Features wrinkle-resistant, dual-sided plastic-coated steel belt with HDPE cladding, optimized for soil burial applications
Outer PA12 nylon shield effectively deters pest damage, ensuring reliability in demanding environments
Complete core filling techniques guarantee superior water-tightness after burial

Technical Parameters

Fiber count	Structure	Fibers per tube	Loose tube diameter(mm)	CSM diameter/pad diameter (mm)	Thickness of inner jacket (mm)	Thickness of outer jacket (mm)	Cable diameter (mm)	Cable Weight (kg/km)
4	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
6	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
8	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
12	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
18	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	165
24	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	165
30	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	166
36	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	166
48	1+6	12	2.0+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	191
60	1+6	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	191
72	1+6	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	192
84	1+7	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	14.7 ± 0.5	218
96	1+8	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	15.4 ± 0.5	234
108	1+9	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	16.1 ± 0.5	253
120	1+10	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	16.8 ± 0.5	272
132	1+11	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	17.4 ± 0.5	293
144	1+12	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	18.2 ± 0.5	317
288	1+9+15	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	20.1 ± 0.5	383

Product Images

Key Features

Superior mechanical and thermal resistance for demanding environments
Loose tube material features strong hydrolysis resistance and robust strength
Special protective coating safeguards fibers from environmental factors
Tight cable arrangement prevents casing deformation during installation

Factory & Production

Frequently Asked Questions

Q1: What are the advantages of your price?

A1: We operate our own factory with professional machinery equipment. We offer competitive pricing with 1%-10% lower than comparable products while maintaining identical quality parameters.

Q2: What is your quality advantage?

A2: We strictly adhere to ISO9001 quality management standards, committed to "Enough Cores, Enough Meters, High Quality, High Performance" to deliver superior products and services.

Q3: Do you support customized brands?

A3: Yes! We welcome OEM services and offer free logo customization for bulk orders.

Q4: What are the benefits of working with you?

A4: New customers receive special support, with long-term partners eligible for global agent status and additional discounted pricing.
