Name: GYTZA53 Double Armored Direct Burial Fiber Optic Cable
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTZA53
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYTZA53

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Underground Direct Burial Fiber Cable, Armored Direct Burial Fiber Cable, Armored Jacket Direct Burial Cable


Waterproof:	Yes	Armored Type:	Double Armored
Jacket Material:	LZSH	Installation Method:	Direct Buried
Armored:	Aluminum And Steel	WARRANTY:	25 Years

Waterproof:	Yes
Armored Type:	Double Armored
Jacket Material:	LZSH
Installation Method:	Direct Buried
Armored:	Aluminum And Steel
WARRANTY:	25 Years

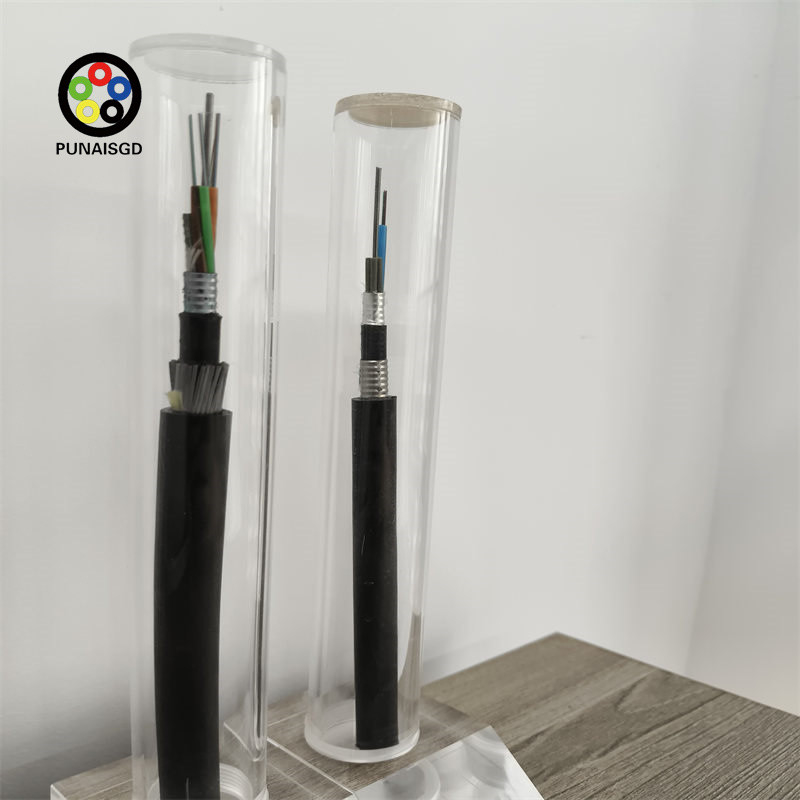

GYTZA53 Double Armored Direct Burial Fiber Optic Cable

Armored Jacket Direct Burial Fiber Cable Underground GYTZA53

Product Specifications

Waterproof	Yes
Armored Type	Double Armored
Jacket Material	LZSH
Installation Method	Direct Buried
Armored	Aluminum and Steel
WARRANTY	25 Years

Product Description

Specifically designed for dense cable configurations with exceptional resistance to physical strains including extension and compression
Features loose tube material with superior hydrolysis resistance and strength to fully protect internal fiber optics
Crease-resistant, dual-layer plastic-coated steel belt with HDPE sheath for optimal direct burial performance
Outer PA12 nylon layer provides effective protection against pest damage in diverse environments
Full core filling maintains water-resistant capabilities after burial

Key Features

Excellent mechanical and heat resistance properties
Loose tube material combines inherent strength with hydrolysis resistance
Proprietary lubrication protects optical fibers within the tube
Precisely engineered tight structure resists casing collapse

Technical Parameters

Fiber count	Structure	Fibers per tube	Loose tube diameter(mm)	CSM diameter/pad diameter (mm)	Thickness of inner jacket (mm)	Thickness of outer jacket (mm)	Cable diameter (mm)	Cable Weight (kg/km)
4	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
144	1+12	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	18.2 ± 0.5	317
288	1+9+15	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	20.1 ± 0.5	383

Our Manufacturing Facility

Custom Order Process

Submit your purchase requirements to cotton@fibercablepuls.com
Our sales team will confirm product specifications, packaging, quantity, and other details
Sign the contract or Proforma Invoice
Production begins after receiving your deposit
We notify you 2 weeks before production completion to arrange shipping
