24 Core GYFTS53 Direct Buried Fiber Optic Cable PE Jacket

Name: 24 Core GYFTS53 Direct Buried Fiber Optic Cable PE Jacket
Brand: guangzhou fiber cablepuls co ltd
SKU: GYFTS53-24B1.3
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYFTS53-24B1.3

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                            Direct Buried Cable 24 Cores, Double Jacket Direct Buried Cable Gytfs53, 24 Cores Direct Burial Fiber Cable


Type:	GYFTS53-24B1.3	Item No:	GYTA53-96b1.3
Jacket Material:	PE	Moisture Resistant:	Yes
Outer Diameter:	13 Mm	Application:	Underground
Water Blocking:	Water Swellable Tape	Factory:	DIRECTLY FACTORY
Jacket Thickness:	0.8mm/1mm/1.2mm/1.5mm/2mm/2.5mm/3mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.5mm/7mm	Warranty:	25 YEARS
Armored:	Yes

Type:	GYFTS53-24B1.3
Item No:	GYTA53-96b1.3
Jacket Material:	PE
Moisture Resistant:	Yes
Outer Diameter:	13 Mm
Application:	Underground
Water Blocking:	Water Swellable Tape
Factory:	DIRECTLY FACTORY
Jacket Thickness:	0.8mm/1mm/1.2mm/1.5mm/2mm/2.5mm/3mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.5mm/7mm
Warranty:	25 YEARS
Armored:	Yes

24 Core GYFTS53 Direct Buried Fiber Optic Cable PE Jacket

Direct Buried Cable Fiber Optic 24 Cores Gyfts53 Underground Double Jacket

Product Specifications

Attribute	Value
Type	GYFTS53-24B1.3
Item No	GYTA53-96b1.3
Jacket Material	PE
Moisture Resistant	Yes
Outer Diameter	13 mm
Application	Underground
Water Blocking	Water Swellable Tape
Factory	DIRECTLY FACTORY
Jacket Thickness	0.8mm/1mm/1.2mm/1.5mm/2mm/2.5mm/3mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.5mm/7mm
Warranty	25 YEARS
Armored	Yes

Product Description

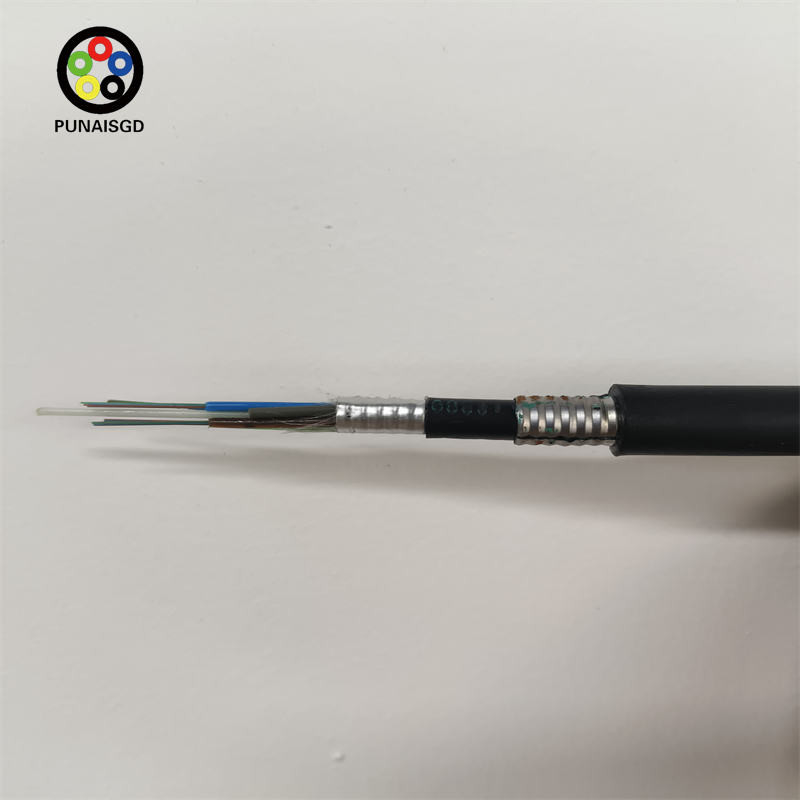

The center of the cable core of GYFTS53 is a FRP strength member. The loose tube (and filler rope) is twisted around the central strengthening core into a compact and round cable core, and the gaps in the cable core are filled with water-blocking filler. The plastic-coated steel strip is wrapped longitudinally and then extruded with a polyethylene inner sheath. The double-sided plastic-coated steel strip (PSP) is longitudinally wrapped and then extruded with a polyethylene sheath to form a cable.

Product Features

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensures critical protection of fiber
PE sheath protects cable from ultraviolet radiation
Good crush resistance, suitable for duct and direct buried applications
Single steel wire as central strength member
Fully filled in the cable
Effective water-blocking tape prevents vertical water penetration

Technical Parameters

Fiber count	Structure	Fibers per tube	Loose tube diameter(mm)	CSM diameter/pad diameter (mm)	Thickness of inner jacket (mm)	Thickness of outer jacket (mm)	Cable diameter(mm)	Cable Weight(kg/km)
4	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
6	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
8	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
12	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
18	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	165
24	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	165
30	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	166
36	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	166
48	1+6	12	2.0+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	191
60	1+6	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	191
72	1+6	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	192
84	1+7	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	14.7 ± 0.5	218
96	1+8	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	15.4 ± 0.5	234
108	1+9	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	16.1 ± 0.5	253
120	1+10	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	16.8 ± 0.5	272
132	1+11	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	17.4 ± 0.5	293
144	1+12	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	18.2 ± 0.5	317
288	1+9+15	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	20.1 ± 0.5	383
