Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: GYFTS53
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25 days
Payment Terms: 30% TT as deposit, 70% Balance before shipping
Supply Ability: 100km
|
Type:
|
GYFTS53
|
Moisture Resistant:
|
Yes
|
Temperature Rating:
|
-40°C To 90°C
|
Application:
|
Underground
|
Jacket Material:
|
PE
|
Fiber Count:
|
72 Cores
|
|
Type:
|
GYFTS53
|
|
Moisture Resistant:
|
Yes
|
|
Temperature Rating:
|
-40°C To 90°C
|
|
Application:
|
Underground
|
|
Jacket Material:
|
PE
|
|
Fiber Count:
|
72 Cores
|
| Type | GYFTS53 |
| Moisture Resistant | Yes |
| Temperature Rating | -40°C to 90°C |
| Application | Underground |
| Jacket Material | PE |
| Fiber Count | 72 cores |

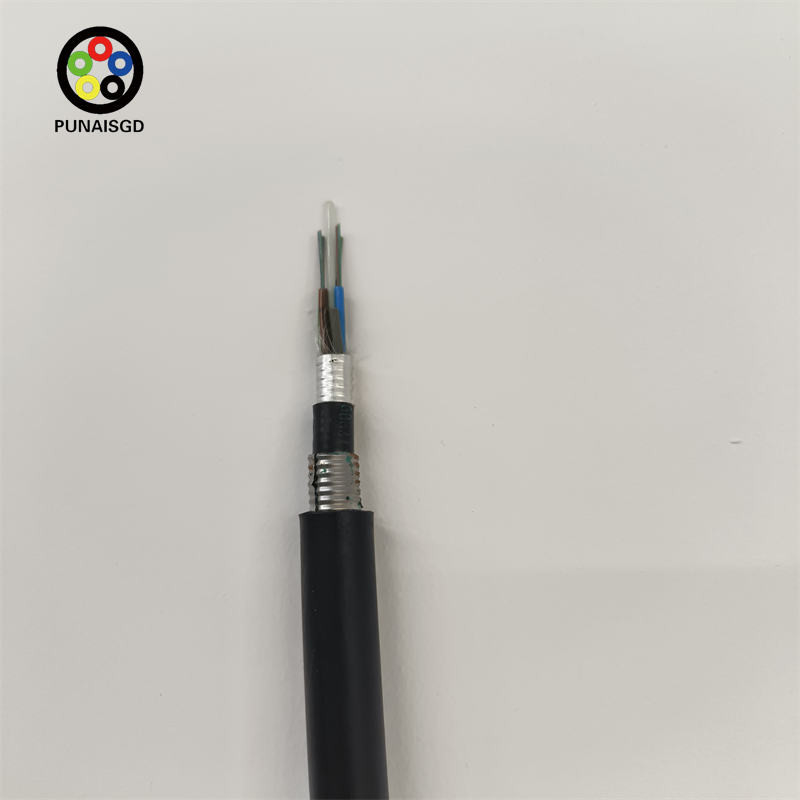

The GYFTS53 fiber optic cable features a central FRP rod for strength. Its construction involves tightly twisting a loose tube and filler rope around this central member, with gaps filled with water-blocking material. A plastic-coated steel strip is spirally wound and extruded with a polyethylene sheath, followed by longitudinal wrapping of a double-sided plastic-coated steel strip with another polyethylene sheath.
| Fiber count | Structure | Fibers per tube | Loose tube diameter(mm) | CSM diameter/pad diameter (mm) | Thickness of inner jacket (mm) | Thickness of outer jacket (mm) | Cable diameter(mm) | Cable Weight(kg/km) |
|---|---|---|---|---|---|---|---|---|
| 4 | 1+6 | 4 | 1.7+0.1 | 1.8 /1.8 | 0.9 ± 0.1 | 1.8 ± 0.1 | 12.8 ± 0.5 | 164 |
| 6 | 1+6 | 6 | 1.7+0.1 | 1.8 /1.8 | 0.9 ± 0.1 | 1.8 ± 0.1 | 12.8 ± 0.5 | 164 |
| 8 | 1+6 | 4 | 1.7+0.1 | 1.8 /1.8 | 0.9 ± 0.1 | 1.8 ± 0.1 | 12.8 ± 0.5 | 164 |
| 12 | 1+6 | 6 | 1.7+0.1 | 1.8 /1.8 | 0.9 ± 0.1 | 1.8 ± 0.1 | 12.8 ± 0.5 | 164 |
| 18 | 1+6 | 6 | 1.7+0.1 | 1.8 /1.8 | 0.9 ± 0.1 | 1.8 ± 0.1 | 12.8 ± 0.5 | 165 |
| 24 | 1+6 | 6 | 1.7+0.1 | 1.8 /1.8 | 0.9 ± 0.1 | 1.8 ± 0.1 | 12.8 ± 0.5 | 165 |
| 30 | 1+6 | 6 | 1.7+0.1 | 1.8 /1.8 | 0.9 ± 0.1 | 1.8 ± 0.1 | 12.8 ± 0.5 | 166 |
| 36 | 1+6 | 6 | 1.7+0.1 | 1.8 /1.8 | 0.9 ± 0.1 | 1.8 ± 0.1 | 12.8 ± 0.5 | 166 |
| 48 | 1+6 | 12 | 2.0+0.1 | 1.8 /1.8 | 0.9 ± 0.1 | 1.8 ± 0.1 | 13.8 ± 0.5 | 191 |
| 60 | 1+6 | 12 | 2.0+0.1 | 2.0/2.0 | 0.9 ± 0.1 | 1.8 ± 0.1 | 13.8 ± 0.5 | 191 |
| 72 | 1+6 | 12 | 2.0+0.1 | 2.0/2.0 | 0.9 ± 0.1 | 1.8 ± 0.1 | 13.8 ± 0.5 | 192 |
| 84 | 1+7 | 12 | 2.0+0.1 | 2.0/2.0 | 0.9 ± 0.1 | 1.8 ± 0.1 | 14.7 ± 0.5 | 218 |
| 96 | 1+8 | 12 | 2.0+0.1 | 2.0/2.0 | 0.9 ± 0.1 | 1.8 ± 0.1 | 15.4 ± 0.5 | 234 |
| 108 | 1+9 | 12 | 2.0+0.1 | 2.0/2.0 | 0.9 ± 0.1 | 1.8 ± 0.1 | 16.1 ± 0.5 | 253 |
| 120 | 1+10 | 12 | 2.0+0.1 | 2.0/2.0 | 0.9 ± 0.1 | 1.8 ± 0.1 | 16.8 ± 0.5 | 272 |
| 132 | 1+11 | 12 | 2.0+0.1 | 2.0/2.0 | 0.9 ± 0.1 | 1.8 ± 0.1 | 17.4 ± 0.5 | 293 |
| 144 | 1+12 | 12 | 2.0+0.1 | 2.0/2.0 | 0.9 ± 0.1 | 1.8 ± 0.1 | 18.2 ± 0.5 | 317 |
| 288 | 1+9+15 | 12 | 2.0+0.1 | 2.0/2.0 | 0.9 ± 0.1 | 1.8 ± 0.1 | 20.1 ± 0.5 | 383 |
We are a manufacturer located in Guangzhou, China, operating since 2011. We primarily serve the domestic market with a team of 11-50 professionals.
We conduct pre-production samples before mass production and perform final inspections before shipment.
Yes, we can. If you don't have your own shipping forwarder, we can assist with logistics.
We accept all OEM orders. Contact us with your design and we'll provide a competitive quote and samples.
Delivery Terms: FOB, CIF, EXW
Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Type: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow
Languages: English, Chinese
