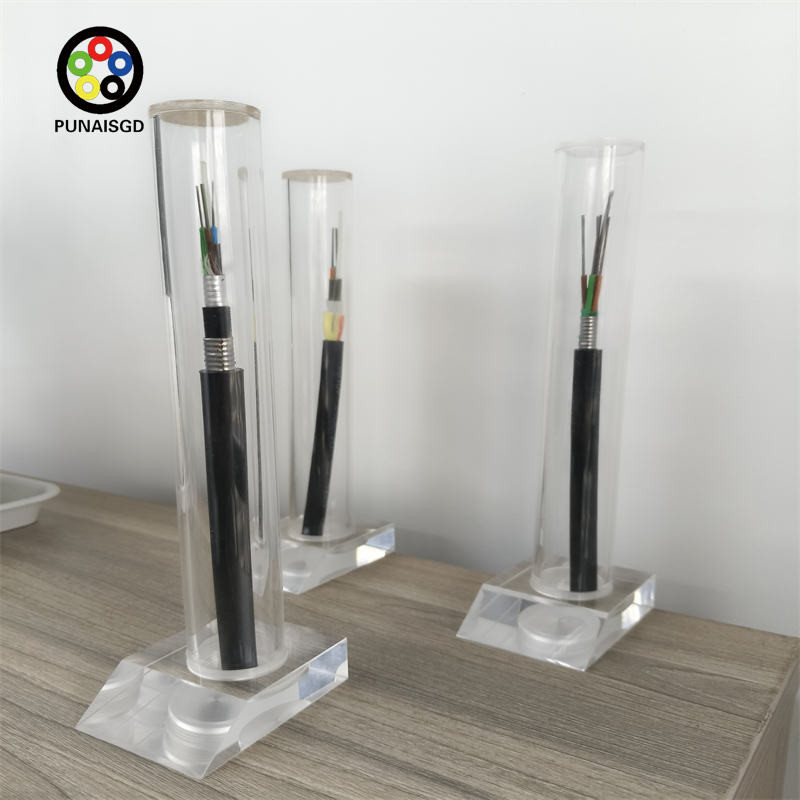

GYFTS53 72-Core Direct Buried Fiber Optic Cable PE Jacket

Name: GYFTS53 72-Core Direct Buried Fiber Optic Cable PE Jacket
Brand: guangzhou fiber cablepuls co ltd
SKU: GYFTS53
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYFTS53

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Outdoor Fiber Optic Underground Cable, Directly Buried Underground Cable, GYFTS53 Fiber Optic Underground Cable


Type:	GYFTS53	Moisture Resistant:	Yes
Temperature Rating:	-40°C To 90°C	Application:	Underground
Jacket Material:	PE	Fiber Count:	72 Cores

Type:	GYFTS53
Moisture Resistant:	Yes
Temperature Rating:	-40°C To 90°C
Application:	Underground
Jacket Material:	PE
Fiber Count:	72 Cores

GYFTS53 72-Core Direct Buried Fiber Optic Cable PE Jacket

GYFTS53 Fiber Optic Underground Cable Outdoor Directly Buried

Product Specifications

Type	GYFTS53
Moisture Resistant	Yes
Temperature Rating	-40°C to 90°C
Application	Underground
Jacket Material	PE
Fiber Count	72 cores

Product Overview

The GYFTS53 cable features an FRP rod at its core for strength. The cable's core is compacted and rounded by twisting loose tubes and filler ropes, with water-blocking filler filling the gaps. A plastic-coated steel strip is longitudinally wrapped and sheathed in polyethylene, completed with a double-sided plastic-coated steel strip wrapping and polyethylene sheath extrusion.

Key Features

Excellent mechanical durability and temperature consistency
Sturdy, hydrolysis-resistant loose tube construction
Custom filling compound for optimal fiber protection
Polyethylene sheath for UV resistance
Superior crush resistance for duct and underground applications
Central steel wire reinforcement for added strength
Specialized filling compound for fiber optic preservation
Complete filling to eliminate empty spaces
Water-blocking tape to prevent vertical water penetration

Technical Parameters

Fiber count	Structure	Fibers per tube	Loose tube diameter(mm)	CSM diameter/pad diameter (mm)	Thickness of inner jacket (mm)	Thickness of outer jacket (mm)	Cable diameter(mm)	Cable Weight(kg/km)
4	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
6	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
8	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
12	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
18	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	165
24	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	165
30	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	166
36	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	166
48	1+6	12	2.0+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	191
60	1+6	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	191
72	1+6	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	192
84	1+7	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	14.7 ± 0.5	218
96	1+8	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	15.4 ± 0.5	234
108	1+9	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	16.1 ± 0.5	253
120	1+10	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	16.8 ± 0.5	272
132	1+11	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	17.4 ± 0.5	293
144	1+12	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	18.2 ± 0.5	317
288	1+9+15	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	20.1 ± 0.5	383

Manufacturing Facility
