Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: GYFTS53
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25 days
Payment Terms: 30% TT as deposit, 70% Balance before shipping
Supply Ability: 100km
|
Type:
|
GYFTS53
|
Moisture Resistant:
|
Yes
|
Application:
|
Underground
|
Jacket Material:
|
PE
|
Color:
|
Black/Customized
|
Armoring:
|
Steel Tape
|
|
Type:
|
GYFTS53
|
|
Moisture Resistant:
|
Yes
|
|
Application:
|
Underground
|
|
Jacket Material:
|
PE
|
|
Color:
|
Black/Customized
|
|
Armoring:
|
Steel Tape
|
| Type | GYFTS53 |
| Moisture Resistant | Yes |
| Application | Underground |
| Jacket Material | PE |
| Color | Black/Customized |
| Armoring | Steel Tape |

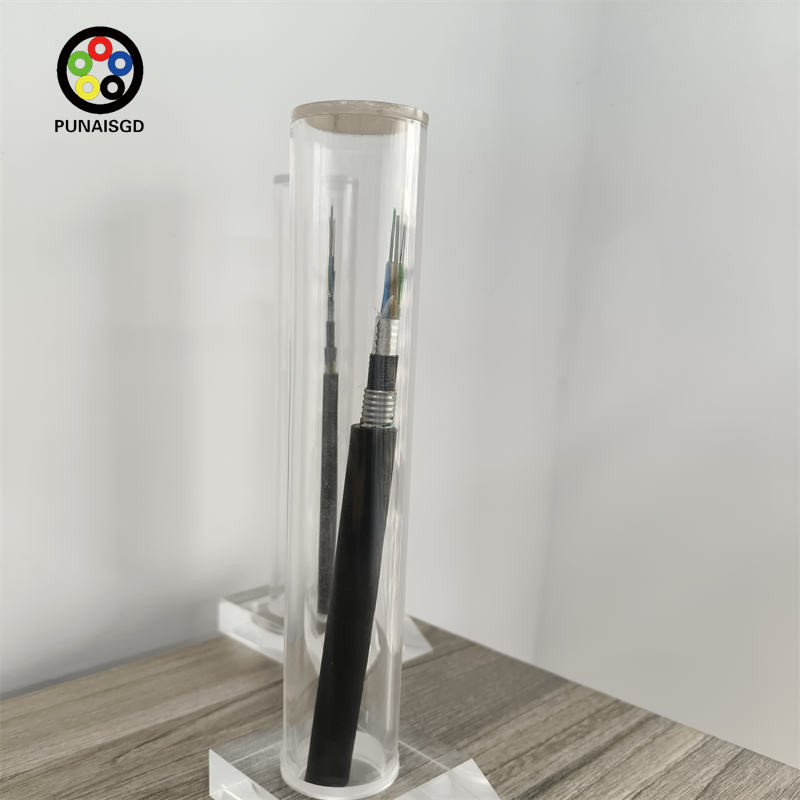

The GYFTS53 cable's core is reinforced by an FRP rod at its center. The cable's construction involves winding a loose tube and filler rope tightly around this rod to achieve a compact, round shape, with water-blocking filler in the interstices. A plastic-coated steel strip is then spirally wrapped and extruded with a polyethylene sheath. The final step is the longitudinal wrapping of a double-sided plastic-coated steel strip, also extruded with a polyethylene sheath.
| Fiber count | Structure | Fibers per tube | Loose tube diameter(mm) | CSM diameter/pad diameter (mm) | Thickness of inner jacket (mm) | Thickness of outer jacket (mm) | Cable diameter(mm) | Cable Weight(kg/km) |
|---|---|---|---|---|---|---|---|---|
| 4 | 1+6 | 4 | 1.7+0.1 | 1.8 /1.8 | 0.9 ± 0.1 | 1.8 ± 0.1 | 12.8 ± 0.5 | 164 |
| 6 | 1+6 | 6 | 1.7+0.1 | 1.8 /1.8 | 0.9 ± 0.1 | 1.8 ± 0.1 | 12.8 ± 0.5 | 164 |
| 8 | 1+6 | 4 | 1.7+0.1 | 1.8 /1.8 | 0.9 ± 0.1 | 1.8 ± 0.1 | 12.8 ± 0.5 | 164 |
| 12 | 1+6 | 6 | 1.7+0.1 | 1.8 /1.8 | 0.9 ± 0.1 | 1.8 ± 0.1 | 12.8 ± 0.5 | 164 |
| 18 | 1+6 | 6 | 1.7+0.1 | 1.8 /1.8 | 0.9 ± 0.1 | 1.8 ± 0.1 | 12.8 ± 0.5 | 165 |
| 24 | 1+6 | 6 | 1.7+0.1 | 1.8 /1.8 | 0.9 ± 0.1 | 1.8 ± 0.1 | 12.8 ± 0.5 | 165 |
| 30 | 1+6 | 6 | 1.7+0.1 | 1.8 /1.8 | 0.9 ± 0.1 | 1.8 ± 0.1 | 12.8 ± 0.5 | 166 |
| 36 | 1+6 | 6 | 1.7+0.1 | 1.8 /1.8 | 0.9 ± 0.1 | 1.8 ± 0.1 | 12.8 ± 0.5 | 166 |
| 48 | 1+6 | 12 | 2.0+0.1 | 1.8 /1.8 | 0.9 ± 0.1 | 1.8 ± 0.1 | 13.8 ± 0.5 | 191 |
| 60 | 1+6 | 12 | 2.0+0.1 | 2.0/2.0 | 0.9 ± 0.1 | 1.8 ± 0.1 | 13.8 ± 0.5 | 191 |
| 72 | 1+6 | 12 | 2.0+0.1 | 2.0/2.0 | 0.9 ± 0.1 | 1.8 ± 0.1 | 13.8 ± 0.5 | 192 |
| 84 | 1+7 | 12 | 2.0+0.1 | 2.0/2.0 | 0.9 ± 0.1 | 1.8 ± 0.1 | 14.7 ± 0.5 | 218 |
| 96 | 1+8 | 12 | 2.0+0.1 | 2.0/2.0 | 0.9 ± 0.1 | 1.8 ± 0.1 | 15.4 ± 0.5 | 234 |
| 108 | 1+9 | 12 | 2.0+0.1 | 2.0/2.0 | 0.9 ± 0.1 | 1.8 ± 0.1 | 16.1 ± 0.5 | 253 |
| 120 | 1+10 | 12 | 2.0+0.1 | 2.0/2.0 | 0.9 ± 0.1 | 1.8 ± 0.1 | 16.8 ± 0.5 | 272 |
| 132 | 1+11 | 12 | 2.0+0.1 | 2.0/2.0 | 0.9 ± 0.1 | 1.8 ± 0.1 | 17.4 ± 0.5 | 293 |
| 144 | 1+12 | 12 | 2.0+0.1 | 2.0/2.0 | 0.9 ± 0.1 | 1.8 ± 0.1 | 18.2 ± 0.5 | 317 |
| 288 | 1+9+15 | 12 | 2.0+0.1 | 2.0/2.0 | 0.9 ± 0.1 | 1.8 ± 0.1 | 20.1 ± 0.5 | 383 |
