GYFTS53 72-Core Direct Buried Fiber Optic Cable PE Jacket

Name: GYFTS53 72-Core Direct Buried Fiber Optic Cable PE Jacket
Brand: guangzhou fiber cablepuls co ltd
SKU: GYFTS53
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYFTS53

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Loose Tube Direct Buried Cable, Stranded Tube Direct Buried Cable, Non Metallic Direct Burial Wire


Type:	GYFTS53	Moisture Resistant:	Yes
Temperature Rating:	-40°C To 90°C	Application:	Underground
Jacket Material:	PE	Fiber Count:	72 Cores

Type:	GYFTS53
Moisture Resistant:	Yes
Temperature Rating:	-40°C To 90°C
Application:	Underground
Jacket Material:	PE
Fiber Count:	72 Cores

GYFTS53 72-Core Direct Buried Fiber Optic Cable PE Jacket

GYFTS53 Fiber Optic Direct Buried Cable Stranded Loose Tube Non Metallic

Product Specifications

Attribute	Value
Type	GYFTS53
Moisture Resistant	Yes
Temperature Rating	-40°C to 90°C
Application	Underground
Jacket Material	PE
Fiber Count	72 cores

Product Description

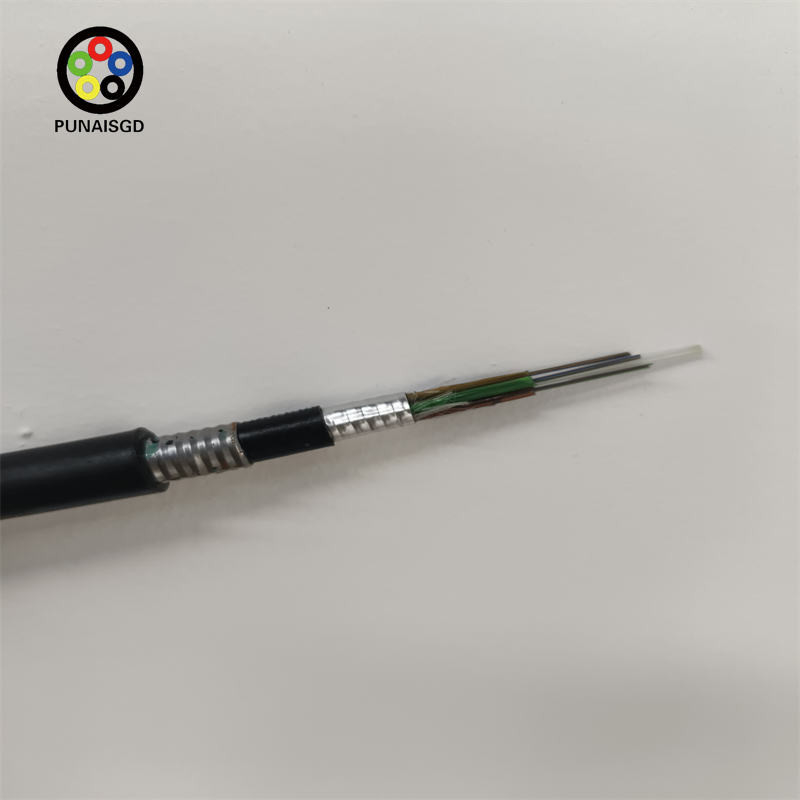

The GYFTS53 cable features an FRP rod as its central strength member. The cable core is tightly wound with a loose tube and filler rope to form a compact, round structure, with water-blocking filler filling any gaps. A plastic-coated steel strip is spirally wrapped and then sheathed in polyethylene, finished by longitudinal wrapping of a double-sided plastic-coated steel strip with an additional polyethylene sheath.

Key Features

Outstanding mechanical performance and temperature resistance
High-strength, hydrolysis-resistant tube construction
Unique filling compound for fiber optic security
UV-resistant polyethylene sheath
Withstands significant compression, suitable for duct and burial
Single steel wire central strength anchor
Special filling compound for fiber optic protection
Fully filled to eliminate air pockets
Water-blocking tape prevents sinking during vertical installation

Technical Parameters

Fiber count	Structure	Fibers per tube	Loose tube diameter(mm)	CSM diameter/pad diameter (mm)	Thickness of inner jacket (mm)	Thickness of outer jacket (mm)	Cable diameter(mm)	Cable Weight(kg/km)
4	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
6	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
8	1+6	4	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
12	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	164
18	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	165
24	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	165
30	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	166
36	1+6	6	1.7+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	12.8 ± 0.5	166
48	1+6	12	2.0+0.1	1.8 /1.8	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	191
60	1+6	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	191
72	1+6	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	13.8 ± 0.5	192
84	1+7	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	14.7 ± 0.5	218
96	1+8	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	15.4 ± 0.5	234
108	1+9	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	16.1 ± 0.5	253
120	1+10	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	16.8 ± 0.5	272
132	1+11	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	17.4 ± 0.5	293
144	1+12	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	18.2 ± 0.5	317
288	1+9+15	12	2.0+0.1	2.0/2.0	0.9 ± 0.1	1.8 ± 0.1	20.1 ± 0.5	383
